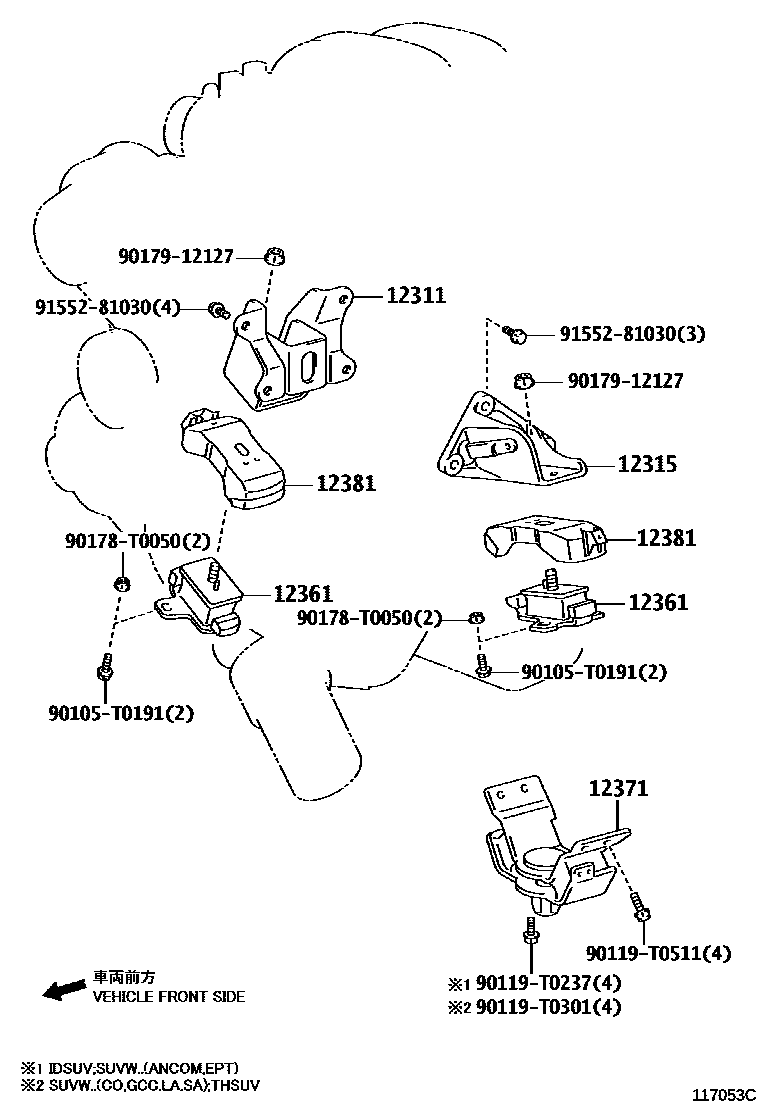

Toyota FORTUNER — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
*130
*360
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
*130
*360
12361INSULATOR, ENGINE MOUNTING, FRONT
(L)
(L)
(J)
(J)
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
main12371-0L081i1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#..RHD..(4FC,5F);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV)..(GEN,PHL,SA)201107-201608
12381STABILIZER, ENGINE MOUNTING
main12381-0L031i1KDFTV..KUN61..4FC;1KDFTV..KUN61..5F..SA;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,SA,TH,VN);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV)..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN5#..RHD..(4FC,5F)..(GEN,IDN,MA,SA,TH)201107-201611
(L)
(L)
(J)
(J)
90105T0191
main90105-T0191
90119T0237
main90119-T0237
90119T0301
main90119-T0301
90119T0511
main90119-T0511
90178T0050
main90178-T0050
9017912127
main90179-12127
9155281030
main91552-81030
12 parts on this diagram · 4 diagrams in section
MOUNTING for Toyota FORTUNER
This section contains 28 genuine Toyota parts for the MOUNTING system of the Toyota FORTUNER. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, FRONT LH.
