Toyota FORTUNER — MIRROR

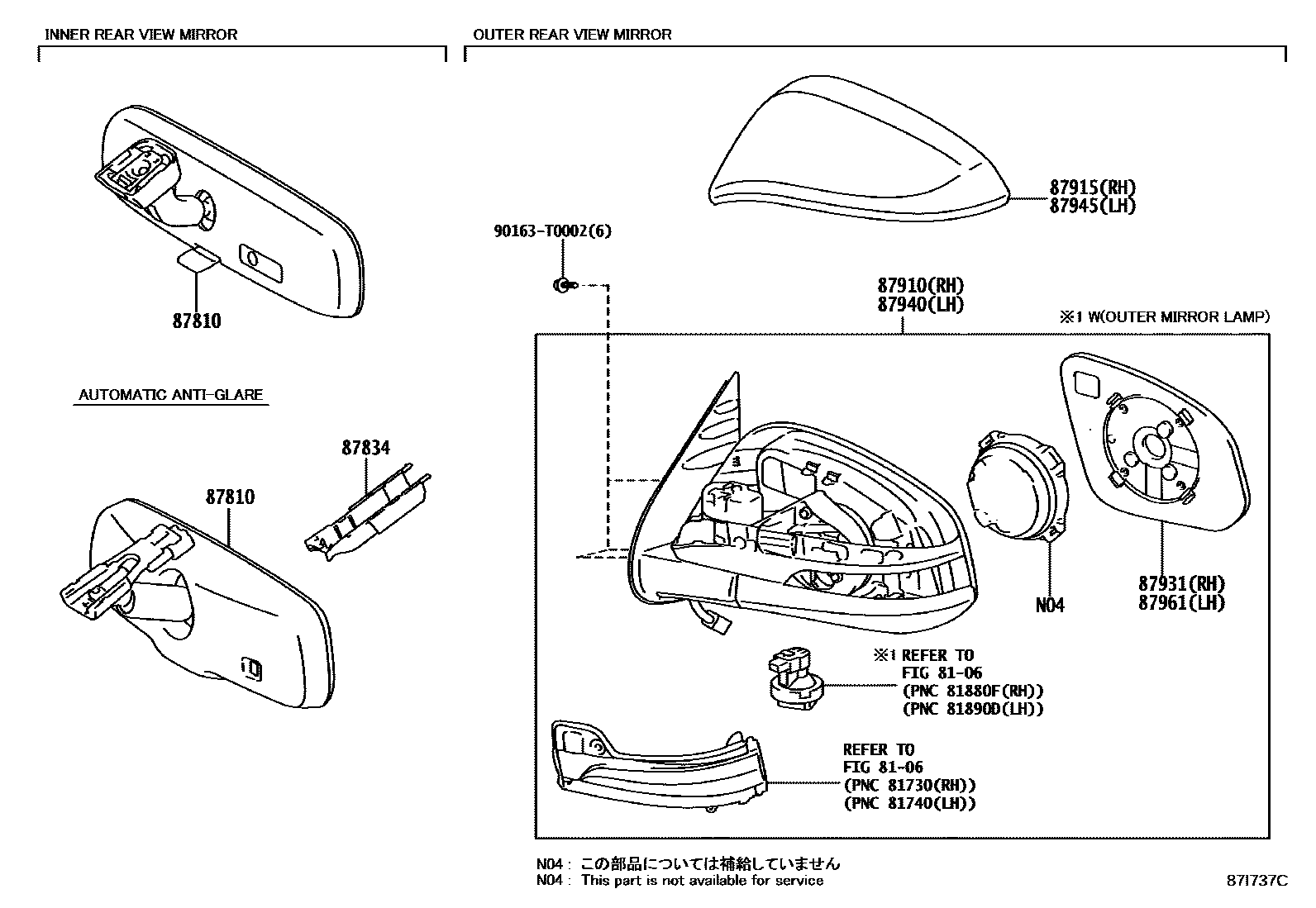

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-06041i202006-202201
main87810-0WG30i202006-202110
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0K010i202006-202110
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0KD12i202006-202008
NO PAINT REQ.
main87910-0KD13i202009-202106
NO PAINT REQ.
main87910-0KD22i202103-202203
NO PAINT REQ.
main87910-0KE11i202011-202110
NO PAINT REQ.
main87910-0KE42i202006-202008
NO PAINT REQ.; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KE43i202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KE71i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KE81i202106-202108
NO PAINT REQ.
main87910-0KE82i202009-202106
NO PAINT REQ.
main87910-0KE91i202007-202008
NO PAINT REQ.
main87910-0KE92i202009-202106
NO PAINT REQ.
main87910-0KF01i202007-202108
NO PAINT REQ.
main87910-0KF11supersedes 87910-0KE81i202106-202108
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KF12i202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KF21i202007-202008
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KF22i202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KF31i202101-202109
NO PAINT REQ.
main87910-0KG42i202006-202108
NO PAINT REQ.
main87910-0KJ31i202101-202110
NO PAINT REQ.
main87910-0KJ51i202101-202110
NO PAINT REQ.
main87910-0K751i202011-202110
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
main87910-0K810supersedes 87910-0K811i202106-202108
NO PAINT REQ.; NO PAINT REQ.,MLM PACKAGE
main87910-0K811i202009-202106
NO PAINT REQ.; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KL10i202006-202108
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-0KL50i202007-202108
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87910-YP020supersedes 87910-0K811i202007-202108
NO PAINT REQ.,MLM PACKAGE & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
main87910-YP030i202007-202108
NO PAINT REQ.,MLM PACKAGE & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
87915COVER, OUTER MIRROR, RH
main87915-0K916i202009-202109
PAINT REQ.,BLACK
main87915-0K917i202101-202110
PAINT REQ.,BLACK
main87915-0K918i202006-202201
PAINT REQ.
main87915-0K919i202011-202110
PAINT REQ.
main87915-0K920i202007-202204
PAINT REQ.
main87915-0K921i202101-202109
PAINT REQ.
87931OUTER MIRROR, RH
main87931-0K540i202007-202204
main87931-0KB80i202007-202108
main87931-0KC10i202101-202109
main87931-0KC60i202006-202203
main87931-0KD00i202006-202108
main87931-0KF80i202011-202110
main87931-0KJ30i202101-202110
main87931-0K750i202011-202110
OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0KB72i202106-202201
NO PAINT REQ.
main87940-0KB73i202009-202106
NO PAINT REQ.
main87940-0KB82i202103-202203
NO PAINT REQ.
main87940-0KC61i202011-202110
NO PAINT REQ.
main87940-0KC92i202106-202201
NO PAINT REQ.
main87940-0KC93i202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KD21i202011-202110
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KD31i202106-202108
NO PAINT REQ.
main87940-0KD32i202009-202106
NO PAINT REQ.
main87940-0KD41i202106-202204
NO PAINT REQ.
main87940-0KD42i202009-202106
NO PAINT REQ.
main87940-0KD51i202007-202108
NO PAINT REQ.
main87940-0KD61supersedes 87940-0KD31i202007-202008
NO PAINT REQ.
main87940-0KD62i202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KD71i202106-202204
NO PAINT REQ.
main87940-0KD72i202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KD81i202101-202109
NO PAINT REQ.
main87940-0KG12i202006-202108
NO PAINT REQ.
main87940-0KJ01i202101-202110
NO PAINT REQ.
main87940-0KJ21i202101-202110
NO PAINT REQ.
main87940-0KE51i202011-202110
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
main87940-0KF60supersedes 87940-0KF61i202106-202108
NO PAINT REQ.; NO PAINT REQ.,MLM PACKAGE
main87940-0KF61supersedes 87940-0KB83i202009-202106
NO PAINT REQ.; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KL10i202006-202108
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-0KL50i202007-202108
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
main87940-YP020supersedes 87940-0KF61i202007-202108
NO PAINT REQ.,MLM PACKAGE & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
main87940-YP030i202007-202108
NO PAINT REQ.,MLM PACKAGE & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
87945COVER, OUTER MIRROR, LH
main87945-0K916i202009-202109
PAINT REQ.,BLACK
main87945-0K917i202101-202110
PAINT REQ.,BLACK
main87945-0K918i202006-202201
PAINT REQ.
main87945-0K919i202011-202110
PAINT REQ.
main87945-0K920i202007-202204
PAINT REQ.
main87945-0K921i202101-202109
PAINT REQ.
87961MIRROR OUTER, LH
main87961-0K520i202007-202204
main87961-0KA40i202007-202108
main87961-0KA70i202101-202109
main87961-0KB20i202006-202203
main87961-0KB60i202006-202108
main87961-0KF40i202011-202110
main87961-0KJ00i202101-202110
main87961-0KE50i202011-202110
OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
90163T0002
main90163-T0002

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota FORTUNER

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota FORTUNER. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
