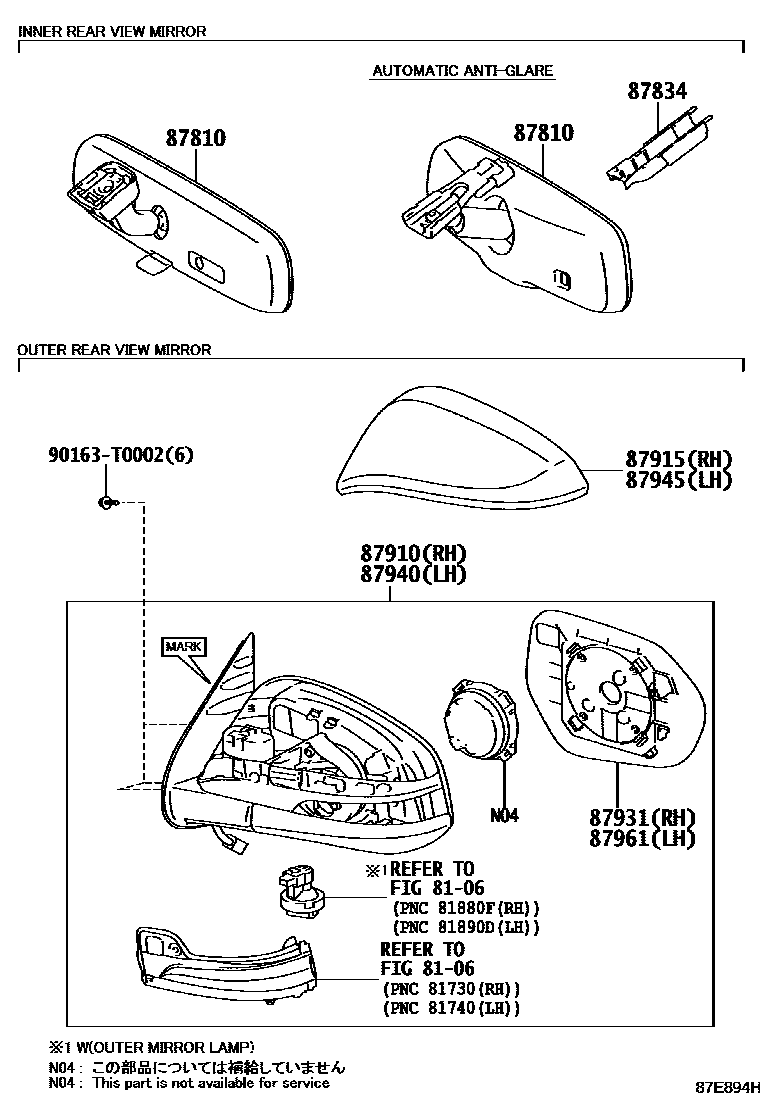

Toyota FORTUNER — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0K751iGGN155,GUN156,TGN156,166..AGTSU..M; GUN156,TGN156..H..(HDCR,HTWC)..BZAGT201710-202010
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
NO PAINT REQ.
NO PAINT REQ.,MARK=RD11
MARK=RD12
NO PAINT REQ.,MARK=RD21
NO PAINT REQ.
NO PAINT REQ.,MARK=RE41
NO PAINT REQ.
main87910-0KE71iGUN156,TGN156..AGTSU..M;GGN155,GUN156,TGN166..AGTSU..(H,M)..(HTWC,IART)201710-202010
NO PAINT REQ.
NO PAINT REQ.
main87910-0KE91iGUN156..IDNSU..L;GUN155,165,TGN156,166..LHD..(IDNSU,VNSUV)..(H,L,S)..(GEN,LA,PH,VN)201708-202008
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
main87910-0KF21iGGN155,GUN156,165,TGN156,166..LHD..(IDNSU,VNSUV)..(H,M)..(GEN,LA,PH,VN)201708-202008
NO PAINT REQ.
NO PAINT REQ.,MARK=RG41
NO PAINT REQ.,MARK=RG42
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
87915COVER, OUTER MIRROR, RH
PAINT REQ.
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP),*CR
PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
87931OUTER MIRROR, RH
main87931-0K750iGGN155,GUN156,TGN156,166..AGTSU..M; GUN156,TGN156..H..(HDCR,HTWC)..BZAGT201710-202010
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
main87931-0KF80iGUN156..H..IART;GUN156,TGN156..AGTSU..(L,M,S);GGN155,GUN165,KUN156,TGN16#..AGTSU201512-202010
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,MARK=LB71
MARK=LB72
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MARK=LC91
NO PAINT REQ.
main87940-0KD21iGUN156,TGN156..AGTSU..M;GGN155,GUN156,TGN166..AGTSU..(H,M)..(HTWC,IART)201710-202010
NO PAINT REQ.
NO PAINT REQ.
main87940-0KD41iGUN156..IDNSU..L;GUN155,165,TGN156,166..LHD..(IDNSU,VNSUV)..(H,L,S)..(GEN,LA,PH,VN)201708-202008
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
main87940-0KD71iGGN155,GUN156,165,TGN156,166..LHD..(IDNSU,VNSUV)..(H,M)..(GEN,LA,PH,VN)201708-202008
NO PAINT REQ.
main87940-0KE51iGGN155,GUN156,TGN156,166..AGTSU..M; GUN156,TGN156..H..(HDCR,HTWC)..BZAGT201710-202010
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
NO PAINT REQ.,MARK=LG11
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
87945COVER, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP),*CR
PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
87961MIRROR OUTER, LH
main87961-0KE50iGGN155,GUN156,TGN156,166..AGTSU..M; GUN156,TGN156..H..(HDCR,HTWC)..BZAGT201710-202010
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
main87961-0KF40iGUN156..H..IART;GUN156,TGN156..AGTSU..(L,M,S);GGN155,GUN165,KUN156,TGN16#..AGTSU201512-202010
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(*MIH)&W(SIDE TURN LAMP)
90163T0002
main90163-T0002
10 parts on this diagram · 1 diagram in section
MIRROR for Toyota FORTUNER
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota FORTUNER. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
