Toyota FORTUNER — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

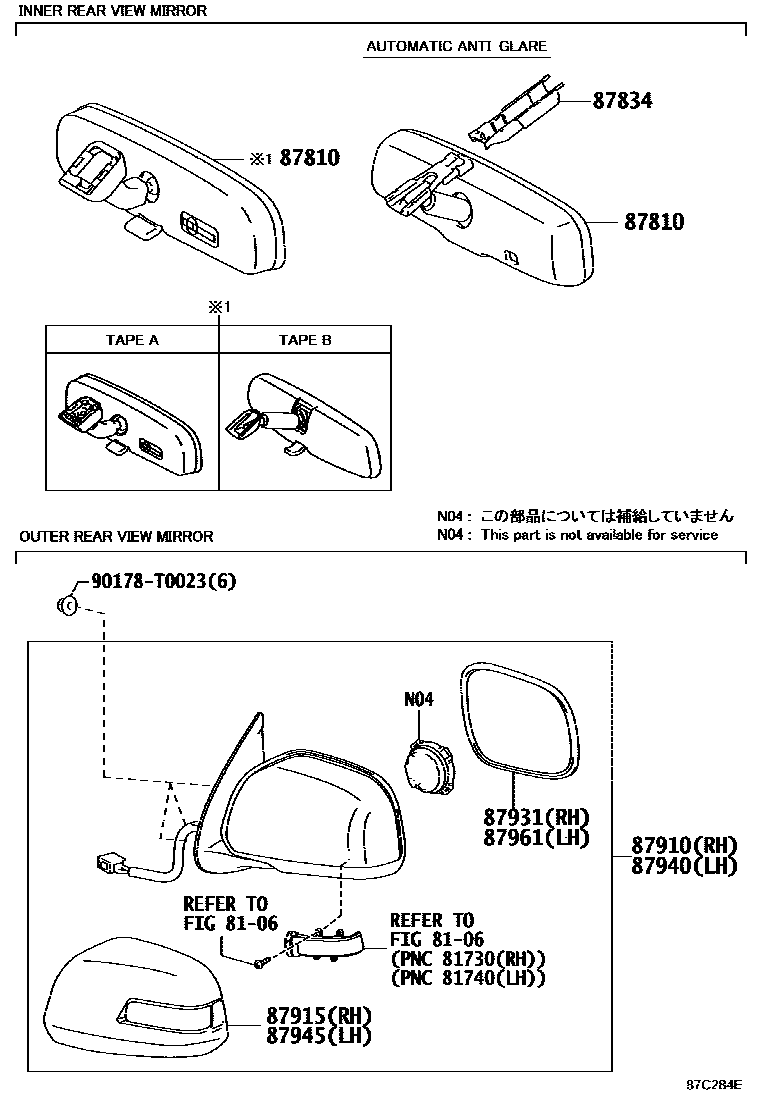

87810MIRROR ASSY, INNER REAR VIEW
main87810-06041iTGN61;KUN51..(IDSUV,SUVW)..(GEN,PHL,SA,TH);GGN50,60,KUN50,6#,LAN50,TGN51..CO,GCC,GEN,IDN,MA,PHL,SA,TH201107-201112
main87810-AA011iKUN51..5F..LA; KUN51..RHD;TGN61..5F..LA;TGN61..4FC..HTWCF;KUN51..LHD..(IDSUV,SUVW)..(GEN,PHL,SA);GGN50,60,KUN50,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,MA,PHL,PKN,SA,TH,VN201112-201305
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
PAINT REQ.
PAINT REQ.
PAINT REQ.
main87910-0K909iGGN50,KUN51,60,TGN61..LHD..IDSUV..(GEN,LA,PHL); TGN51,61..IDSUV..GCC; TGN51..IDSUV..GCC201107-201510
PAINT REQ.; PAINT REQ.,COLOMBIA SPEC; PAINT REQ.,ECUADOR SPEC
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
main87915-0K907iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN51,60,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,PHL,SA,TH)201107
PAINT REQ.
PAINT REQ.
PAINT REQ.
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
PAINT REQ.
PAINT REQ.
PAINT REQ.
main87940-0K909iGGN50,KUN51,60,TGN61..LHD..IDSUV..(GEN,LA,PHL); TGN51,61..IDSUV..GCC; TGN51..IDSUV..GCC201107-201510
PAINT REQ.; PAINT REQ.,COLOMBIA SPEC; PAINT REQ.,ECUADOR SPEC
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
main87945-0K907iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN51,60,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,PHL,SA,TH)201107
PAINT REQ.
PAINT REQ.
PAINT REQ.
87961MIRROR OUTER, LH
90178T0023
main90178-T0023
10 parts on this diagram · 2 diagrams in section
MIRROR for Toyota FORTUNER
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota FORTUNER. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
