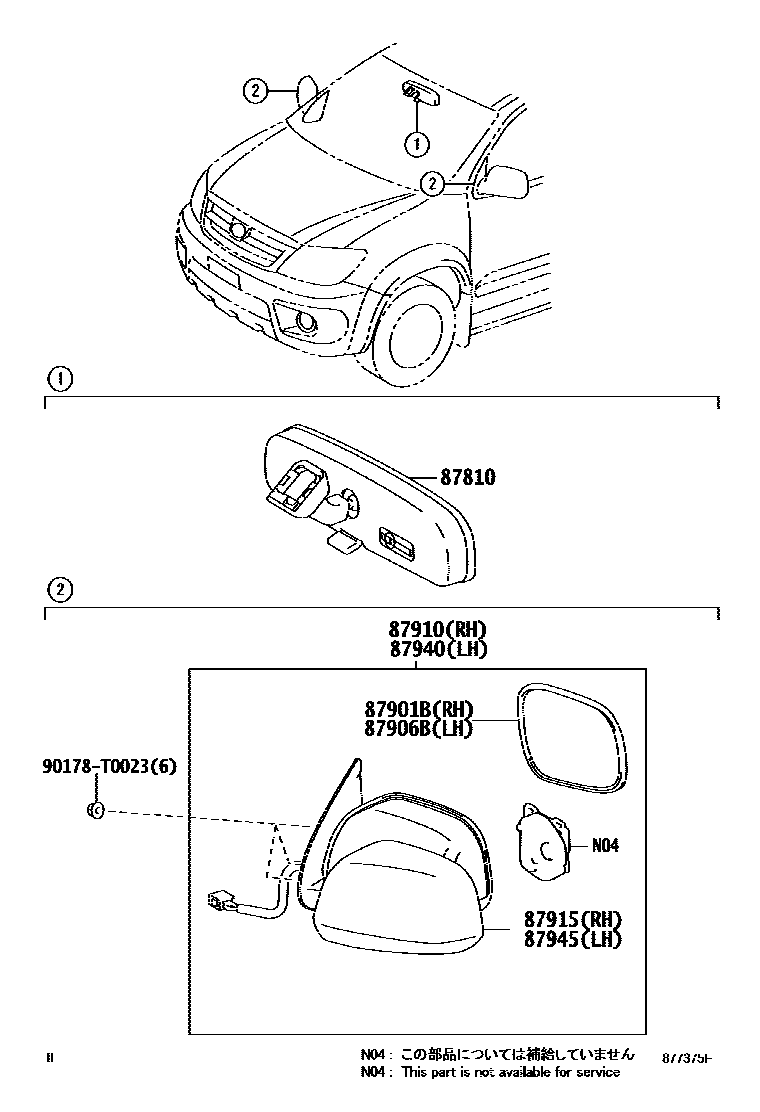

Toyota FORTUNER — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-06041iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

main87810-0W110iGGN50..LA;KUN51..GEN,LA200808-201001

main87810-0W111iGGN50..LA;KUN51..LHD..(GEN,LA)201002-201204

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-0K070supersedes 87931-0K010iGGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)200501-200810

main87931-0K130iKUN61,TGN61..5F..LA200810-201109

main87931-0K160supersedes 87931-0K150iKUN50,TGN51..MA;TGN51,61..IDSUV..IDN200508-200809

main87931-0K570iKUN51..IND200908-201201

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-0K050supersedes 87961-0K010iGGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)200501-200810

main87961-0K110iGGN50,60..ANCOM201008-201109

main87961-0K140supersedes 87961-0K130iKUN60,TGN51,61..IDSUV..IDN200808-201007

main87961-0K550iKUN51..IND200908-201201

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0K061iGGN50,60,KUN51,6#,LAN50,TGN51,61..RHD..(IDN,SA,TH)200501-200607

PLATED

main87910-0K062iKUN61..SA;GGN50,60,KUN51,60,LAN50,TGN51,61..RHD..SUVW..(IDN,SA,TH)200608-200810

PLATED

main87910-0K081supersedes 87910-0K021iKUN51,60,LAN50,TGN51,61..LHD..(PHL,SA)200504-200607

PLATED

main87910-0K082iKUN60,TGN51..VN200808-200909

TYPE A:REFER ILLUST.

main87910-0K141iGGN50,60..ANCOM200812-201109

TYPE A:REFER ILLUST.

main87910-0K142iGGN50,60..ANCOM201008-201204

TYPE B:REFER ILLUST.

main87910-0K200iKUN61,TGN61..LA200509-200810

NO PAINT REQ.

main87910-0K201iKUN61,TGN61201109-201110

TYPE B:REFER ILLUST.

main87910-0K270iTGN51..MA200508-200809

PLATED

main87910-0K280iKUN50200508-200609

NO PAINT REQ.

sub87910-0K281

main87910-0K300iKUN50200609-200809

NO PAINT REQ.

main87910-0K360iTGN51,61..IDSUV..IDN200610-200808

PLATED

main87910-0K420iGGN50,60..5FC..SA;KUN51,6#,TGN51,61..RHD..SUVW..(IDN,SA,TH)200808-200812

PLATED

main87910-0K421iGGN50,60,KUN51,6#,TGN51,61..RHD..SUVW..(IDN,SA,TH)200901-201006

TYPE A:REFER ILLUST.

main87910-0K422iGGN50,60,KUN51,6#,TGN51,61..RHD..SUVW..(IDN,SA,TH)201006-201007

TYPE B:REFER ILLUST.

main87910-0K423iGGN50,60,KUN51,6#,TGN51,61..RHD..SUVW..(GEN,IDN,SA,TH)201008-201108

PLATED

main87910-0K430iKUN50,TGN51..MA200809-201008

PLATED

main87910-0K432iKUN50,TGN51..MA201008-201109

PLATED

main87910-0K440iGGN50,60,KUN51..LHD..(GEN,LA,SA)200808-200907

PLATED

main87910-0K441iGGN50,60,KUN51..LHD..(GEN,LA,PHL,SA)200908-201006

main87910-0K442iGGN50,60,KUN51..LHD..(GEN,LA,PHL,SA)201006-201007

PLATED

main87910-0K443iGGN50,60,KUN51..LHD..(GEN,LA,PHL,SA)201008-201110

PLATED

main87910-0K520iKUN60,TGN51,61..IDSUV..IDN200808-201007

PLATED

main87910-0K521iKUN60,TGN51,61..IDSUV..IDN201007-201008

PLATED

main87910-0K522iKUN60,TGN51,61..IDSUV..IDN201009-201107

PLATED

main87910-0K550iLAN50..RHD200910-201006

TYPE A:REFER ILLUST.

main87910-0K551iLAN50..RHD201006-201108

TYPE B:REFER ILLUST.

main87910-0K560iLAN50,TGN51..LHD..SA200910-201006

TYPE A:REFER ILLUST.

main87910-0K561supersedes 87910-0K024iKUN60,LAN50,TGN51,61..LHD..(PHL,SA,VN)201006-201202

TYPE B:REFER ILLUST.

main87910-0K570iKUN51..IND200908-201006

PLATED

main87910-0K571iKUN51..IND201006-201007

PLATED,TYPE A:REFER ILLUST.

main87910-0K572iKUN51..IND201008-201201

PLATED,TYPE B:REFER ILLUST.

main87910-0K083iTGN51,61..SUVW..5F..GCC201006-201008

ECUADOR SPEC,TYPE B:REFER ILLUST.

main87910-0K350iTGN51,61..IDSUV..5F200908-201008

PLATED,JORDAN SPEC

main87910-0K351supersedes 87910-0K341iTGN51,61..IDSUV..GCC201008-201107

PLATED,JORDAN SPEC

87915COVER, OUTER MIRROR, RH

main87915-0K010iGGN50,60..5FC..SA;KUN51,6#..RHD..SUVW;GGN50,TGN51,61..SUVW..(GCC,IDN,TH)200808-200812

PLATED

main87915-0K030iGGN50,60..ANCOM201008-201109

PLATED

main87915-0K040iTGN51..MA;GGN50,TGN51,61..IDSUV..(GCC,IDN)200508-200809

PLATED

main87915-0K120iLAN50,TGN51..SA200910-201202

PLATED

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0K041iGGN50,60,KUN51,6#,LAN50,TGN51,61..RHD..(IDN,SA,TH)200501-200607

PLATED

main87940-0K042iLAN50..RHD200810-200910

TYPE A:REFER ILLUST.

main87940-0K061supersedes 87940-0K021iKUN51,60,LAN50,TGN51,61..LHD..(PHL,SA)200504-200607

PLATED

main87940-0K062iGGN50,KUN51,60,LAN50,TGN51,61..LHD..(SUVW,THSUV)..(GEN,PHL,SA)200608-200810

PLATED

main87940-0K121iGGN50,60..ANCOM200812-201109

TYPE A:REFER ILLUST.

main87940-0K122iGGN50,60..ANCOM201008-201204

TYPE B:REFER ILLUST.

main87940-0K180iKUN61,TGN61..LA200509-200810

NO PAINT REQ.

main87940-0K181iKUN61,TGN61201109-201110

TYPE B:REFER ILLUST.

main87940-0K250iTGN51..MA200508-200809

PLATED

main87940-0K260iKUN50200508-200609

NO PAINT REQ.

sub87940-0K261

main87940-0K280iKUN50200609-200809

NO PAINT REQ.

main87940-0K340iTGN51,61..IDSUV..IDN200610-200808

PLATED

main87940-0K400iGGN50,60..5FC..SA;KUN51,6#,TGN51,61..RHD..SUVW..(IDN,SA,TH)200808-200812

PLATED

main87940-0K401iGGN50,60,KUN51,6#,TGN51,61..RHD..SUVW..(IDN,SA,TH)200901-201006

TYPE A:REFER ILLUST.

main87940-0K402iGGN50,60,KUN51,6#,TGN51,61..RHD..SUVW..(IDN,SA,TH)201006-201007

TYPE B:REFER ILLUST.

main87940-0K403iGGN50,60,KUN51,6#,TGN51,61..RHD..SUVW..(GEN,IDN,SA,TH)201008-201108

PLATED

main87940-0K410iKUN50,TGN51..MA200809-201008

PLATED

main87940-0K412iKUN50,TGN51..MA201008-201109

PLATED

main87940-0K420iGGN50,60,KUN51..LHD..(GEN,LA,SA)200808-200907

PLATED

main87940-0K421iGGN50,60,KUN51..LHD..(GEN,LA,PHL,SA)200908-201006

PLATED

main87940-0K422iGGN50,60,KUN51..LHD..(GEN,LA,PHL,SA)201006-201007

PLATED

main87940-0K423iGGN50,60,KUN51..LHD..(GEN,LA,PHL,SA)201008-201110

PLATED

main87940-0K500iKUN60,TGN51,61..IDSUV..IDN200808-201007

PLATED

main87940-0K501iKUN60,TGN51,61..IDSUV..IDN201007-201008

PLATED

main87940-0K502iKUN60,TGN51,61..IDSUV..IDN201009-201107

PLATED

main87940-0K530iLAN50..RHD200910-201006

TYPE A:REFER ILLUST.

main87940-0K531iLAN50..RHD201006-201108

TYPE B:REFER ILLUST.

main87940-0K540iKUN60,TGN51..VN200909-201006

TYPE A:REFER ILLUST.

main87940-0K541supersedes 87940-0K024iKUN60,LAN50,TGN51,61..LHD..(PHL,SA,VN)201006-201202

TYPE B:REFER ILLUST.

main87940-0K550iKUN51..IND200908-201006

PLATED,TYPE A:REFER ILLUST.

main87940-0K551iKUN51..IND201006-201007

PLATED,TYPE B:REFER ILLUST.

main87940-0K552iKUN51..IND201008-201201

PLATED

main87940-0K063iTGN51,61..SUVW..5F..GCC201006-201008

ECUADOR SPEC,TYPE B:REFER ILLUST.

main87940-0K330iTGN51,61..IDSUV..5F200908-201008

PLATED,JORDAN SPEC

main87940-0K331supersedes 87940-0K321iTGN51,61..IDSUV..GCC201008-201107

PLATED,JORDAN SPEC

87945COVER, OUTER MIRROR, LH

main87945-0K010iKUN60,TGN51..VN200808-200909

PLATED

main87945-0K030iGGN50,60..ANCOM201008-201109

PLATED

main87945-0K040iKUN50,TGN51..4FC..MA;GGN50,KUN60,TGN51,61..IDSUV..(GCC,IDN)200808-201109

PLATED

main87945-0K120iLAN50,TGN51..SA200910-201202

PAINT REQ.

90178T0023

main90178-T0023

8 parts on this diagram · 2 diagrams in section
