Toyota FORTUNER — HEATING & AIR CONDITIONING - COMPRESSOR

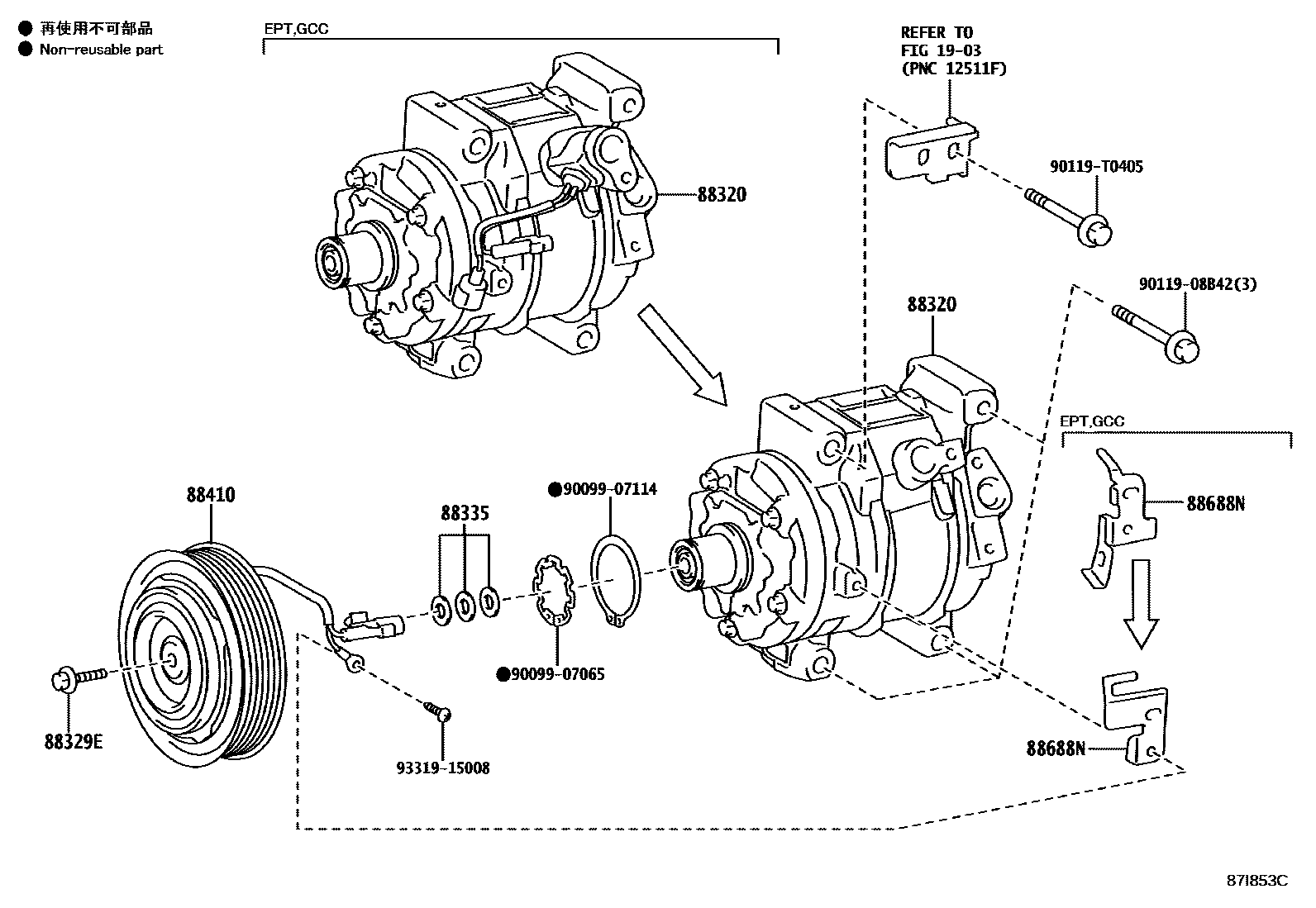

Parts diagram

1903ALTERNATOR

→ Go to FIG 19-03

88320COMPRESSOR ASSY, COOLER

main88320-0K540i202006-202110

main88320-0K560i202006-202203

main88320-0K570i202006-202203

main88320-0K640i202006-202108

88329EBOLT, COMPRESSOR, NO.1

main90099-04349i202006-202204

88335GASKET KIT, OVERHAUL

main88335-14020i202006-202110

88410CLUTCH ASSY, MAGNET

main88410-0K600i202006-202204

main88410-0K610i202007-202204

main88410-0K620i202007-202110

main88410-0K630i202006-202108

main88410-0K631i202108-202203

main88410-0K680i202006-202108

main88410-0K820i202006-202203

main88410-0K830i202007-202108

88688NBRACKET, COOLER

main88688-0K280i202006-202204

main88849-0K010i202006-202204

NO.1

main88849-0K020i202006-202204

NO.2

main88849-0K030i202006-202203

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

90119T0405

main90119-T0405

9331915008

main93319-15008

11 parts on this diagram · 6 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota FORTUNER

This section contains 25 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota FORTUNER. Key components include: ALTERNATOR, COMPRESSOR, W/MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, BOLT, COMPRESSOR, NO.1, GASKET KIT, OVERHAUL.
