Toyota FORTUNER — HEADLAMP
81110HEADLAMP ASSY, RH
main81110-0K470iTGN51..5F..SA;KUN60..LHD..GEN;TGN61..4FC..HTWCF;KUN60,TGN61..SUVW..PHL;KUN51,TGN61..(5F,5FC)..DLX201107-201510
HEADLAMP-HALOGEN
MARK = 11
MARK = 11
main81110-0K510iKUN60,TGN61..LHD..(GEN,PHL); TGN51..VN;TGN61..4FC..HTWC..LA;GGN50,60,KUN51,LAN50..LHD..SR..(ANCOM,CO,GCC,GEN,LA,PHL,SA)201107-201401
HEADLAMP-DISCHARGE
main81110-0K511supersedes 81110-0KD40iTGN61..4FC..HTWC..LA;GGN50,60,KUN51..LHD..SR..(ANCOM,CO,GCC,GEN,LA)201401
MARK = 17
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13046×2iTGN51..5F..SA;GGN50,60,KUN5#,6#,LAN50,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN201107
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81116CBRACKET, HEADLAMP, RH
main81116-0K460iTGN51..5F..SA;GGN50,60,KUN5#,6#,LAN50,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN201107
81135UNIT ASSY, HEADLAMP, RH
main81130-0K460iTGN51..GEN,PKN;TGN51,61..SUVW..IDN;KUN60..RHD..IDSUV..GEN;KUN60..RHD..SUVW..(GEN,IDN)201107-201609
main81130-0K470iTGN51..5F..SA;KUN60..LHD..GEN;TGN61..4FC..HTWCF;KUN60,TGN61..SUVW..PHL;KUN51,TGN61..(5F,5FC)..DLX201107-201510
main81130-0K490supersedes 81145-0K500iKUN51..4FC..TH;KUN51..RHD..IDSUV;KUN51..SUVW..5F..(GEN,TH); TGN61..GEN;KUN61..4FC..TH201107-201510
HEADLAMP-HALOGEN
MARK = 11
HEADLAMP-DISCHARGE
MARK = 17
81150HEADLAMP ASSY, LH
main81150-0K460iTGN51..GEN,PKN;TGN51,61..SUVW..IDN;KUN60..RHD..IDSUV..GEN;KUN60..RHD..SUVW..(GEN,IDN)201107-201609
main81150-0K470iTGN51..5F..SA;KUN60..LHD..GEN;TGN61..4FC..HTWCF;KUN60,TGN61..SUVW..PHL;KUN51,TGN61..(5F,5FC)..DLX201107-201510
HEADLAMP-HALOGEN
MARK = 11
MARK = 11
main81150-0K510iKUN60,TGN61..LHD..(GEN,PHL); TGN51..VN;TGN61..4FC..HTWC..LA;GGN50,60,KUN51,LAN50..LHD..SR..(ANCOM,CO,GCC,GEN,LA,PHL,SA)201107-201401
HEADLAMP-DISCHARGE
HEADLAMP-DISCHARGE
MARK = 17
81156ABRACKET, HEADLAMP, LH
main81156-0K460iTGN51..5F..SA;GGN50,60,KUN5#,6#,LAN50,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN201107
81175UNIT ASSY, HEADLAMP, LH
main81170-0K470iTGN51..5F..SA;KUN60..LHD..GEN;TGN61..4FC..HTWCF;KUN60,TGN61..SUVW..PHL;KUN51,TGN61..(5F,5FC)..DLX201107-201510
HEADLAMP-HALOGEN
MARK = 11
HEADLAMP-DISCHARGE
MARK = 17
81195SCREW, HEADLAMP
main90075-02056×4iTGN51..5F..SA;GGN50,60,KUN5#,6#,LAN50,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN201107
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15021×2iTGN51..5F..SA;GGN50,60,KUN5#,6#,LAN50,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN201107
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
main90075-60028×2iTGN51..5F..SA;GGN50,60,KUN5#,6#,LAN50,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN201107
81610FBULB(FOR CLEARANCE LAMP)
main99132-12050×2iTGN51..5F..SA;GGN50,60,KUN5#,6#,LAN50,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN201107
12V 5W
81615DSOCKET, CLEARANCE LAMP
main90075-60077×2iTGN51..5F..SA;GGN50,60,KUN5#,6#,LAN50,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN201107
9010506298
main90105-06298
90105T0151
main90105-T0151
90159T0019
main90159-T0019
90189T0007
main90189-T0007

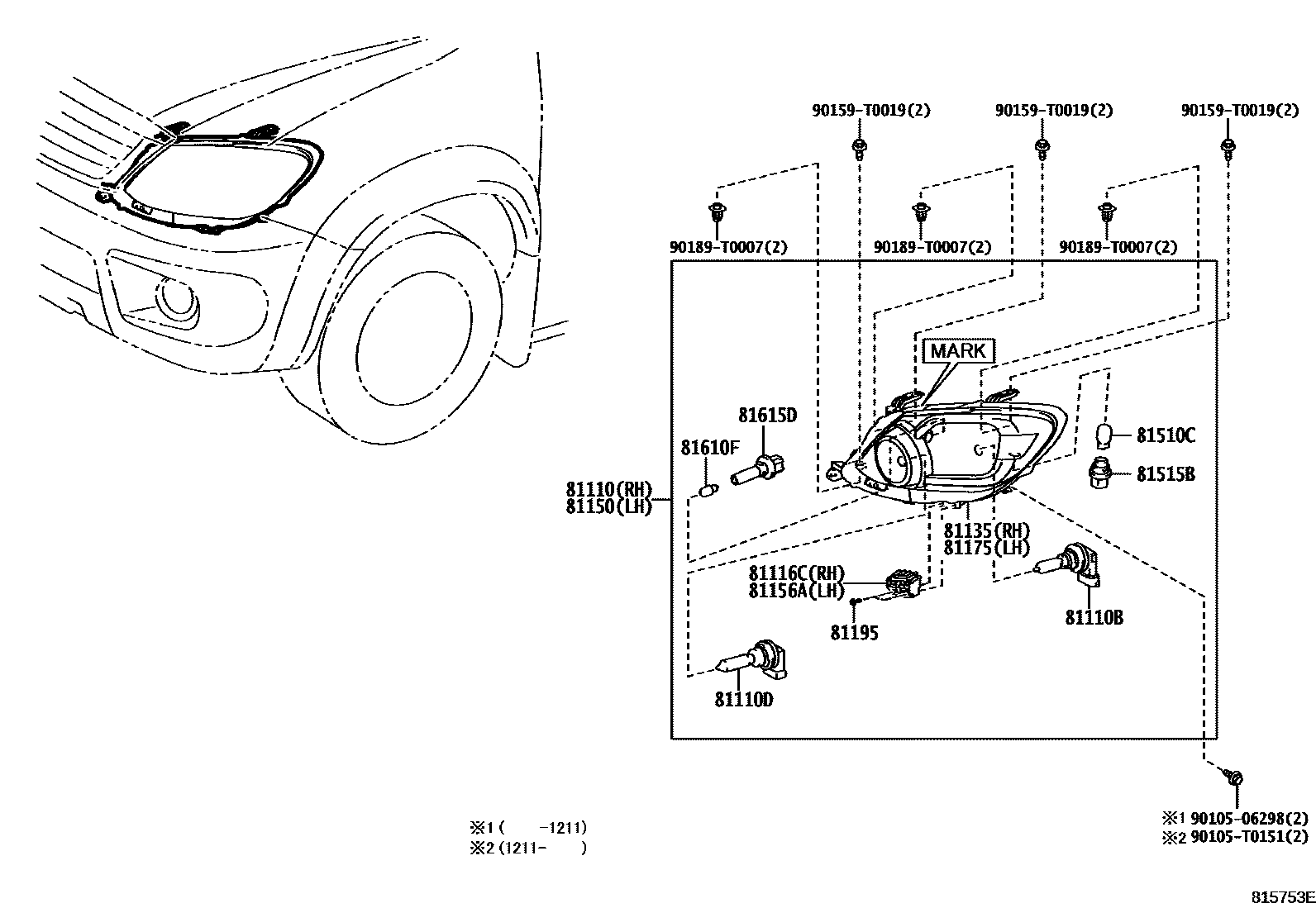

17 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota FORTUNER
This section contains 21 genuine Toyota parts for the HEADLAMP system of the Toyota FORTUNER. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
