Toyota FORTUNER — FRONT SPRING & SHOCK ABSORBER

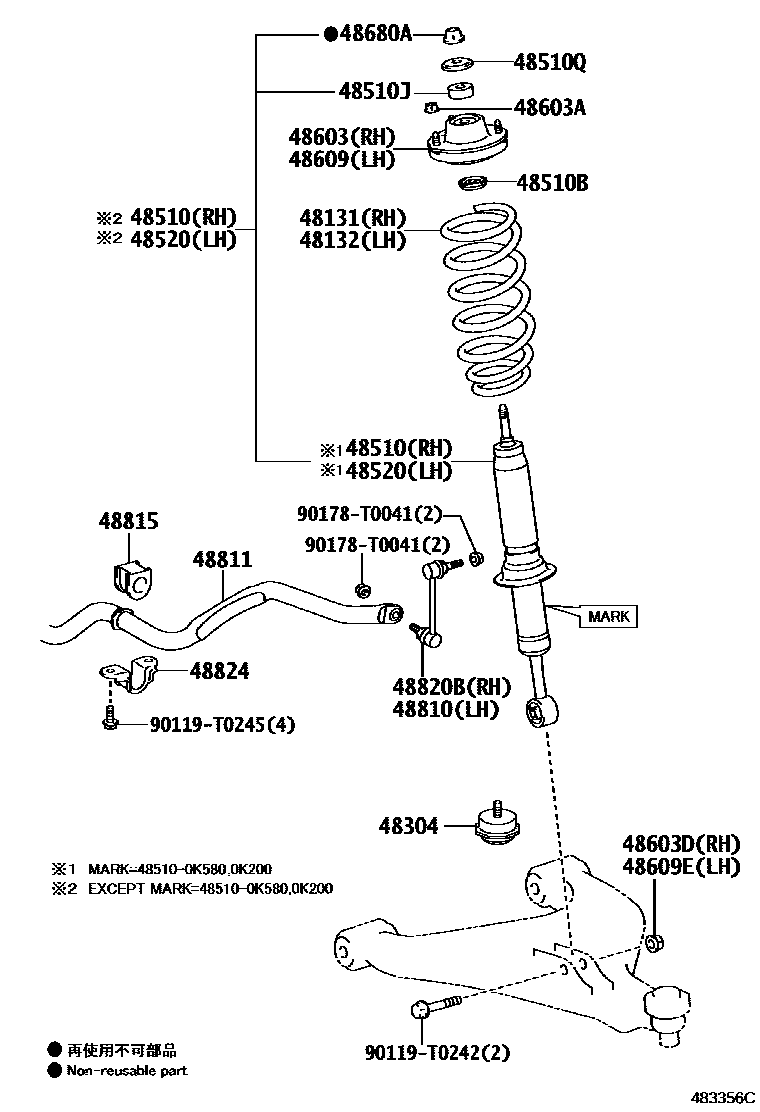

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-0K500i201107-201612
main48131-0K520i201108-201512
main48131-0K630i201109-201601
main48131-0K640i201109-201601
main48131-0K710i201204
main48131-0KA21i201107-201611
main48131-0KA31i201107-201703
main48131-0KA41i201107-201608
main48131-0KA60i201108-201512
main48131-0KA70i201108-201512
main48131-0KA80i201110-201510
main48131-0KA90i201111-201510
main48131-0KB00i201110-201510
main48131-0KB80i201204
main48131-0KB90i201110-201510
main48131-0KD30i201107-201510
main48131-0KD40i201107-201510
main48131-0KD50i201107-201510
48132SPRING, FRONT COIL, LH
main48131-0K500i201107-201612
main48131-0K520i201108-201512
main48131-0K630i201109-201601
main48131-0K640i201109-201601
main48131-0K710i201204
main48131-0KA21i201107-201611
main48131-0KA31i201107-201703
main48131-0KA41i201107-201608
main48131-0KA60i201108-201512
main48131-0KA70i201108-201512
main48131-0KA80i201110-201510
main48131-0KA90i201111-201510
main48131-0KB00i201110-201510
main48131-0KB80i201204
main48131-0KB90i201110-201510
main48131-0KD30i201107-201510
main48131-0KD40i201107-201510
main48131-0KD50i201107-201510
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
main48304-0K040i201107-201703
main48304-0K050i201110
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-09J30i201204
MARK 48510-0K370
main48510-09J40i201107-201703
MARK 48510-0K190
main48510-09K60i201109-201601
MARK 48510-0K340
main48510-09K70i201110-201212
MARK 48510-0K210
main48510-09K71i201212-201510
MARK 48510-0K211
main48510-09V00i201107-201510
MARK 48510-0K470
main48510-0K200i201204-201512
MARK 48510-0K200
main48510-0K580i201108-201512
MARK 48510-0K580
main48510-8Z028i201107-201510
MARK 48510-0K610
main48510-8Z081i201210-201304
MARK 48510-0K670
main48510-8Z084i201210-201304
MARK 48510-0K640
main48510-8Z085i201210-201304
MARK 48510-0K650
main48510-8Z086i201210-201303
MARK 48510-0K660
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
main90948-T2003i201107-201703
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
main90948-T1001i201107-201703
main90948-T1014i201409-201510
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
main90948-T2004i201107-201703
48520ABSORBER ASSY, SHOCK, FRONT LH
main48510-09J30i201204
MARK 48510-0K370
main48510-09J40i201107-201703
MARK 48510-0K190
main48510-09K60i201109-201601
MARK 48510-0K340
main48510-09K70i201110-201212
MARK 48510-0K210
main48510-09K71i201212-201510
MARK 48510-0K211
main48510-09V00i201107-201510
MARK 48510-0K470
main48510-0K200i201204-201512
MARK 48510-0K200
main48510-0K580i201108-201512
MARK 48510-0K580
main48510-8Z028i201107-201510
MARK 48510-0K610
main48510-8Z081i201210-201304
MARK 48510-0K670
main48510-8Z084i201210-201304
MARK 48510-0K640
main48510-8Z085i201210-201304
MARK 48510-0K650
main48510-8Z086i201210-201303
MARK 48510-0K660
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-0K040i201107-201703
main48609-0K050i201110
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-T0050i201107-201703
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90178-T0048i201107-201703
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-0K040i201107-201703
main48609-0K050i201110
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90178-T0048i201107-201703
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main90177-T0015i201405-201703
(L)
main94188-01241i201405-201703
(J)
main94188-01241i201107-201405
48810LINK ASSY, FRONT STABILIZER, LH
main48810-0K010i201107-201703
main48810-0K020i201110
48811BAR, STABILIZER, FRONT
main48811-0K050i201107-201703
main48811-0K070i201110
main48811-0K100i201108-201512
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-0K010i201107-201703
main48815-0K020i201107-201409
main48815-0K040i201110
main48815-0K080i201302-201608
main48815-0K130i201409-201510
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-0K030i201107-201703
main48820-0K040i201110
48824BRACKET, STABILIZER, FRONT
main48824-0K010i201107-201703
90119T0242
main90119-T0242
90119T0245
main90119-T0245
90178T0041
main90178-T0041

22 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER for Toyota FORTUNER

This section contains 22 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota FORTUNER. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, BUMPER SUB-ASSY, FRONT SPRING, NO.1, ABSORBER ASSY, SHOCK, FRONT RH, RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER).
