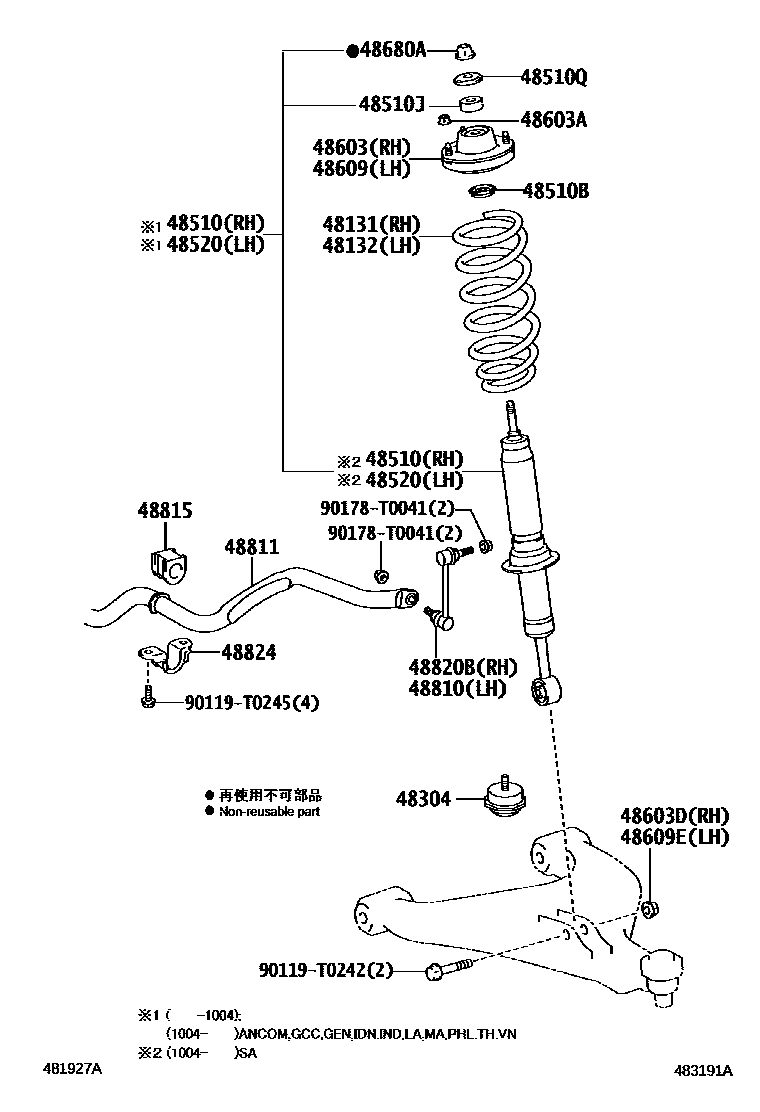

Toyota FORTUNER — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0K500iGGN50..GCC,GEN200808-201107

main48131-0K520iGGN50..SA200602-200810

main48131-0K630iTGN51..MA200508-200809

main48131-0K640iKUN50200508-200809

main48131-0K700iGGN60..ANCOM200602-200812

main48131-0K710iGGN50..ANCOM200602-200903

main48131-0KA21iTGN61..SR200808-201107

main48131-0KA31iGGN60,KUN6#,TGN51..GCC,GEN,IDN,PHL,TH,VN200808

main48131-0KA41iKUN51..GEN,PHL,TH200501-200808

main48131-0KA50iGGN60..SA200602-200810

main48131-0KA60iKUN61,TGN51..SA200602-200810

main48131-0KA70iKUN51,LAN50..SA200602-200810

main48131-0KA80iTGN61..LA200509-200810

main48131-0KA90iKUN61..LA200509-200810

main48131-0KB00iKUN51..LA200509-200810

main48131-0KB80iGGN60..ANCOM200812

main48131-0KB90iGGN50..LA200903

48132SPRING, FRONT COIL, LH

main48131-0K500iGGN50..GCC,GEN200808-201107

main48131-0K520iGGN50..SA200810-201108

main48131-0K630iTGN51..MA200508-200809

main48131-0K640iKUN50200809-201109

main48131-0K700iGGN60..ANCOM200602-200812

main48131-0K710iGGN50..ANCOM200602-200903

main48131-0KA21iTGN61..SR200504-200808

main48131-0KA31iGGN60,KUN6#,TGN51..GCC,GEN,IDN,PHL,TH,VN200808

main48131-0KA41iKUN51..GEN,IND,PHL,TH200808

main48131-0KA50iGGN60..SA200602-200810

main48131-0KA60iGGN60,KUN61,TGN51..SA200810-201108

main48131-0KA70iKUN51,LAN50..SA200602-200810

main48131-0KA80iTGN61..LA200509-200810

main48131-0KA90iKUN61..LA200810

main48131-0KB00iKUN51..LA200810

main48131-0KB80iGGN60..ANCOM200812

main48131-0KB90iGGN50..LA200903

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K040×2iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200808

sub48304-0K041

main48304-0K050×2iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

sub48304-0K041

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09J30iGGN50,60..ANCOM200812-201204

MARK 48510-0K370

main48510-09J40iGGN50,60,KUN51,60,TGN51,61..GCC,GEN,PHL,VN200808-201202

MARK 48510-0K190

main48510-09J50iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

MARK 48510-0K200

main48510-09K60iKUN50,TGN51..MA200809-201109

MARK 48510-0K340

main48510-09K70iKUN51,61,TGN61..LA200509-200810

MARK 48510-0K210

sub48510-09K71

main48510-09V00iKUN60..4FC..IDN;KUN51,6#,TGN61..TH200808-201107

MARK 48510-0K470

main48510-0K440iGGN50,60,KUN51,61,LAN50,TGN51..SA201004-201007

MARK 48510-0K440

main48510-0K580iGGN50,60,KUN51,61,LAN50,TGN51..SA201008-201108

MARK 48510-0K580

main48510-8Z007iGGN50,60,KUN51,61,LAN50,TGN51..SA200910-201004

MARK 48510-0K440

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003×2iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1001×2iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004×2iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-09J30iGGN50,60..ANCOM200602-200903

MARK 48510-0K370

main48510-09J40iGGN50,KUN51,60,TGN51,61..GCC,GEN,IDN,PHL,TH200501-200808

MARK 48510-0K190

main48510-09J50iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

MARK 48510-0K200

main48510-09K60iKUN50,TGN51..MA200508-200809

MARK 48510-0K340

main48510-09K70iKUN51,61,TGN61..LA200509-200810

MARK 48510-0K210

sub48510-09K71

main48510-09V00iTGN51,61..IDN;KUN60..5F..IDN200908-201107

MARK 48510-0K470

main48510-0K440iGGN50,60,KUN51,61,LAN50,TGN51..SA201004-201007

MARK 48510-0K440

main48510-0K580iGGN50,60,KUN51,61,LAN50,TGN51..SA201008-201108

MARK 48510-0K580

main48510-8Z007iGGN50,60,KUN51,61,LAN50,TGN51..SA200910-201004

MARK 48510-0K440

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K040iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200808

main48609-0K050iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050×6iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K040iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

main48609-0K050iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94188-01241×2iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

main48810-0K020iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

48811BAR, STABILIZER, FRONT

main48811-0K050iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

(L)

main48811-0K070iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

main48811-0K100iGGN50,60,KUN51,61,LAN50,TGN51..SA200611-200810

main48811-71010iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

(J)

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K010×2iGGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);GGN50..(SUVW,THSUV)..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN)200808

main48815-0K020×2iGGN50,TGN51,61..IDSUV200610-200808

sub48815-0K130

main48815-0K040×2iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K030iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

main48820-0K040iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

48824BRACKET, STABILIZER, FRONT

main48824-0K010×2iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

22 parts on this diagram · 1 diagram in section
