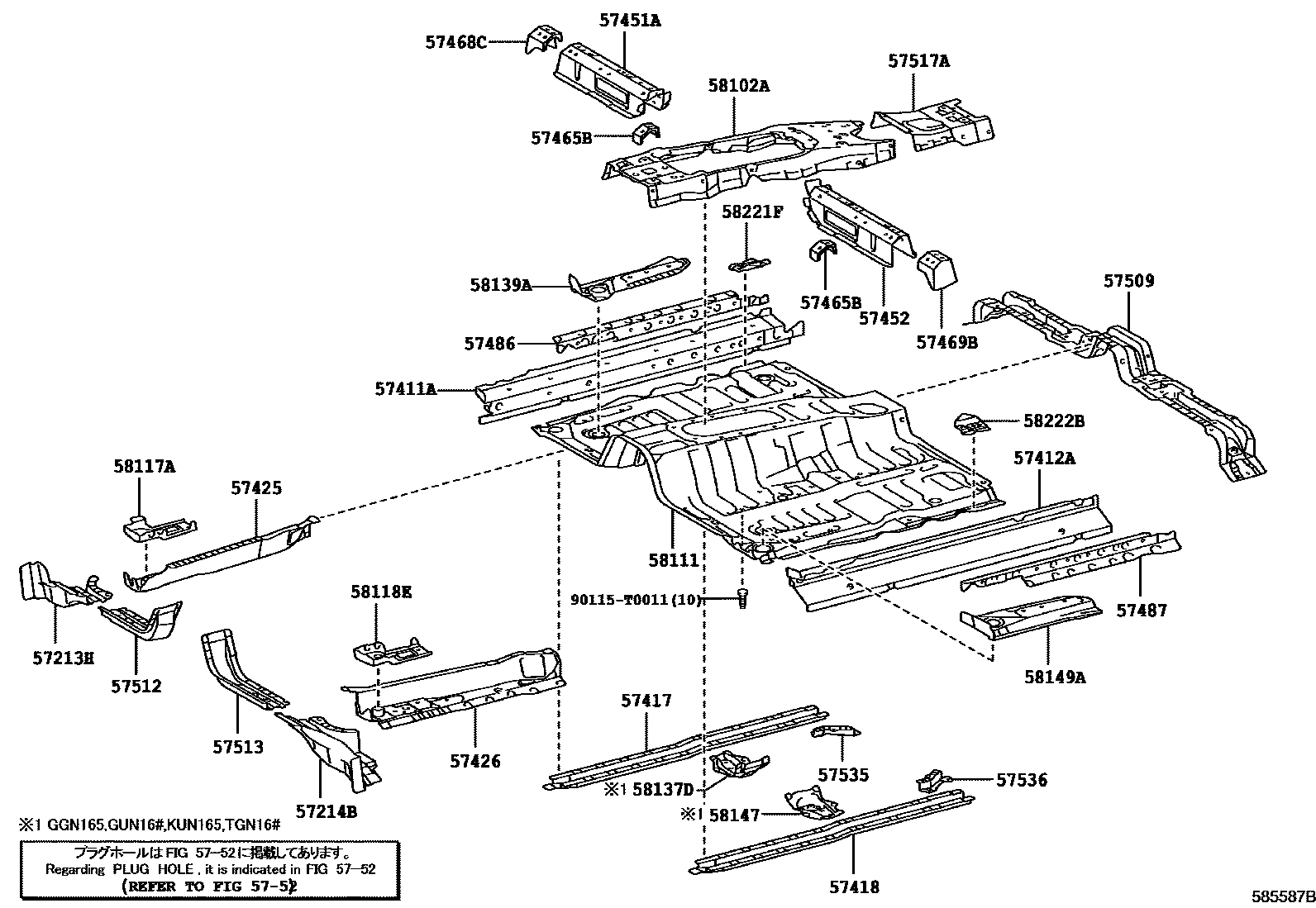

Toyota FORTUNER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SHIFT LEVER BOOT 0003 1SIDE STEP

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-KK010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-KK010iGUN156,166,TGN166..IND201507-202012

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-KK010iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main57411-KK020iGUN156,166,TGN166..IND202002-202012

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-KK010iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main57412-KK020iGUN166,TGN166..M..IND201507-202012

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iGUN156,166,TGN166..IND201507-202012

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K010iGUN165..6FC..TH;GUN156..(H,L)..IART;GUN165..6FC..L..GCC;TGN166..L..(GEN,SA);GUN156..AGTSU..6F..LA;TGN156..(L,M)..(GEN,KZS);GUN165..GEN,IDN,LA,MA,PH,SA,VN;GUN156,TGN201507-202001

main57418-0K011iGUN156,166,TGN166..IND202002-202012

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-KK010iGUN156,166,TGN166..IND201507-202012

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-KK010iGUN156,166,TGN166..IND201507-202012

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-KK010iLAN155..S;TGN166..L..SA;GUN156..RHD..SA;GGN155,GUN16#,KUN156,TGN156..SA201703-202104

main57451-KK020iGUN156,166,TGN166..IND201610-202012

main57451-KK030iKUN165;TGN166..S..SA201603-201709

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-KK010iLAN155..S;TGN166..L..SA;GUN156..RHD..SA;GGN155,GUN16#,KUN156,TGN156..SA201703-202104

main57452-KK020iKUN165;TGN166..S..SA201603-201709

main57452-KK030iGUN156,166,TGN166..IND201807-202012

57465BBRACKET, FRONT SEAT, INNER

main57465-KK010×2iGGN155,TGN156,166..EPT201507-202101

57468CBRACKET, FRONT SEAT, OUTSIDE, RH

main57468-KK010iGUN156,166,TGN166..IND201507-201803

main57468-KK020iGUN156,166,TGN166..IND201804-202012

57469BBRACKET, FRONT SEAT, OUTSIDE LH

main57469-KK010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

main57469-KK020iGUN156,166,TGN166..IND201804-202012

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-KK010iGUN156,166,TGN166..IND201507-202012

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-KK010iGUN156,166,TGN166..IND201507-202012

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-KK010iGGN165,GUN16#,KUN165,TGN16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

main57509-KK020iGUN156..IND201507-201807

main57509-KK030iGUN166,TGN166..IND201807-202012

main57509-KK040iGUN156..IND201807-202012

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K030iGUN156,166,TGN166..IND201507-202012

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iGGN155,TGN156,166..EPT201507-202101

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-KK010iGUN156,16#,KUN156,TGN166..RHD..MTM201507-202012

main57517-KK020iGUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD..MTM201512-202010

main57517-KK030iGUN156,166,TGN166..6FC..IND201507-202012

main57517-KK040iGGN155,165,GUN15#,165,KUN156,TGN156,16#..LHD..ATM201512-202101

5752

57535BRACE, FRONT FLOOR, RH

main57535-KK010iGUN156,166,TGN166..IND201507-202012

57536BRACE, FRONT FLOOR, LH

main57536-KK010iGUN156,166,TGN166..IND201507-202012

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-KK010iGUN156,16#,KUN156,TGN166..RHD..MTM201507-202012

main58102-KK020iGUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD..MTM201512-202010

main58102-KK030iGUN156,166,TGN166..6FC..IND201507-202012

main58102-KK040iGGN155,165,GUN15#,165,KUN156,TGN156,16#..LHD..ATM201512-202101

58111PAN, FRONT FLOOR

main58111-KK010iGUN156,166,TGN166..MTM..IND201507-202002

sub58111-KK110

main58111-KK020iGUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD..MTM201512-202010

sub58111-KK120

main58111-KK030iGUN156,166,TGN166..6FC..IND201507-202002

sub58111-KK090

main58111-KK040iGGN155,165,GUN15#,165,KUN156,TGN156,16#..LHD..ATM201512-202101

sub58111-KK130

main58111-KK050iGUN156,166,TGN166..MTM..IND202002-202012

sub58111-KK140

main58111-KK070iGUN156,166,TGN166..6FC..IND202002-202012

sub58111-KK160

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-KK010iLAN155..S;TGN166..L..SA;GUN156..RHD..SA;GGN155,GUN16#,KUN156,TGN156..SA201703-202104

main58117-KK020iKUN165;TGN166..S..SA201603-201709

58118EBRACKET, JACK SET

main58118-KK010iGUN165..M..PH;TGN156..KZS,MA,PKN;GUN156..LHD..6F..SA;GUN155..GEN,MA,SA,TH;GUN156..GCC,GEN,PKN,VN;TGN156..(M,S)..(GCC,LA);GUN165..(MASUV,VNSUV)..(L,M);GUN156..LHD..6201512-202104

main58118-KK020iTGN166..L..SA;GGN155,GUN156,16#,KUN156,LAN155,TGN156..SA201603-201703

58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH

main58137-KK010iGUN166,TGN166..IND201507-202012

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-KK010iGUN156,166,TGN166..IND201507-202012

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-KK010iGUN166,TGN166..IND201507-202012

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-KK010iGUN156,166,TGN166..IND201507-202012

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-KK010iKUN165;TGN166..S..SA201507-202005

main58221-KK020iLAN155..S;TGN166..L..SA;GUN156..RHD..SA;GGN155,GUN16#,KUN156,TGN156..SA201703-202104

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-KK010iTGN166..L..SA;GGN155,GUN156,16#,KUN156,LAN155,TGN156..SA201507-201703

main58222-KK020iGUN156..6FC..ARL201603-201908

90115T0011

main90115-T0011

33 parts on this diagram · 3 diagrams in section
