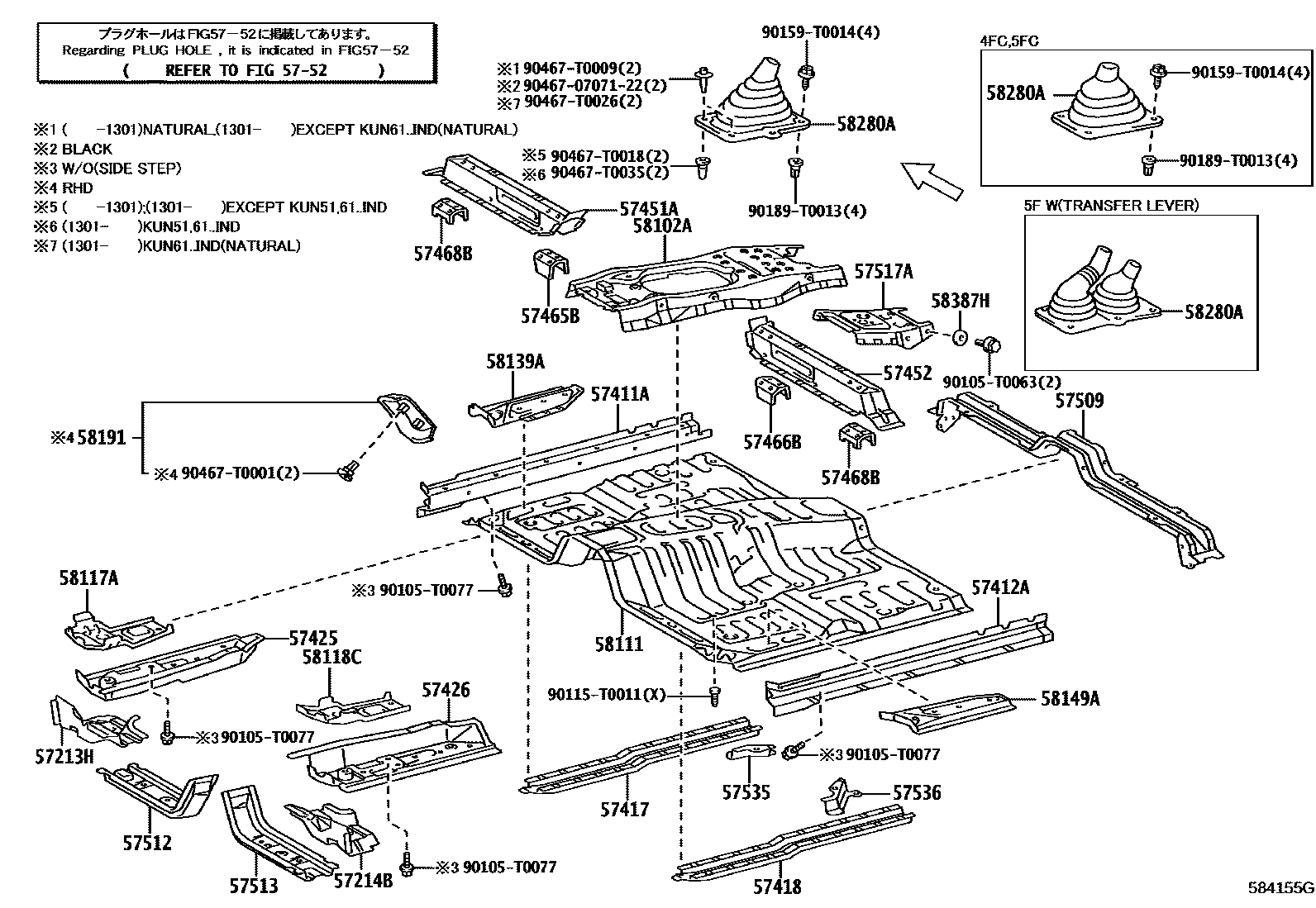

Toyota FORTUNER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FRONT FLOOR PANEL 0002 1SIDE STEP 0004 1SIDE STEP

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K010iKUN60,TGN51,61..VN201107-201611

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

main57451-0K020iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-0K020iKUN51,6#..(5F,5FC)..IND201107-201608

57465BBRACKET, FRONT SEAT, INNER

main57465-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

57466BBRACKET, FRONT SEAT, INSIDE LH

main57466-0K010iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

57468BBRACKET, FRONT SEAT, REAR

main57468-0K010×2iKUN60,TGN51,61..VN201107-201611

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-0K010iKUN51..SUVW..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)201107-201505

main57509-0K050iGGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW)..(CO,GCC,GEN,IDN,LA,PHL)201505-201609

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61..SASUV,SUVW,THSUV201107-201206

sub58151-0K030

main57512-0K030iGGN50,TGN51..EPT201206-201612

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iTGN51..PKN201107-201609

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57516-0K010iGGN50,TGN51..EPT201107-201612

main57516-0K020iGGN50,KUN51,60,LAN50,TGN51,61..LHD..5F..(CO,GCC,GEN,KZS,LA,PHL,SA)201107-201703

main57517-0K010iKUN61..4FC;KUN61..5FC..TH;GGN50,60,KUN5#,60,TGN51,61..RHD..(4FC,5FC)..(GEN,IDN,MA,PKN,SA,TH)201107-201609

main57517-0K020iKUN51,6#,LAN50..RHD..5F201107-201608

5752

57535BRACE, FRONT FLOOR, RH

main57535-0K010iTGN51..4FC..SA;KUN51..(5F,5FC)..CO;KUN61..(5F,5FC)..IND;TGN51..CO,EPT,KZS,MA,VN;KUN51..(IDSUV,SASUV)..(4FC,5F);KUN51,60..SUVW..(IND,LA,SA,VN);LAN50,TGN61..LHD..(CO,201107-201504

main57535-KK010iTGN51..KZS201505-201703

57536BRACE, FRONT FLOOR, LH

main57536-0K010iTGN51..4FC..SA;KUN51..(5F,5FC)..CO;KUN61..(5F,5FC)..IND;TGN51..CO,EPT,KZS,MA,VN;KUN51..(IDSUV,SASUV)..(4FC,5F);KUN51,60..SUVW..(IND,LA,SA,VN);LAN50,TGN61..LHD..(CO,201107-201504

main57536-KK010iTGN51..PKN201604-201609

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-0K010iKUN51,6#..5FC..IND201107-201608

main58102-0K020iKUN51,6#..5F..IND201107-201608

58111PAN, FRONT FLOOR

main58111-0K010iKUN6#..5FC..IND201107-201608

main58111-0K020iKUN51..5FC..IND201107-201608

main58111-0K030iKUN6#..5F..IND201107-201608

main58111-0K040iKUN51..5F..IND201107-201608

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-0K010iTGN51..KZS201107-201703

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-0K010iTGN51..PKN201107-201609

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-0K010iGGN50,TGN51..EPT201107-201612

58191FOOTREST, FRONT FLOOR

main58191-0K010iKUN61..5FC..TH;KUN61..4FC..(IND,TH);KUN50,LAN50,TGN51,61..RHD;KUN51,60..RHD..(IDSUV,SUVW)..(GEN,IDN,TH)201107-201609

main58191-0K020iKUN51..RHD..SASUV;GGN50,60,KUN51,6#..RHD..SA201306-201512

58280ABOOT ASSY, SHIFT LEVER

main58280-0K020iTGN61..5F201107-201510

main58280-0K030iKUN6#..5F..(GEN,IDN,PHL,SA,TH,VN)201107-201611

main58280-0K070iTGN51..RHD201107-201609

main58280-0K080iKUN5#..RHD..(4FC,5FC)201107-201608

main58280-0K090iGGN50..SA201108-201512

main58280-0K100iTGN51..VN201107-201611

main58280-0K110iKUN51..LHD..(4FC,5FC)201107-201512

main58280-0K120iGGN50..5FC..(ANCOM,CO,GCC,GEN,LA)201107

main58280-0K130iLAN50..RHD201108-201310

main58280-0K160iLAN50,TGN51..LHD..5F201107-201703

main58280-0K170iKUN51..SUVW..5F..(CO,LA)201110-201510

sub90467-07071

main58280-0K180iGGN50..5F201107-201510

main58280-0K200iKUN51..RHD..5F201107-201608

main58280-0K210iKUN51..LHD..5F..SA;KUN51..LHD..(IDSUV,SASUV,THSUV)..5F201107-201512

58387HPLATE, REAR FLOOR

main58387-0K010×2iKUN51,6#..(5F,5FC)..IND201107-201608

90105T0063

main90105-T0063

90105T0077

main90105-T0077

90115T0011

main90115-T0011

90159T0014

main90159-T0014

90189T0013

main90189-T0013

904670707122

main90467-0707122

90467T0001

main90467-T0001

90467T0009

main90467-T0009

90467T0018

main90467-T0018

90467T0026

main90467-T0026

90467T0035

main90467-T0035

40 parts on this diagram · 3 diagrams in section
