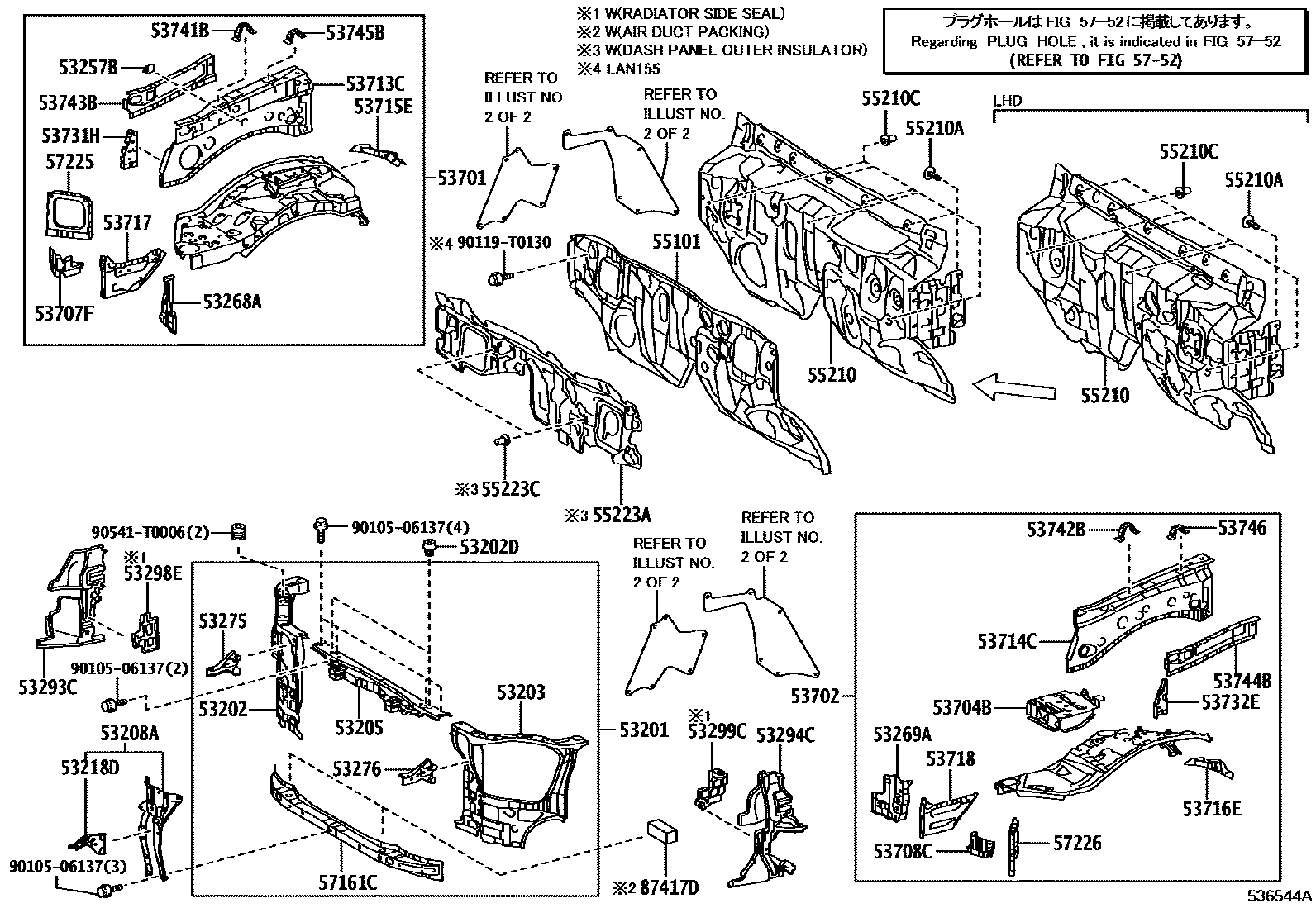

Toyota FORTUNER — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-KK040iGGN155,GUN15#,16#,TGN156,166..EPTSU,IDNSU,MASUV,VNSUV202007-202204

main53201-KK050iGGN155,GUN156,165,TGN156,16#..AGTSU202009-202201

main53201-KK060iGGN155,GUN15#,16#,TGN156,166..THSUV202006-202108

main53201-KK070iGUN156,166,TGN166..IND202101-202109

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-KK020iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

53202DCUSHION, RADIATOR SUPPORT

main53384-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-KK020iGGN155,GUN15#,16#,TGN156,166..EPTSU,IDNSU,MASUV,VNSUV202007-202204

main53205-KK040iGGN155,GUN15#,16#,TGN156,166..THSUV202006-202108

main53205-KK050iGGN155,GUN156,165,TGN156,16#..AGTSU202009-202201

main53205-KK080iGUN156,166,TGN166..IND202101-202109

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

main53208-KK080iGUN156,166,TGN166..IND202101-202109

53218DEXTENSION, HOOD LOCK BRACE

main53218-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iLAN155202006-202204

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-KK010iTGN166..EPT202006-202204

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-KK010iGUN156,TGN156,166..PKN202006-202204

53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH

main53275-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH

main53276-KK010iGUN156,TGN156,166..PKN202006-202204

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-KK260iGGN155,GUN15#,165..GCC202006-202108

main53293-KK270iGUN156,TGN156,166..PKN202006-202201

main53293-KK270iGGN155,GUN166,LAN155..EPT,PH,SA,TH;GUN15#,165..GEN,IDN,MA,PH,SA,TH,VN;TGN156,166..(EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

MLM PACKAGE

main53293-KK280iTGN166..L..GEN;TGN156..LHD..(BZAGT,GEN,LA);GUN156,TGN16#..ARL,BZAGT,IND,LA;GGN155,GUN16#..(H,L)..(GEN,IND,LA)202006-202110

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-KK260iGGN155,GUN15#,165..GCC202006-202108

main53294-KK270iGGN155,GUN166,LAN155..EPT,PH,SA,TH;GUN15#,165..GEN,IDN,MA,PH,SA,TH,VN;TGN156,166..(EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

MLM PACKAGE

main53294-KK270iGUN156,TGN156,166..PKN202006-202201

main53294-KK280iTGN166..L..GEN;TGN156..LHD..(BZAGT,GEN,LA);GUN156,TGN16#..ARL,BZAGT,IND,LA;GGN155,GUN16#..(H,L)..(GEN,IND,LA)202006-202110

53298ESEAL, RADIATOR SIDE, RH

main53298-KK010iGGN155,TGN156,16#..AGTSU202006-202204

main53298-KK030iGGN155..GCC202006-202108

53299CSEAL, RADIATOR SIDE, LH

main53299-KK010iTGN156,166..PKN202006-202204

main53299-KK030iGGN155..GCC202006-202108

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-KK100iGUN156..LHD..SA202009-202109

main53701-KK130iGUN15#,16#..RHD..SA202009-202109

main53701-KK160iLAN155202009-202109

main53701-KK170iTGN156..SA202009-202109

main53701-KK330iGUN156,165..VN202111-202204

main53701-KK390iGGN155,GUN156,165..AGTSU202006-202203

main53701-KK400iGUN15#,16#..RHD..(IDNSU,INDSU,MASUV,PKNSU,THSUV)202006-202201

main53701-KK410iTGN166..EPT202006-202204

main53701-KK420iTGN156,166..RHD202007-202201

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-KK070iGGN155,TGN166..EPT202006-202204

main53702-KK080iGUN15#,16#,TGN156,166..RHD202006-202201

main53702-KK150iGGN155,GUN156,165,TGN156,16#..AGTSU202106-202110

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-KK010iTGN166..EPT202006-202204

53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-KK020iGGN155,GUN15#,16#,TGN156,166..INDSU,MASUV,PKNSU,THSUV202006-202201

main53713-KK040iTGN166..EPT202006-202205

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

main53714-KK030iGGN155,GUN15#,16#,LAN155,TGN156,166..IDNSU,SASUV202007-202109

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iGUN156,TGN156,166..PKN202006-202204

53717PLATE, FENDER APRON, RH

main53717-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53718PLATE, FENDER APRON, LH

main53718-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53731HPATCH, FRONT FENDER APRON, RH

main53731-KK010iTGN166..EPT202006-202204

53732EREINFORCEMENT, FRONT FENDER APRON, LH

main53732-KK010iGUN156,TGN156,166..PKN202006-202204

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-KK030iGUN156,TGN156,166..PKN202006-202204

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-KK030iGUN156,TGN156,166..PKN202006-202204

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-KK010iTGN166..IDNSU,INDSU,THSUV,VNSUV;GGN155,GUN15#,16#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-KK020iGGN155,TGN166..EPT202006-202204

55101PANEL SUB-ASSY, DASH

main55101-KK050iGUN15#,165,LAN155,TGN156,166..LHD..(IDNSU,SASUV,VNSUV)..MTM202007-202204

main55101-KK080iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202204

main55101-KK090iGUN156,16#,TGN166..RHD..MTM202008-202109

main55101-KK120iGUN15#,16#,TGN156,166..RHD..6FC202006-202201

55210INSULATOR ASSY, DASH PANEL

main55210-KK130iGGN155,GUN15#,165,TGN156,166..LHD..THSUV202006-202011

main55210-KK131iGGN155,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV)202011-202203

main55210-KK150iGUN15#,16#..RHD..THSUV202006-202011

main55210-KK151iGUN15#,16#..RHD..THSUV202011-202108

main55210-KK160iGUN156,166,TGN166..IND202101-202107

main55210-KK161iGUN156,166,TGN166..IND202108-202109

main55210-KK170iGGN155,GUN15#,16#,TGN156,166..LHD..(IDNSU,VNSUV)202007-202204

main55210-KK180iGUN15#,165,TGN156,166..RHD..(IDNSU,MASUV,PKNSU)202007-202201

main55210-KK190iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202107

main55210-KK191iGGN155,GUN156,165,TGN156,16#..AGTSU202108-202110

main55210-KK210iGUN156,LAN155,TGN156..LHD..SA202009-202011

main55210-KK211iGUN156,LAN155,TGN156..LHD..SA202012-202109

main55210-KK220iGUN15#,16#..RHD..SA202009-202011

main55210-KK221iGUN15#,16#..RHD..SA202012-202109

55210ACLIP

main90467-T0004iGUN156,166,TGN166..IND202108-202109

main90467-T0004-A0iGUN156,166,TGN166..IND202006-202204

IVORY

55210CCLIP

main90467-06197iGUN156,166,TGN166..IND202101-202109

(J)

main90467-T0032iGUN156,166,TGN166..IND202101-202109

(L)

main90467-T0032iGGN155,GUN15#,16#,TGN156,16#..LHD..(AGTSU,IDNSU,VNSUV)202006-202204

55223AINSULATOR, DASH PANEL, OUTER

main55223-0K030iGUN15#,165,TGN156,166..RHD..IDNSU202007-202108

main55223-0K040iGGN155,GUN15#,16#..LHD..IDNSU;TGN156,166..LHD..IDNSU..(H,S)202007-202108

main55223-0K050iGUN156,165,TGN166..VNSUV202009-202204

main55223-KK030iGGN155,GUN156,165,LAN155,TGN156,16#..LHD..(AGTSU,SASUV)202009-202110

main55223-KK040iGUN15#,16#..RHD..SA202009-202109

main55223-KK051iTGN166..EPT;TGN156..THSUV..S;GGN155,GUN15#,165..LHD..(EPTSU,THSUV)202006-202203

main55223-KK061iGUN15#,16#,TGN156,166..RHD..(MASUV,PKNSU,THSUV)202006-202201

main55223-KK070iGUN156,166,TGN166..IND202101-202109

55223CCLIP

main90467-T0032iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

57161CMEMBER, FRONT CROSS

main57161-KK010iGGN155,GUN15#,16#,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

main57161-KK020iGUN15#,16#,LAN155,TGN156..SA202009-202109

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-KK010iGGN155,TGN166..EPT202006-202204

5752HOLE PLUG

→ Go to FIG 57-52

87417DPACKING, AIR DUCT

main87417-0K020iTGN156,16#..AGTSU202006-202204

main87417-0K040iTGN156,166..IDNSU;GGN155..IDNSU..GCC202007-202108

main87417-0K090iTGN156..MA202101-202110

9010506137

main90105-06137

90119T0130

main90119-T0130

90541T0006

main90541-T0006

49 parts on this diagram · 2 diagrams in section
