Toyota FORTUNER — FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-02040iGUN15#,LAN155..LHD..S..SA;KUN156,165,TGN156..IDNSU,PKNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,TGN166..IDNSU,PKNSU,THSUV,VNSUV201507-202104
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0K040iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
main69201-0K080iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0K040iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
main69202-0K061iGUN156..S..IART;GUN156..H..BZAGT;GUN165..VNSUV..L;TGN156,166..AGTSU..(H,M);TGN156..MASUV,PKNSU,THSUV;GUN165..MASUV,SASUV,THSUV;GUN156..RHD..(PKNSU,SASUV,THSUV);GUN1201507-202104
main69202-0K080iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
main69205-0K150-C0iGUN156,TGN168..L..BZAGT;GGN155,GUN156,165,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-202010
BLACK,TRIM0#,3#,4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027iGUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);TGN156..S..(BZAGT,GEN,KZS,PKN,SA);TGN166..BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN;TGN156..(AGTSU,201507-202104
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0K100-C0iGUN156..6F..M;TGN166..PKN,TH;TGN156..(MASUV,THSUV)..(L,M);GGN155,165,GUN165..MASUV,THSUV;GUN155..(MASUV,THSUV)..(GCC,MA);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GUN1201507-202104
BLACK,TRIM4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
main69206-0K140-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM3#,4#
BLACK,TRIM0#,3#,4#
BLACK,TRIM4#
main69206-0K150-C0iTGN156,166..IDNSU..L..GCC;GGN155,165,GUN15#,165,KUN156..IDNSU,VNSUV;TGN156,166..(IDNSU,VNSUV)..(GEN,IDN,LA,PH,VN)201601-202008
BLACK,TRIM4#
BLACK,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-0K060iGUN156..S..IART;GUN156..(AGTSU,THSUV)..H;TGN156..(AGTSU,MASUV)..(H,M);GUN156..(AGTSU,THSUV)..M..(ARL,LA);GUN15#,165,TGN166..RHD..(MA,PKN,SA,TH);GGN155,GUN166,TGN168201507-202104
PLATED
main69210-0K090iGGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(H,M);TGN156,166..(IDNSU,VNSUV)..(H,M,S)..(GEN,IDN,LA,VN)201601-202008
PLATED
PLATED
main69210-0K130iTGN166..IDNSU..GCC;GUN165..IDNSU..6F..GCC;GGN155,165,GUN155,165,TGN156..(IDNSU,VNSUV)..(5F,6FC)..(L,S)..(GCC,VN)201601-202008
PLATED
main69210-0K200iTGN166..LHD..(EPTSU,THSUV);GGN155,165,GUN155,165,TGN156..(EPTSU,PKNSU,THSUV)..(L,S)..(EPT,GCC,PKN)201601-202101
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
PAINT REQ.
PAINT REQ.
main69210-0K903iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
PAINT REQ.
main69210-0K904iGUN165,TGN156..IDNSU..L..(GEN,LA,VN);GUN15#,165,KUN156,TGN166..IDNSU..(L,S)..(GEN,IDN,LA,PH)201601-202007
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-0K250iTGN156,166..IDNSU..M..LA;TGN156,166..IDNSU..5F..GCC;GUN155,165..(IDNSU,VNSUV)..S..(GCC,VN);GUN155,165..IDNSU..(H,L,M)..(GCC,GEN,IDN,PH);GGN155,165,GUN156,KUN156..(I201601-202008
*CR,DRIVER SIDE
main69217-0K260iTGN156,166..IDNSU..M..LA;TGN156,166..IDNSU..5F..GCC;GUN155,165..(IDNSU,VNSUV)..S..(GCC,VN);GUN155,165..IDNSU..(H,L,M)..(GCC,GEN,IDN,PH);GGN155,165,GUN156,KUN156..(I201601-202008
*CR,PASSENGER SIDE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
*CR,DRIVER SIDE
main69217-0K380iGUN156..S..IART;TGN156..AGTSU..(H,M);GUN156..RHD..(PKN,SA,TH);GUN156..(AGTSU,THSUV)..H;GUN155..(MASUV,SASUV,THSUV)..6FC;GUN165,TGN166..MASUV,PKNSU,SASUV,THSUV;TGN15201507-202104
*CR,PASSENGER SIDE
*CR,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),DRIVER SIDE
*CR,DRIVER SIDE
*CR,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),PASSENGER SIDE
*CR,PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
main69217-0K913iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
LESS COLOR,DRIVER SIDE
main69217-0K914iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
LESS COLOR,PASSENGER SIDE
main69217-0K915iGUN165,TGN156..IDNSU..L..(GEN,LA,VN);GUN15#,165,KUN156,TGN166..IDNSU..(L,S)..(GEN,IDN,LA,PH)201601-202007
LESS COLOR,DRIVER SIDE
main69217-0K916iGUN165,TGN156..IDNSU..L..(GEN,LA,VN);GUN15#,165,KUN156,TGN166..IDNSU..(L,S)..(GEN,IDN,LA,PH)201601-202007
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-0K060iGUN156..S..IART;GUN156..(AGTSU,THSUV)..H;TGN156..(AGTSU,MASUV)..(H,M);GUN156..(AGTSU,THSUV)..M..(ARL,LA);GUN15#,165,TGN166..RHD..(MA,PKN,SA,TH);GGN155,GUN166,TGN168201507-202104
PLATED
main69210-0K090iGGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(H,M);TGN156,166..(IDNSU,VNSUV)..(H,M,S)..(GEN,IDN,LA,VN)201601-202008
PLATED
PLATED
main69210-0K130iTGN166..IDNSU..GCC;GUN165..IDNSU..6F..GCC;GGN155,165,GUN155,165,TGN156..(IDNSU,VNSUV)..(5F,6FC)..(L,S)..(GCC,VN)201601-202008
PLATED
main69210-0K200iTGN166..LHD..(EPTSU,THSUV);GGN155,165,GUN155,165,TGN156..(EPTSU,PKNSU,THSUV)..(L,S)..(EPT,GCC,PKN)201601-202101
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
PAINT REQ.
PAINT REQ.
main69210-0K903iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
PAINT REQ.
main69210-0K904iGUN165,TGN156..IDNSU..L..(GEN,LA,VN);GUN15#,165,KUN156,TGN166..IDNSU..(L,S)..(GEN,IDN,LA,PH)201601-202007
PAINT REQ.
69237ANUT, FRONT DOOR HANDLE
main69237-0E010iTGN156..H;GUN15#..LHD..SA;TGN166..THSUV..5F;GUN165..IDNSU..6FC..L;GUN15#..IDNSU,INDSU,VNSUV;TGN166..IDNSU..(L,S)..(GCC,GEN,LA);GUN156,KUN156..AGTSU..(M,S)..(DCR,IAR201507-202012
main69237-0K040iGUN156..H..BZAGT;TGN156,166..M..LA;TGN156..MASUV,THSUV;TGN166..PKNSU,SASUV,THSUV;GUN165,TGN168..S..(BZAGT,TH);GUN156..RHD..(PKNSU,SASUV,THSUV);GUN165..(MASUV,SASUV,201907-202104
main69237-0K070iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
69239CBUSH, FRONT DOOR HANDLE
main69239-0K070iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
main69239-0K090iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-0K070iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-0K060iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-0K020-C0iTGN156,166..IDNSU..L..GCC;GGN155,165,GUN15#,165,KUN156..IDNSU,VNSUV;TGN156,166..(IDNSU,VNSUV)..(GEN,IDN,LA,PH,VN)201601-202008
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
main69283-0K070-C0iGUN156,TGN168..L..BZAGT;GGN155,GUN156,165,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-202010
BLACK,TRIM3#,4#
BLACK,TRIM0#,3#,4#
BLACK,TRIM4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
main69284-0K050-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM3#,4#
main69284-0K050-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM4#
main69284-0K050-C0iGUN156,TGN168..L..BZAGT;GGN155,GUN156,165,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-202010
BLACK,TRIM0#,3#,4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-33010iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-33020iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
69296SCREW, DOOR INSIDE HANDLE
main69296-30010iGUN156,TGN168..L..BZAGT;KUN156..(AGTSU,SASUV)..(L,S);GUN15#,165,KUN165,LAN155,TGN156,166..LHD..(AGTSU,SASUV)..(L,S)..(DCR,DEFI,HDCR,HTWC)201512-202010
69310LOCK ASSY, FRONT DOOR, RH
main69030-02530iGUN156..L..BZAGT;GGN155,TGN168..AGTSU;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010
main69030-02600iGUN15#,TGN156..LHD..(EPTSU,THSUV)..(L,S);GGN155,165,GUN165,KUN165,TGN166..LHD..(EPTSU,SASUV,THSUV)..(L,S)201601-202101
main69030-0K100iGUN165..PH,VN;GUN165..IDNSU..H;TGN166..(IDNSU,VNSUV)..(M,S)..(LA,PH,VN);GGN155,165,GUN15#,KUN156,TGN156..LHD..(IDNSU,VNSUV)..(H,M)201601-202008
main69030-0K210iGGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU..(L,S)..(GCC,GEN,LA)201601-202007
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
main69040-02450iLAN155..S;GGN155,165,GUN15#,165,KUN156,165,TGN156,166..LHD..(EPTSU,SASUV,THSUV)201601-202101
main69040-02470iKUN156..RHD..SA;GUN155,16#,TGN166..PKN,TH;GUN156..RHD..(PKNSU,THSUV)..M201507-202104
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0K160iGUN155,LAN155..S..SA;GUN156..LHD..(SASUV,THSUV);GUN156..RHD..(PKNSU,THSUV);KUN156,165,TGN156..PKNSU,SASUV,THSUV;GGN155,165,GUN155,16#,TGN166..PKNSU,THSUV201507-202104
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0K160iGUN155,LAN155..S..SA;GUN156..LHD..(SASUV,THSUV);GUN156..RHD..(PKNSU,THSUV);KUN156,165,TGN156..PKNSU,SASUV,THSUV;GGN155,165,GUN155,16#,TGN166..PKNSU,THSUV201507-202104
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005

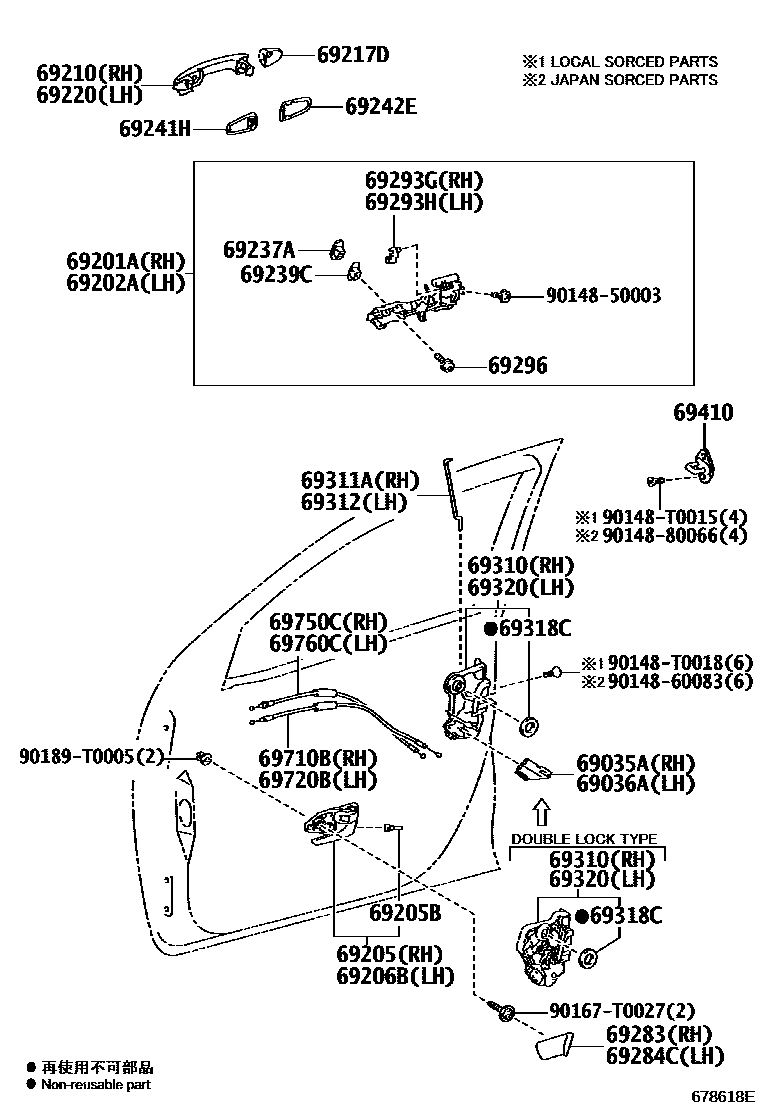

36 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota FORTUNER
This section contains 36 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota FORTUNER. Key components include: COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
