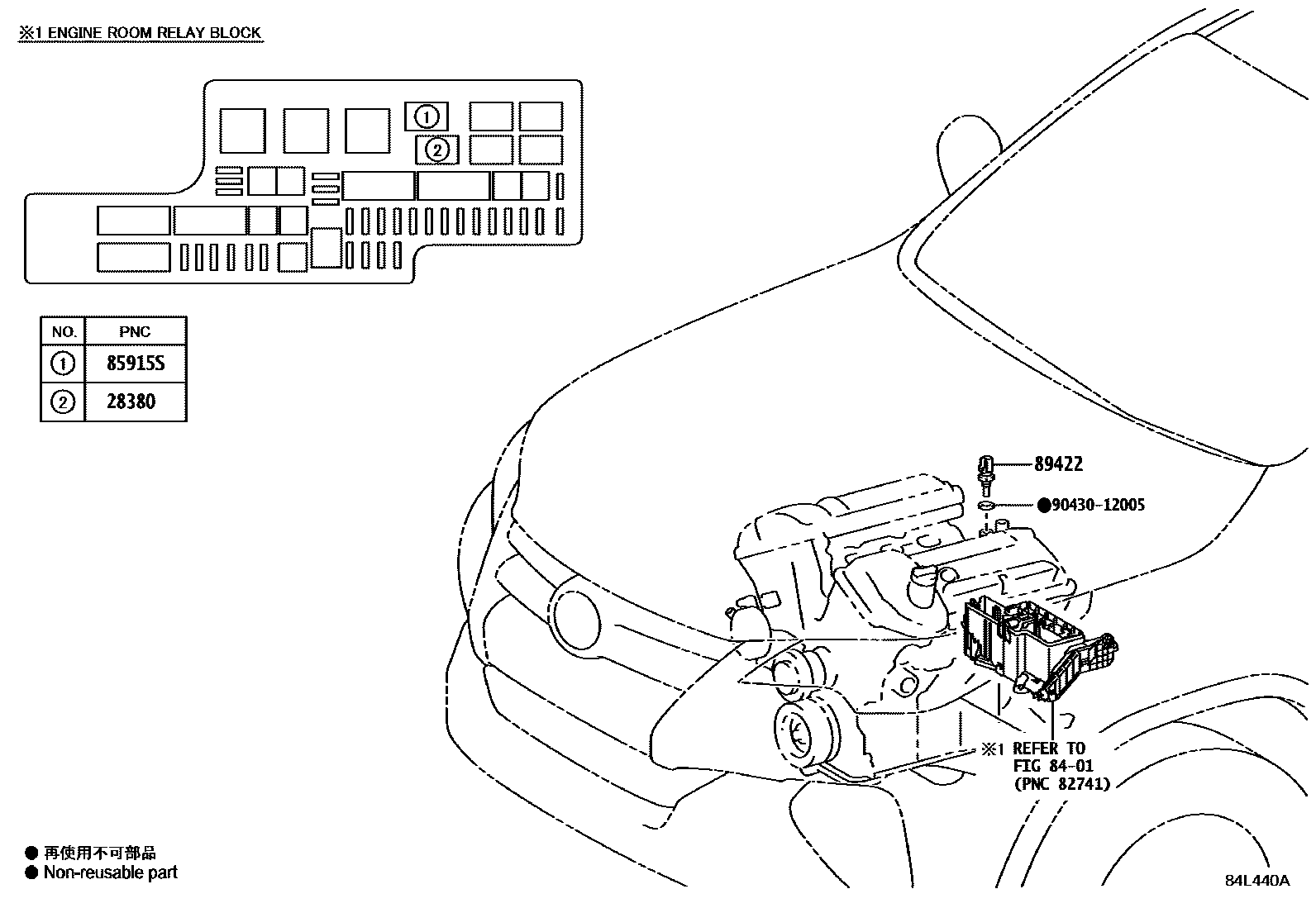

Toyota FORTUNER — ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main90080-87009i202006-202203

(L)

main90987-04004i202006-202110

(J)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027i202006-202110

(J)

main90987-T2001i202006-202204

(L)

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i202006-202110

9043012005

main90430-12005

5 parts on this diagram · 4 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota FORTUNER

This section contains 20 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota FORTUNER. Key components include: RELAY ASSY, FUEL PUMP, SWITCH & RELAY & COMPUTER, RELAY, INJECTION (FOR EFI), RELAY, HEATER (FOR AIR FUEL RATIO SENSOR), SENSOR, AIR PRESSURE.
