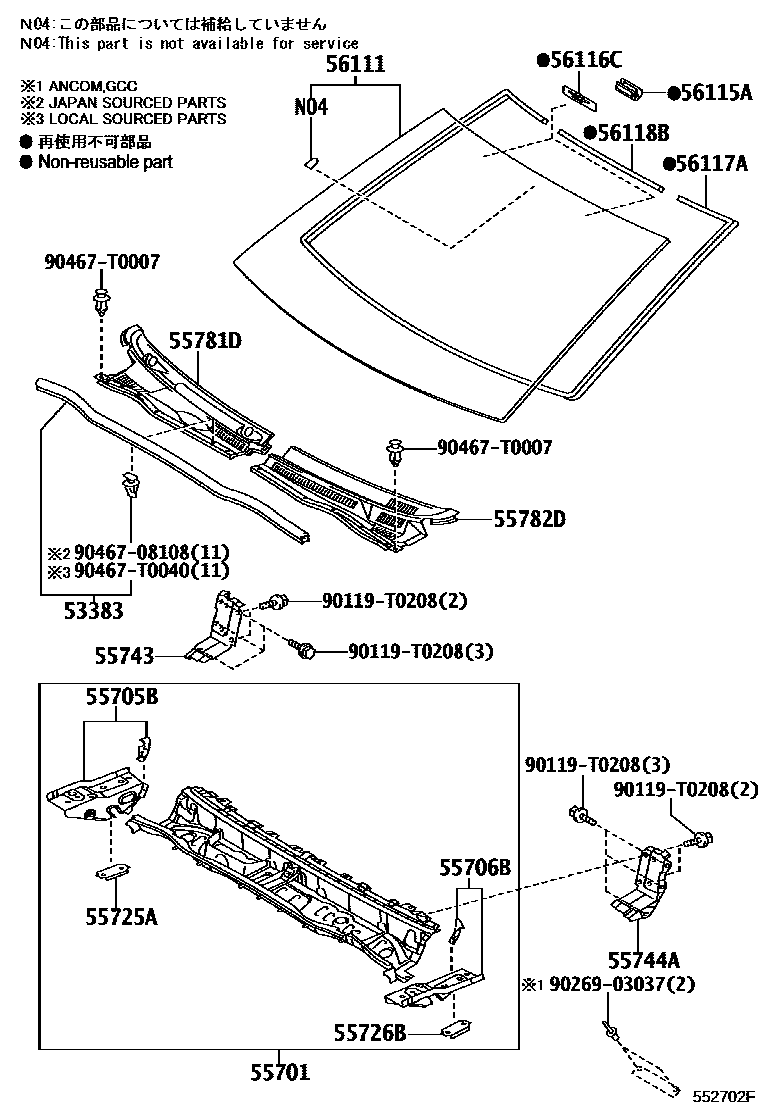

Toyota FORTUNER — COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
main53383-0K010iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH
55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744AREINFORCEMENT, PEDAL BRACKET MOUNTING
55781DLOUVER, COWL TOP VENTILATOR, RH
main55708-0K010iTGN61..TH;KUN51..IND;KUN51..5FC..TH;KUN6#..(5F,5FC)..(IND,TH);KUN51,60,TGN51,61..RHD..IDSUV201107-201311
main55708-0K021iGGN50,KUN51..IDSUV..LA;GGN50,KUN51,60,TGN51,61..LHD..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,PHL)201303-201612
55782DLOUVER, COWL TOP VENTILATOR, LH
main55709-0K010iTGN61..TH;KUN51..IND;KUN51..5FC..TH;KUN6#..(5F,5FC)..(IND,TH);KUN51,60,TGN51,61..RHD..IDSUV201107-201311
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.96,GREEN
*LAM,T=4.96,GREEN; *LAM,T=4.96,GREEN,AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
main56101-0K071iKUN51..SUVW..5F..LA; TGN61..5F..LA;TGN61..4FC..HTWCF;GGN50,TGN51,61..CO201206-201510
*LAM,T=4.96,GREEN; *LAM,T=4.96,GREEN,AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
*LAM,T=4.96,GREEN
*LAM,T=4.96,GREEN
*LAM,T=4.96,GREEN
*LAM,T=4.76,GREEN
main56101-0K200iTGN51..GEN,IDN,PKN,VN;GGN50,KUN5#,6#,TGN61..(IDSUV,SUVW)..(EPT,GEN,IDN,PHL,TH,VN)201107-201612
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.96,GREEN,AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA
*LAM,T=4.96,GREEN,AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA; *LAM,T=4.96,GREEN,AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=3089
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
L=706
90119T0208
main90119-T0208
9026903037
main90269-03037
9046708108
main90467-08108
90467T0007
main90467-T0007
90467T0040
main90467-T0040
20 parts on this diagram · 2 diagrams in section
COWL PANEL & WINDSHIELD GLASS for Toyota FORTUNER
This section contains 20 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota FORTUNER. Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, REINFORCEMENT, HOOD HINGE MOUNTING, RH.
