Toyota FORTUNER — CLUTCH & RELEASE FORK

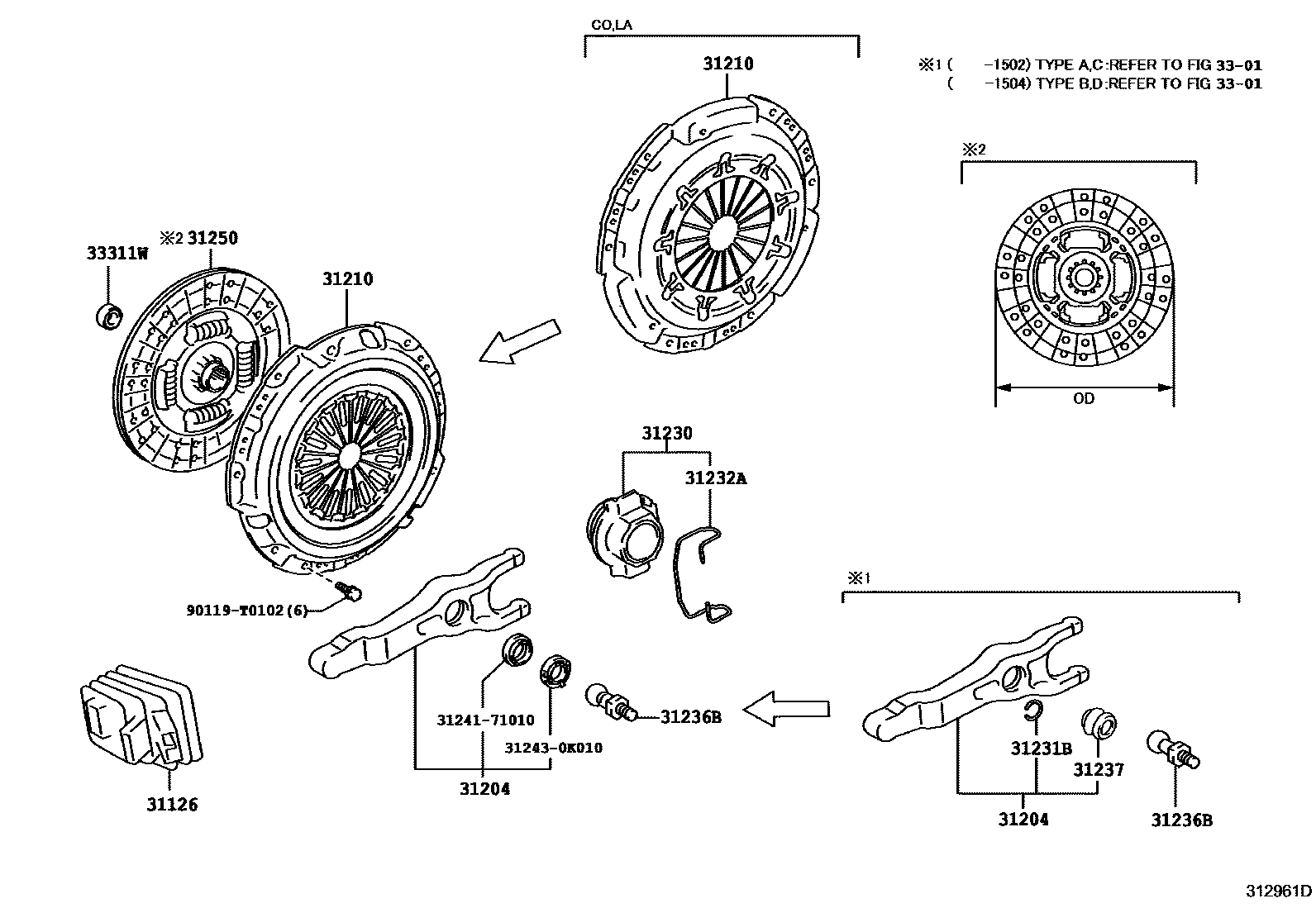

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-0K050i201107-201611
TYPE D:REFER 33-01
main31126-0K070i201107-201210
TYPE D:REFER 33-01
main31126-36080i201204-201410
TYPE A:REFER 33-01
main31126-60081i201107-201504
TYPE A:REFER 33-01; TYPE B:REFER 33-01
main31126-60110i201108-201512
TYPE A:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-0K020i201107-201601
TYPE C:REFER 33-01
main31204-0K061i201107-201510
TYPE C:REFER 33-01; TYPE D:REFER 33-01
main31204-0K071i201107-201503
TYPE D:REFER 33-01
main31204-0K081i201107-201502
TYPE C:REFER 33-01
main31204-0K150i201601-201703
TYPE C:REFER 33-01
main31204-0K160i201502-201611
TYPE C:REFER 33-01
main31204-0K180i201504-201611
TYPE D:REFER 33-01
main31204-35031i201204-201410
TYPE A:REFER 33-01
main31204-35050i201108-201512
TYPE A:REFER 33-01
main31204-35070i201107-201501
TYPE A:REFER 33-01
main31204-71020i201411-201503
TYPE A:REFER 33-01
main31204-71030i201502-201504
TYPE A:REFER 33-01
31210COVER ASSY, CLUTCH
main31210-0K040i201107-201208
main31210-0K090i201110-201510
main31210-0K131i201107-201703
main31210-0K140i201108-201111
main31210-0K141i201112-201310
main31210-0K150i201110-201212
main31210-0K151i201301-201510
main31210-0K190i201208-201411
*450
main31210-0K200i201107-201510
main31210-0K210i201108-201311
main31210-0K400i201311-201512
main31210-0K440i201411-201608
*450
31230BEARING ASSY, CLUTCH RELEASE
main31230-35061i201108-201512
TYPE A:REFER 33-01
main31230-71011i201107-201504
TYPE A:REFER 33-01; TYPE B:REFER 33-01
main31230-71020i201204-201410
TYPE A:REFER 33-01
main31230-71040i201107-201308
TYPE B:REFER 33-01
31231BRING, SNAP(FOR CLUTCH RELEASE HUB)
main90520-T0031i201107-201504
TYPE B:SEE 33-01,(L); TYPE D:REFER 33-01
main90521-22003i201107-201502
TYPE A:REFER 33-01; TYPE C:REFER 33-01
31232ACLIP, RELEASE BEARING HUB
main31232-35020i201108-201512
TYPE A:REFER ILLUST.
main31232-35030i201108-201512
TYPE B:REFER ILLUST.
main31232-71010i201107-201504
TYPE A:REFER 33-01; TYPE B:REFER 33-01
main31232-71020i201204-201408
COLOMBIA SPEC,TYPE A:REFER 33-01; ECUADOR SPEC,TYPE A:REFER 33-01; TYPE A:REFER 33-01
main31232-71040i201107-201510
TYPE C:REFER 33-01; TYPE D:REFER 33-01
31236BSUPPORT, RELEASE FORK
main31236-26010i201108-201512
TYPE A:REFER 33-01
main31236-35030i201204-201408
COLOMBIA SPEC,TYPE A:REFER 33-01; ECUADOR SPEC,TYPE A:REFER 33-01; TYPE A:REFER 33-01
main31236-35050i201504-201611
TYPE D:REFER 33-01
main31236-71011i201107-201504
TYPE B:REFER 33-01; TYPE D:REFER 33-01
main31236-71030i201107-201210
TYPE D:REFER 33-01
main31236-71040i201411-201703
TYPE C:REFER 33-01; TYPE D:REFER 33-01
31237BOOT, CLUTCH RELEASE FORK SUPPORT
main31237-0K010i201107-201504
TYPE B:SEE 33-01,(L); TYPE D:REFER 33-01
main31237-0K020i201411-201503
TYPE A:REFER 33-01
main31237-60010i201107-201502
TYPE A:REFER 33-01; TYPE C:REFER 33-01
31250DISC ASSY, CLUTCH
main31250-0K011i201108-201512
main31250-0K070i201110-201510
main31250-0K121i201108-201310
main31250-0K131i201110-201510
main31250-0K151i201107-201703
main31250-0K205i201107-201303
OD=260
main31250-0K221i201303-201306
OD=275
main31250-0K222i201307-201611
main31250-0K231i201107-201510
main31250-0K270i201110-201510
main31250-0K460i201410-201512
3301TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)
→ Go to FIG 33-01
33311WBEARING (FOR INPUT SHAFT)
main90080-36199i201110-201408
main90363-12002i201107-201608
(J)
main90363-T0006i201107-201408
(L)
main90363-T0019i201107-201510
(L)
3124171010SEAL, CLUTCH RELEASE FORK DUST
main31241-71010
312430K010COLLAR, CLUTCH RELEASE FORK
main31243-0K010
90119T0102
main90119-T0102

14 parts on this diagram · 4 diagrams in section

CLUTCH & RELEASE FORK for Toyota FORTUNER

This section contains 15 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota FORTUNER. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, RING, SNAP(FOR CLUTCH RELEASE HUB).

Toyota FORTUNER CLUTCH & RELEASE FORK — Parts Diagram | EPC Data
