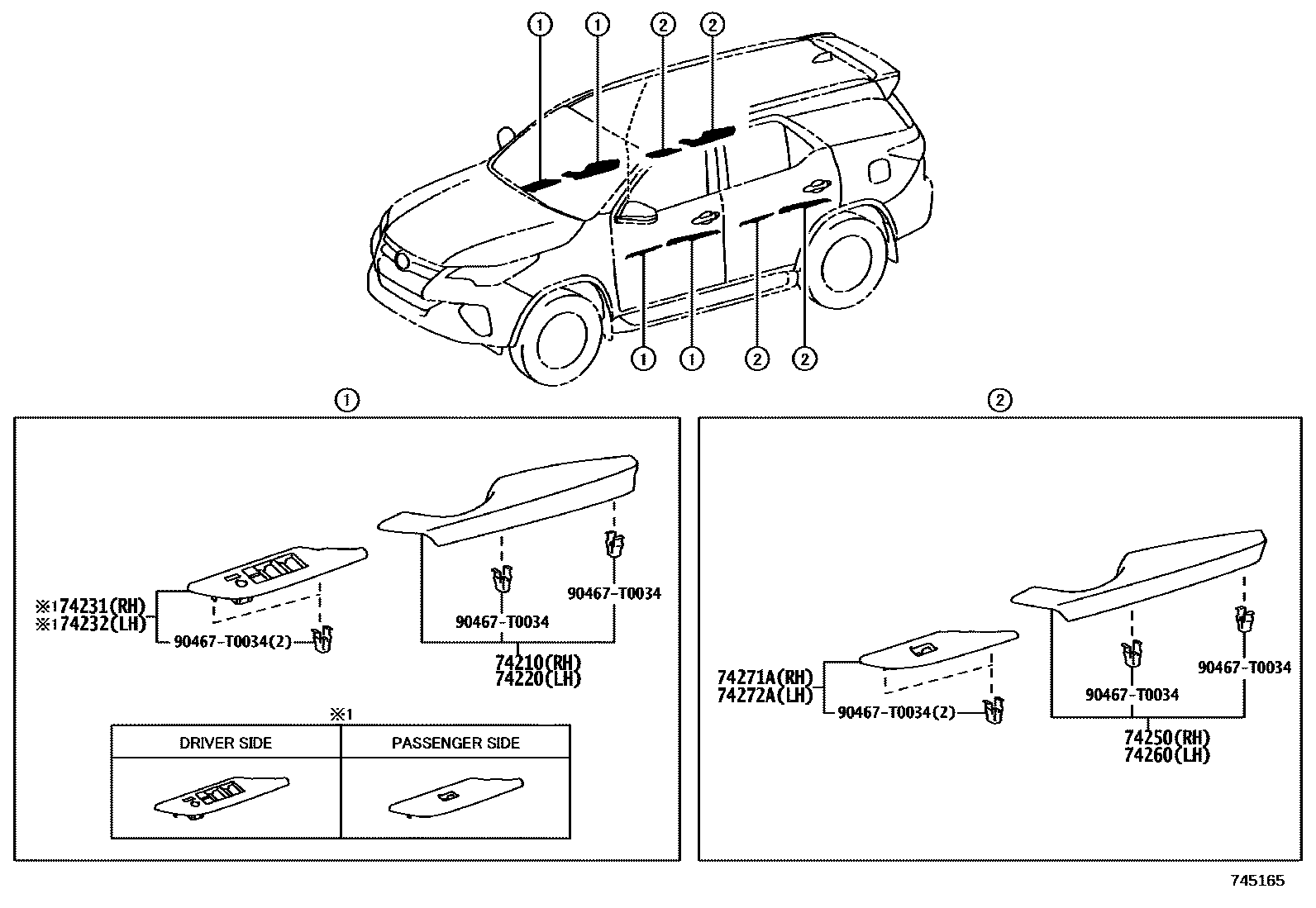

Toyota FORTUNER — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM3#
main74210-0K100-C3iGGN155,GUN15#..THSUV..H..GCC; GUN15#,16#..THSUV..H..(GEN,TH); GUN156..S..ARL202006-202108
BLACK,TRIM0#,2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM2#
CHAMOIS,TRIM4#
main74210-0K130-C0iGGN155,GUN15#..IDNSU..H..GCC; GUN156..LHD..IDNSU..GEN; GUN156..RHD..GEN;GUN165..IDNSU..S..VN;TGN166..IDNSU..(H,S);GUN156..IDNSU..(PH,VN);GGN155,GUN155,16#,TGN156..IDNSU..H..(GEN,IDN,PH,VN); GUN165..GEN202007-202108
BLACK,TRIM0#,2#; BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
main74210-0K130-E7iGGN155,GUN15#..IDNSU..H..GCC; GUN165..GEN; GUN165..IDNSU..S..VN;GGN155,GUN15#,166,TGN156,166..IDNSU..6FC..(GEN,PH,VN)202007-202108
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74210-0K200-C0iGGN155,GUN156,TGN156,166..H..LA; GUN156..6FC..L..LA;GUN156..6FC..S..BZAGT;GUN156..AGTSU..6F..(L,S);GUN165,TGN156,16#..AGTSU..(L,S)202011-202110
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main74210-0K220-C1iGGN155,GUN156,TGN156,166..AGTSU..H; TGN156,16#..S..BZAGT;GUN156..(L,S)..BZAGT202011-202110
BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
CHAMOIS,TRIM4#
BLACK,TRIM2#
main74210-0K400-E9iGUN156..S..ARL;GUN156,TGN156..THSUV..(H,S)..GCC;GGN155,GUN155,TGN166..(PKNSU,THSUV)..(H,S)..(GCC,PKN)202006-202201
CHAMOIS,TRIM4#
main74210-0K410-C0iGGN155,TGN156..H..GEN; TGN156,166..L..GEN;GGN155,GUN155,165,TGN156..IDNSU..S..(GCC,GEN,IDN,PH)202007-202108
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main74210-0K410-E9iGGN155,TGN156..H..GEN; TGN156,166..L..GEN;GUN165..S..(GEN,PH);GGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC202007-202108
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABRIC(HI),CHAMOIS,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM3#
main74220-0K100-C3iGGN155,GUN15#..THSUV..H..GCC; GUN15#,16#..THSUV..H..(GEN,TH); GUN156..S..ARL202006-202108
BLACK,TRIM0#,2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM2#
CHAMOIS,TRIM4#
main74220-0K130-C0iGGN155,GUN15#..IDNSU..H..GCC; GUN156..LHD..IDNSU..GEN; GUN156..RHD..GEN;GUN165..IDNSU..S..VN;TGN166..IDNSU..(H,S);GUN156..IDNSU..(PH,VN);GGN155,GUN155,16#,TGN156..IDNSU..H..(GEN,IDN,PH,VN); GUN165..GEN202007-202108
BLACK,TRIM0#,2#; BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
main74220-0K130-E7iGGN155,GUN15#..IDNSU..H..GCC; GUN165..GEN; GUN165..IDNSU..S..VN;GGN155,GUN15#,166,TGN156,166..IDNSU..6FC..(GEN,PH,VN)202007-202108
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74220-0K200-C0iGGN155,GUN156,TGN156,166..H..LA; GUN156..6FC..L..LA;GUN156..6FC..S..BZAGT;GUN156..AGTSU..6F..(L,S);GUN165,TGN156,16#..AGTSU..(L,S)202011-202110
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main74220-0K220-C1iGGN155,GUN156,TGN156,166..AGTSU..H; TGN156,16#..S..BZAGT;GUN156..(L,S)..BZAGT202011-202110
BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
CHAMOIS,TRIM4#
BLACK,TRIM2#
main74220-0K400-E9iGUN156..S..ARL;GUN156,TGN156..THSUV..(H,S)..GCC;GGN155,GUN155,TGN166..(PKNSU,THSUV)..(H,S)..(GCC,PKN)202006-202201
CHAMOIS,TRIM4#
main74220-0K410-C0iGGN155,TGN156..H..GEN; TGN156,166..L..GEN;GGN155,GUN155,165,TGN156..IDNSU..S..(GCC,GEN,IDN,PH)202007-202108
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main74220-0K410-E9iGGN155,TGN156..H..GEN; TGN156,166..L..GEN;GUN165..S..(GEN,PH);GGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC202007-202108
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABRIC(HI),CHAMOIS,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0K720supersedes 74231-0K710iGUN156..AGTSU..6F;GUN156..6FC..L..LA;GUN156..AGTSU..6FC..(H,S);GGN155,GUN165,TGN156,16#..AGTSU; GUN156..L..BZAGT202011-202110
SEAT COVER MATERIAL-NATURAL LEATHER
main74231-0K880iTGN156..IDNSU..S;TGN156,166..LHD..(GEN,VN);GGN155,GUN15#,16#..LHD..(IDNSU,VNSUV)..(H,S)202007-202204
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0K700supersedes 74232-0KA80iGUN156..AGTSU..6F;GUN156..6FC..L..LA;GUN156..AGTSU..6FC..(H,S);GGN155,GUN165,TGN156,16#..AGTSU; GUN156..L..BZAGT202011-202110
SEAT COVER MATERIAL-NATURAL LEATHER
main74232-0K870iTGN156..IDNSU..S;TGN156,166..LHD..(GEN,VN);GGN155,GUN15#,16#..LHD..(IDNSU,VNSUV)..(H,S)202007-202204
74250ARMREST ASSY, REAR RH
BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM3#
main74250-0K060-C3iGGN155,GUN15#..THSUV..H..GCC; GUN15#,16#..THSUV..H..(GEN,TH); GUN156..S..ARL202006-202108
BLACK,TRIM0#,2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM2#
CHAMOIS,TRIM4#
main74250-0K090-C0iGGN155,GUN15#..IDNSU..H..GCC; GUN156..LHD..IDNSU..GEN; GUN156..RHD..GEN;GUN165..IDNSU..S..VN;TGN166..IDNSU..(H,S);GUN156..IDNSU..(PH,VN);GGN155,GUN155,16#,TGN156..IDNSU..H..(GEN,IDN,PH,VN); GUN165..GEN202007-202108
BLACK,TRIM0#,2#; BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
main74250-0K090-E7iGGN155,GUN15#..IDNSU..H..GCC; GUN165..GEN; GUN165..IDNSU..S..VN;GGN155,GUN15#,166,TGN156,166..IDNSU..6FC..(GEN,PH,VN)202007-202108
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74250-0K140-C0iGGN155,GUN156,TGN156,166..H..LA; GUN156..6FC..L..LA;GUN156..6FC..S..BZAGT;GUN156..AGTSU..6F..(L,S);GUN165,TGN156,16#..AGTSU..(L,S)202011-202110
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main74250-0K160-C1iGGN155,GUN156,TGN156,166..AGTSU..H; TGN156,16#..S..BZAGT;GUN156..(L,S)..BZAGT202011-202110
BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
CHAMOIS,TRIM4#
BLACK,TRIM2#
main74250-0K310-E9iGUN156..S..ARL;GUN156,TGN156..THSUV..(H,S)..GCC;GGN155,GUN155,TGN166..(PKNSU,THSUV)..(H,S)..(GCC,PKN)202006-202201
CHAMOIS,TRIM4#
main74250-0K320-C0iGGN155,TGN156..H..GEN; TGN156,166..L..GEN;GGN155,GUN155,165,TGN156..IDNSU..S..(GCC,GEN,IDN,PH)202007-202108
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main74250-0K320-E9iGGN155,TGN156..H..GEN; TGN156,166..L..GEN;GUN165..S..(GEN,PH);GGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC202007-202108
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABRIC(HI),CHAMOIS,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM3#
main74260-0K060-C3iGGN155,GUN15#..THSUV..H..GCC; GUN15#,16#..THSUV..H..(GEN,TH); GUN156..S..ARL202006-202108
BLACK,TRIM0#,2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM2#
CHAMOIS,TRIM4#
main74260-0K090-C0iGGN155,GUN15#..IDNSU..H..GCC; GUN156..LHD..IDNSU..GEN; GUN156..RHD..GEN;GUN165..IDNSU..S..VN;TGN166..IDNSU..(H,S);GUN156..IDNSU..(PH,VN);GGN155,GUN155,16#,TGN156..IDNSU..H..(GEN,IDN,PH,VN); GUN165..GEN202007-202108
BLACK,TRIM0#,2#; BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
main74260-0K090-E7iGGN155,GUN15#..IDNSU..H..GCC; GUN165..GEN; GUN165..IDNSU..S..VN;GGN155,GUN15#,166,TGN156,166..IDNSU..6FC..(GEN,PH,VN)202007-202108
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74260-0K140-C0iGGN155,GUN156,TGN156,166..H..LA; GUN156..6FC..L..LA;GUN156..6FC..S..BZAGT;GUN156..AGTSU..6F..(L,S);GUN165,TGN156,16#..AGTSU..(L,S)202011-202110
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main74260-0K160-C1iGGN155,GUN156,TGN156,166..AGTSU..H; TGN156,16#..S..BZAGT;GUN156..(L,S)..BZAGT202011-202110
BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
CHAMOIS,TRIM4#
BLACK,TRIM2#
main74260-0K310-E9iGUN156..S..ARL;GUN156,TGN156..THSUV..(H,S)..GCC;GGN155,GUN155,TGN166..(PKNSU,THSUV)..(H,S)..(GCC,PKN)202006-202201
CHAMOIS,TRIM4#
main74260-0K320-C0iGGN155,TGN156..H..GEN; TGN156,166..L..GEN;GGN155,GUN155,165,TGN156..IDNSU..S..(GCC,GEN,IDN,PH)202007-202108
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main74260-0K320-E9iGGN155,TGN156..H..GEN; TGN156,166..L..GEN;GUN165..S..(GEN,PH);GGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC202007-202108
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABRIC(HI),CHAMOIS,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-0K350iTGN156..IDNSU..S;TGN156,166..GEN,IDN,VN;GGN155,GUN15#,16#..(IDNSU,VNSUV)..(H,S)202007-202204
main74271-0K370supersedes 74271-0K360iGUN156..AGTSU..6F;GUN156..6FC..L..LA;GUN156..AGTSU..6FC..(H,S);GGN155,GUN165,TGN156,16#..AGTSU; GUN156..L..BZAGT202011-202110
SEAT COVER MATERIAL-NATURAL LEATHER
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-0K350iTGN156..IDNSU..S;TGN156,166..GEN,IDN,VN;GGN155,GUN15#,16#..(IDNSU,VNSUV)..(H,S)202007-202204
main74272-0K370supersedes 74272-0K360iGUN156..AGTSU..6F;GUN156..6FC..L..LA;GUN156..AGTSU..6FC..(H,S);GGN155,GUN165,TGN156,16#..AGTSU; GUN156..L..BZAGT202011-202110
SEAT COVER MATERIAL-NATURAL LEATHER
90467T0034
main90467-T0034
9 parts on this diagram · 2 diagrams in section
ARMREST & VISOR for Toyota FORTUNER
This section contains 24 genuine Toyota parts for the ARMREST & VISOR system of the Toyota FORTUNER. Key components include: BACK DOOR PANEL & GLASS, ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
