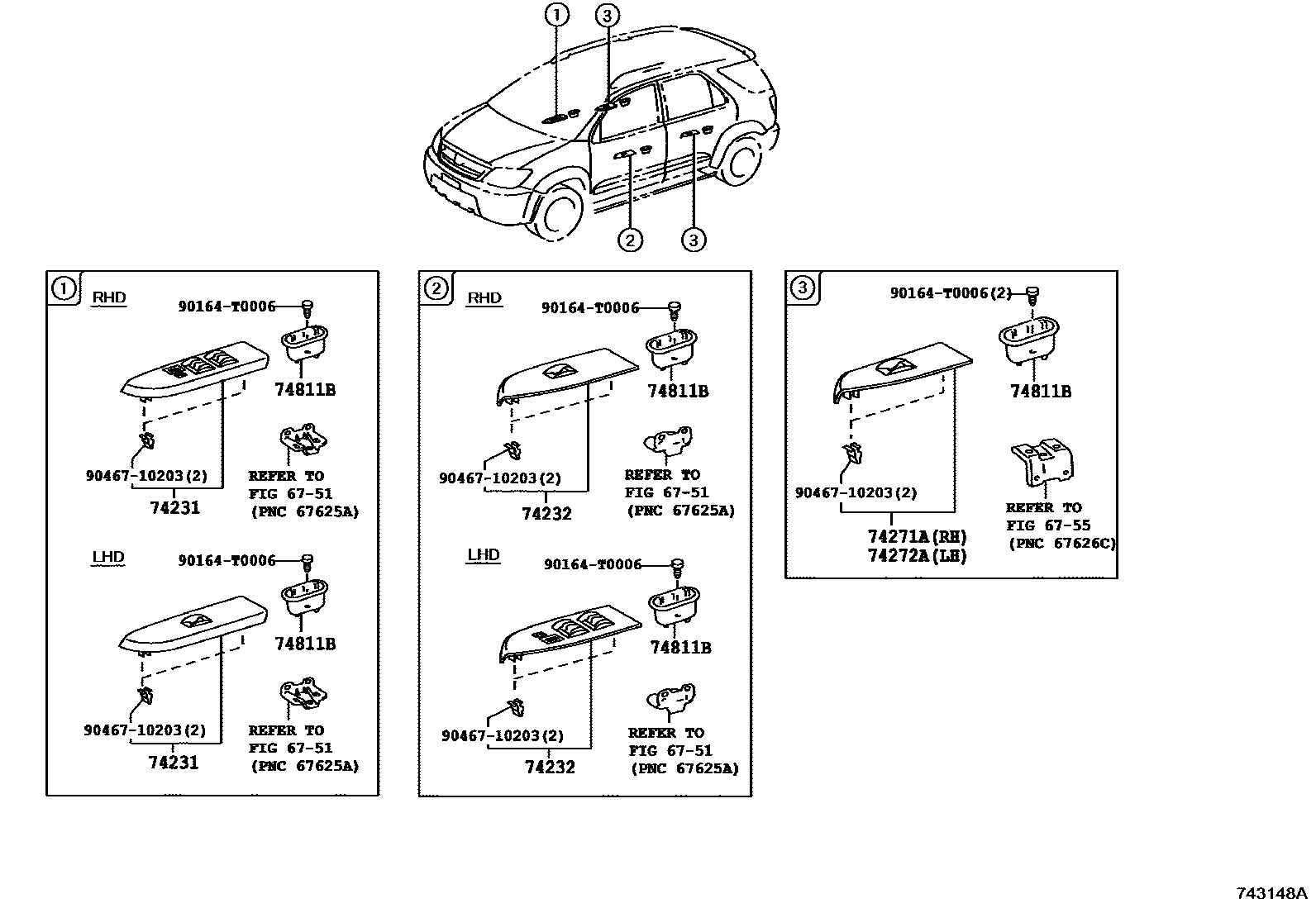

Toyota FORTUNER — ARMREST & VISOR
6751FRONT DOOR PANEL & GLASS
6755REAR DOOR PANEL & GLASS
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0K350supersedes 74231-0KA30iKUN51..RHD..(4FC,5FC);KUN60..RHD..(GEN,IDN);KUN51..RHD..5F..(IND,SA);GGN50,60,KUN61,LAN50,TGN51,61..RHD201107-201311
main74231-0K360iTGN51..SA,VN;GGN50,60,KUN51,60,LAN50..LHD;TGN61..4FC..HTWC..(LA,PHL,VN)201107-201311
main74231-0K500iKUN50,60..MA,SA,TH;KUN51..RHD..5F..(GEN,TH); TGN51..GEN,PKN;TGN51,61..SUVW..IDN201107-201311
AIR CONDITIONER-AIR CONDITIONER DUAL
AIR CONDITIONER-AIR CONDITIONER DUAL
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0K350supersedes 74232-0KA00iKUN51..RHD..(4FC,5FC);KUN60..RHD..(GEN,IDN);KUN51..RHD..5F..(IND,SA);GGN50,60,KUN61,LAN50,TGN51,61..RHD201107-201311
main74232-0K360iTGN51..SA,VN;GGN50,60,KUN51,60,LAN50..LHD;TGN61..4FC..HTWC..(LA,PHL,VN)201107-201311
main74232-0K500iKUN50,60..MA,SA,TH;KUN51..RHD..5F..(GEN,TH); TGN51..GEN,PKN;TGN51,61..SUVW..IDN201107-201311
AIR CONDITIONER-AIR CONDITIONER DUAL
AIR CONDITIONER-AIR CONDITIONER DUAL
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-0K200supersedes 74271-0K440iKUN51..4FC,5FC;KUN51..LHD..5F..GEN;KUN51..5F..(CO,IND,LA,SA);KUN61,TGN51..GEN,IDN,IND,MA,PKN,SA,TH,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);GGN50,60,KUN60,LAN50..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,LA,PHL,SA,VN)201107-201311
main74271-0K260iTGN51..GEN,PKN;TGN51,61..SUVW..IDN; TGN61..5F..LA;TGN61..4FC..HTWCF;KUN50,60..MA,SA,TH;TGN51,61..CO,EPT,GCC;KUN51..RHD..5F..(GEN,TH)201107-201311
AIR CONDITIONER-AIR CONDITIONER DUAL
main74271-0K440iKUN51..5FC..CO;KUN51..5F..(CO,LA);GGN50,KUN50,60..CO,GCC,GEN,IDN,LA,PHL;KUN51,TGN51,61..(IDSUV,SUVW)..(4FC,5FC)..(DCR,HTWC,IART)..(GEN,IDN,LA,PHL)201311-201510
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-0K200supersedes 74272-0K440iKUN51..4FC,5FC;KUN51..LHD..5F..GEN;KUN51..5F..(CO,IND,LA,SA);KUN61,TGN51..GEN,IDN,IND,MA,PKN,SA,TH,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);GGN50,60,KUN60,LAN50..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,LA,PHL,SA,VN)201107-201311
main74272-0K260iTGN51..GEN,PKN;TGN51,61..SUVW..IDN; TGN61..5F..LA;TGN61..4FC..HTWCF;KUN50,60..MA,SA,TH;TGN51,61..CO,EPT,GCC;KUN51..RHD..5F..(GEN,TH)201107-201311
AIR CONDITIONER-AIR CONDITIONER DUAL
main74272-0K440iKUN51..5FC..CO;KUN51..5F..(CO,LA);GGN50,KUN50,60..CO,GCC,GEN,IDN,LA,PHL;KUN51,TGN51,61..(IDSUV,SUVW)..(4FC,5FC)..(DCR,HTWC,IART)..(GEN,IDN,LA,PHL)201311-201510
74811BHANDLE, DOOR PULL
DK.GRAY,TRIM1#
main74811-0K010-C0×4iGGN50,KUN51..IDSUV..(GCC,LA);KUN5#,6#,TGN51,61..(IDSUV,SUVW)..(GEN,IDN,KZS,MA,PHL,TH)201308-201703
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
90164T0006
main90164-T0006
9046710203
main90467-10203
9 parts on this diagram · 3 diagrams in section
ARMREST & VISOR for Toyota FORTUNER
This section contains 24 genuine Toyota parts for the ARMREST & VISOR system of the Toyota FORTUNER. Key components include: FRONT DOOR PANEL & GLASS, REAR DOOR PANEL & GLASS, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH.
