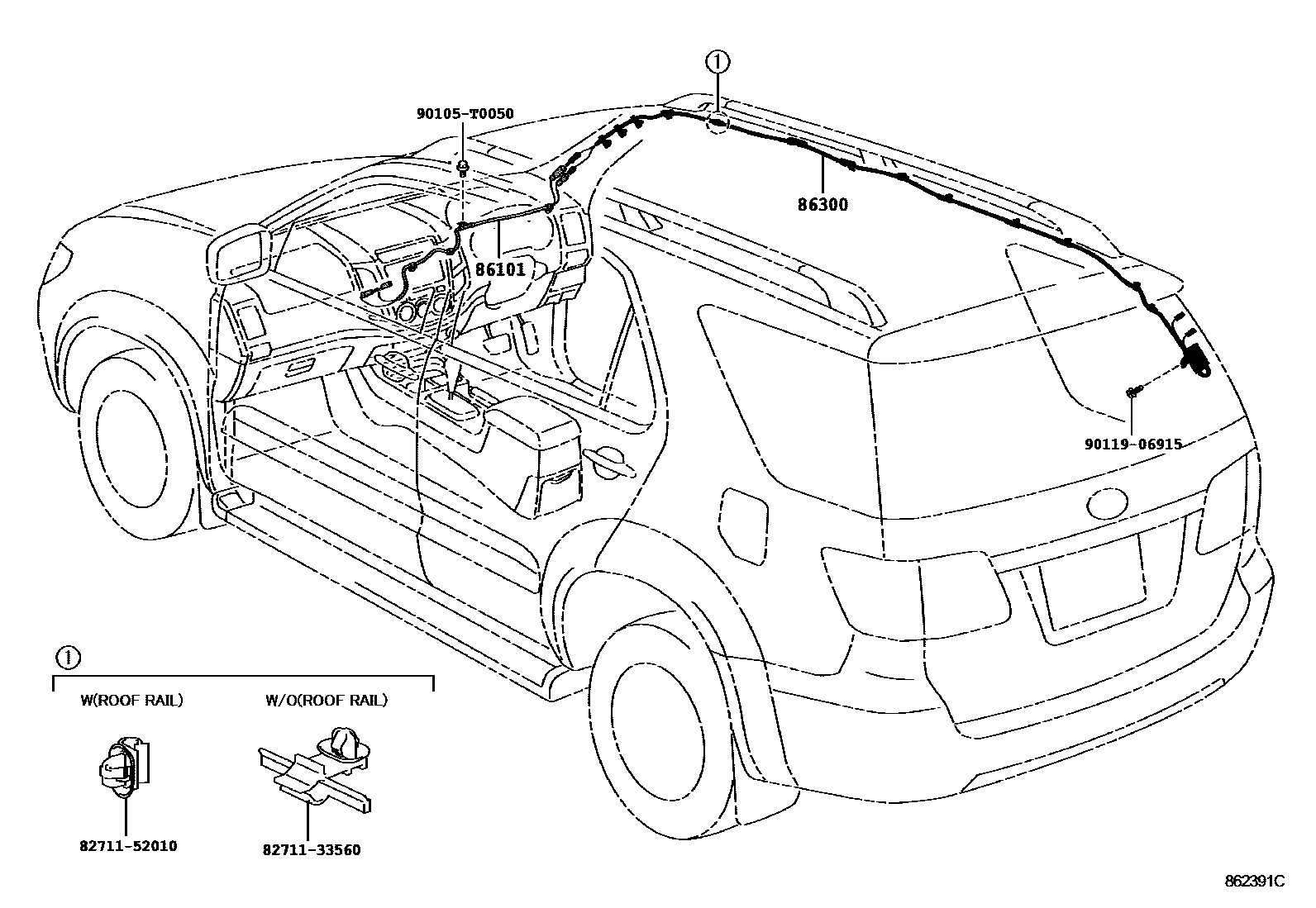

Toyota FORTUNER — ANTENNA
86101CORD SUB-ASSY, ANTENNA
main86101-0K030iTGN51..MA;TGN51,61..IDSUV..IDN;GGN50,60,KUN5#,61,LAN50..RHD..(5F,5FC)..(MA,SA)200508-200810
main86101-0K230supersedes 86101-0K200iLAN50..RHD;KUN50,TGN51..4FC..MA;KUN60,TGN51,61..IDSUV..IDN200808-201109
AUDIO-AVN DVD 6SPEAKER
86300ANTENNA ASSY, W/HOLDER
main86300-0K030iTGN61..IDSUV..IDN;TGN51..IDN,MA,SA,TH;KUN51,60,TGN61..SUVW..(IDN,PHL,SA,TH);GGN50,60,KUN50,61,LAN50..(5F,5FC)..(MA,SA)200501-200810
main86300-0K060iKUN51..RHD;KUN51..PHL;KUN6#,LAN50,TGN51..IDN,MA,PHL,SA,TH,VN;GGN50,60,KUN50,TGN61..(4FC,5FC)..(IDN,MA,PHL,SA,TH)200808
8271133560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33560
8271152010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52010
90105T0050
main90105-T0050
9011906915
main90119-06915
6 parts on this diagram · 2 diagrams in section
ANTENNA for Toyota FORTUNER
This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota FORTUNER. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
