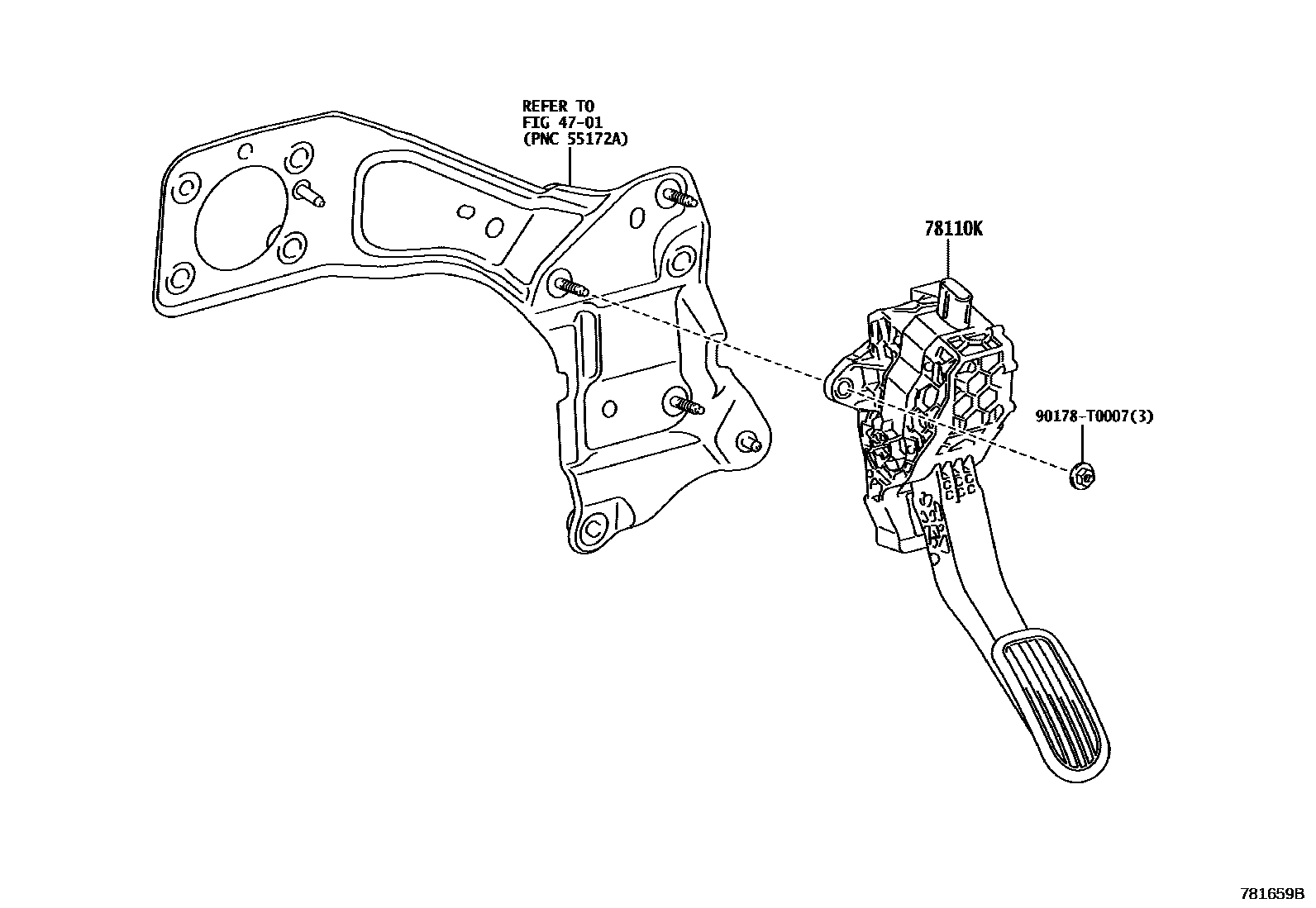

Toyota FORTUNER — ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-KK010iGUN15#,16#,TGN156,166..RHD202006-202104

main78110-KK011iGUN15#,16#,TGN156,166..RHD202105-202201

main78110-KK020iGGN155,GUN15#,16#,LAN155,TGN156,16#..LHD202006-202104

main78110-KK021iGGN155,GUN156,165,TGN156,16#..AGTSU202105-202110

90178T0007

main90178-T0007

3 parts on this diagram · 2 diagrams in section
