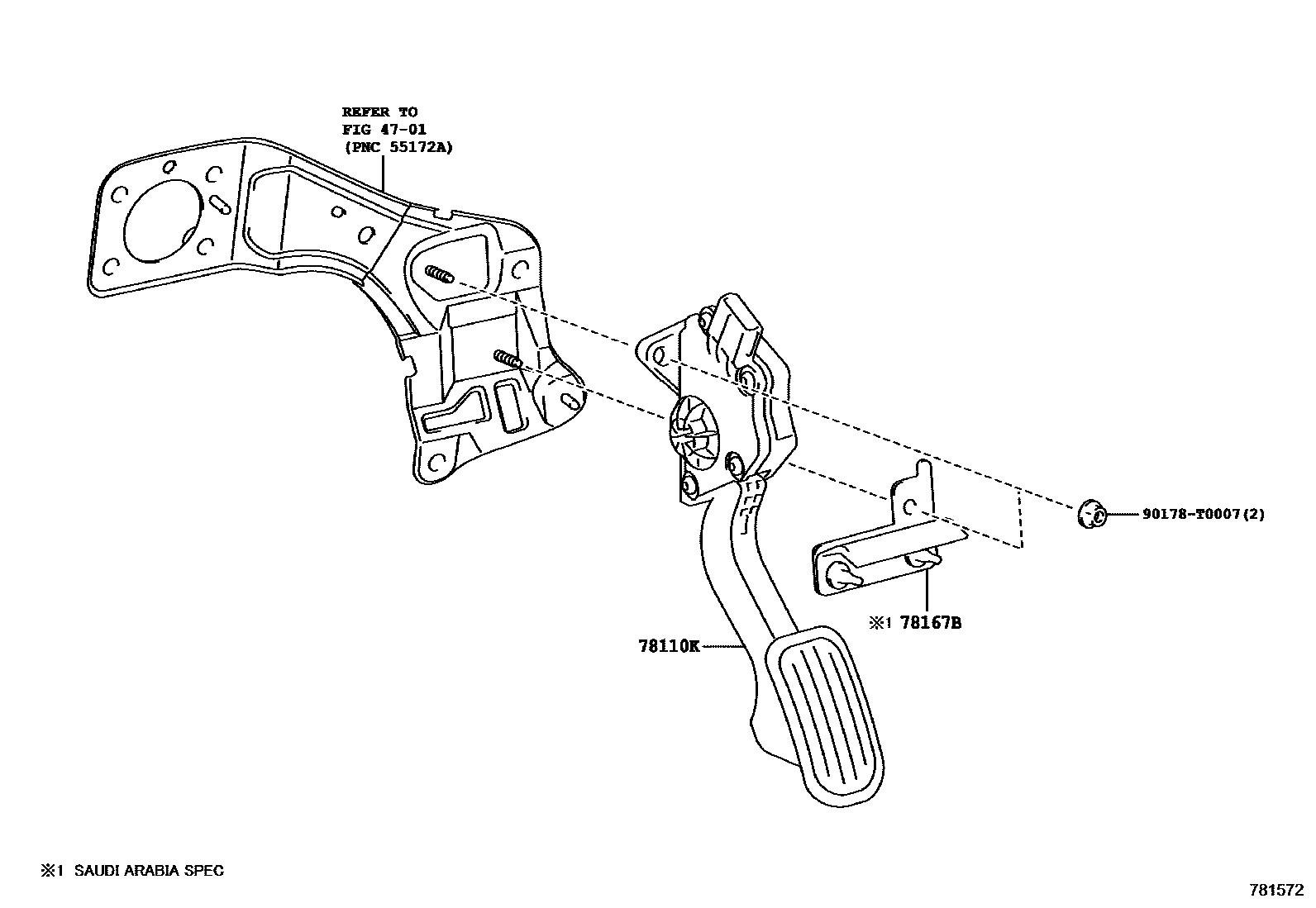

Toyota FORTUNER — ACCELERATOR LINK

0001 1 0004 1 0005 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0K010iGGN155,GUN156,16#,KUN156,TGN166..RHD..SA201507-201604

main78110-0K020iGGN155,165,GUN15#,165,KUN156,TGN156,166..LHD201512-201603

main78110-0K030iTGN156..6FC..GCC;GGN155,165,GUN15#,165,TGN166..GCC201604-201804

main78110-0K040iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201604-202104

main78110-0K050iTGN156..6FC..GCC;GGN155,165,GUN15#,165,TGN166..GCC201804-202007

sub78110-0K051

78167BSEAL, ACCELERATOR CONTROL

main78167-71010supersedes 78167-71010iGUN15#,165..GCC201707-201804

SAUDI ARABIA SPEC(EURO4 REGULATION)

90178T0007

main90178-T0007

4 parts on this diagram · 3 diagrams in section
