Toyota FORTUNER — METER

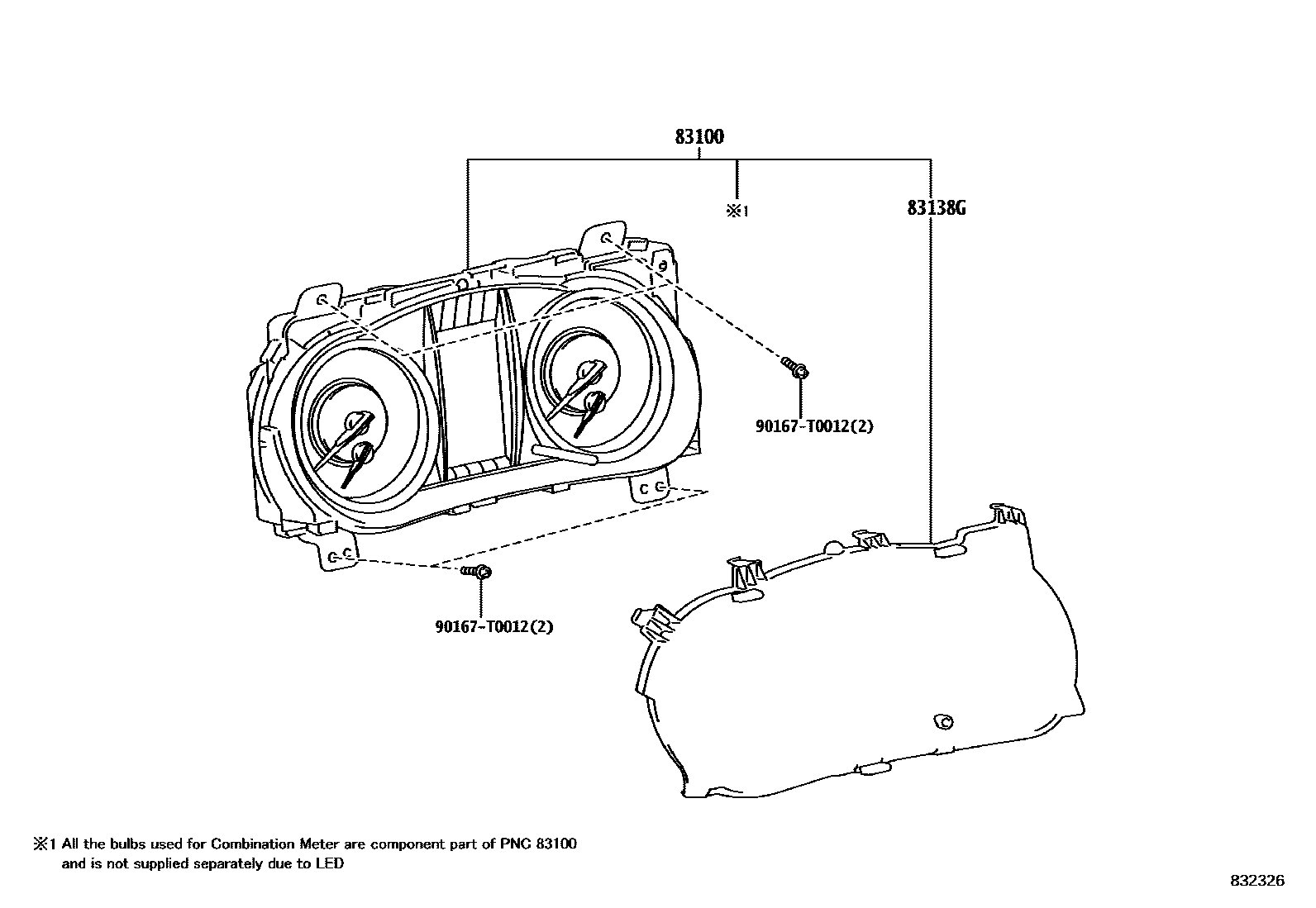

83100METER ASSY, COMBINATION

main83800-FB480i202006-202102

YAZAKI

main83800-FB481i202103-202108

YAZAKI

main83800-FDE10i202006-202102

YAZAKI

main83800-FDE11i202103-202108

YAZAKI

main83800-FG070supersedes 83800-FDD91i202006-202102

YAZAKI,ACTIVE SAFETY PACKAGE-WITH

main83800-FG071supersedes 83800-FDD91i202103-202108

YAZAKI,ACTIVE SAFETY PACKAGE-WITH

main83800-FG080supersedes 83800-FG201i202006-202102

YAZAKI,ACTIVE SAFETY PACKAGE-WITH

main83800-FG081supersedes 83800-FG201i202103-202108

YAZAKI,ACTIVE SAFETY PACKAGE-WITH

83138GGLASS, COMBINATION METER

main83852-FBJ30i202006-202103

main83852-FBL60i202006-202108

90167T0012

main90167-T0012

3 parts on this diagram · 1 diagram in section

METER for Toyota FORTUNER

This section contains 3 genuine Toyota parts for the METER system of the Toyota FORTUNER. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
