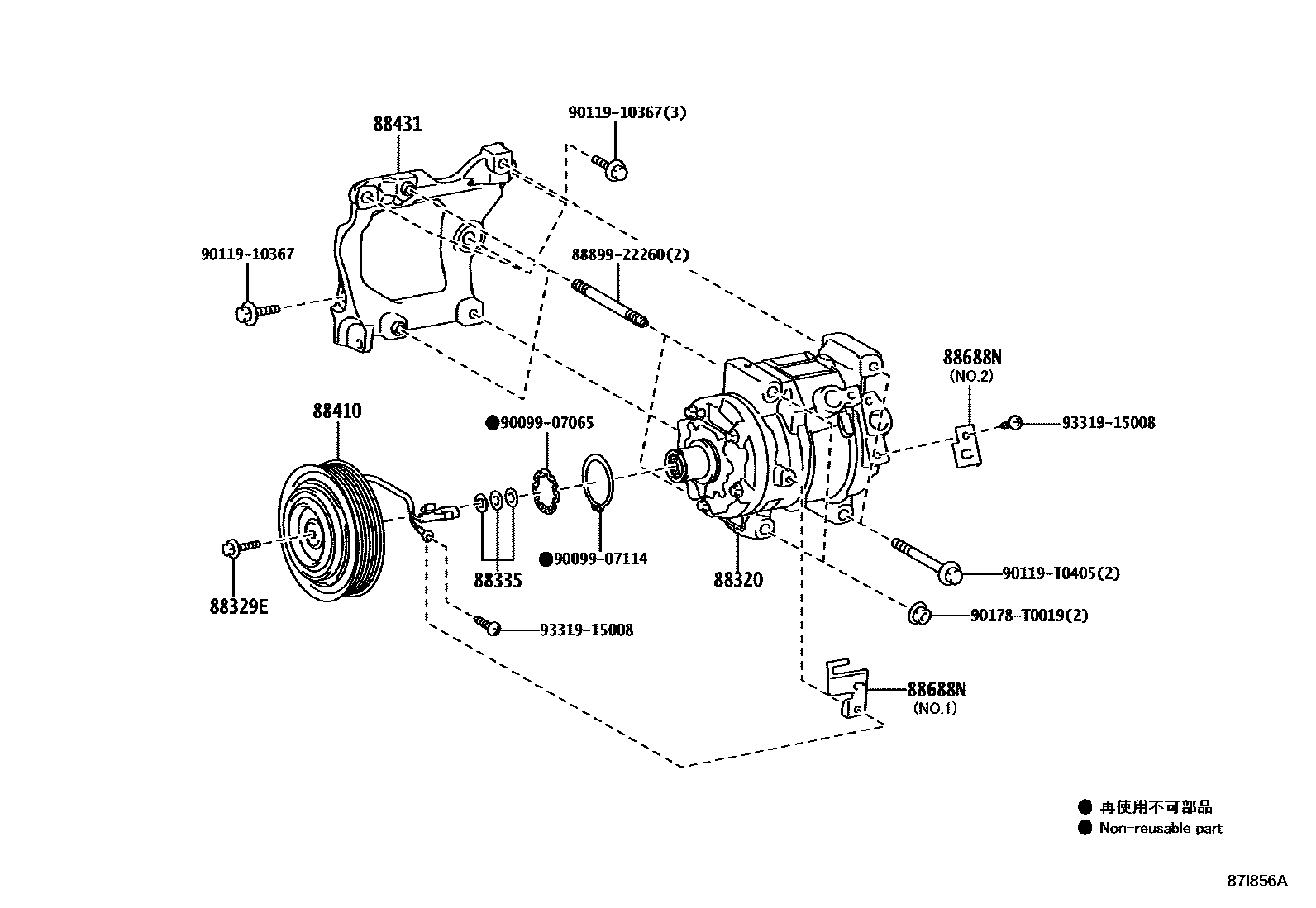

Toyota FORTUNER — HEATING & AIR CONDITIONING - COMPRESSOR
88320COMPRESSOR ASSY, COOLER
88329EBOLT, COMPRESSOR, NO.1
88335GASKET KIT, OVERHAUL
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88688NBRACKET, COOLER
NO.1
NO.2
8889922260COVER, EVAPORATOR
main88899-22260
9009907065
main90099-07065
9009907114
main90099-07114
9011910367
main90119-10367
90119T0405
main90119-T0405
90178T0019
main90178-T0019
9331915008
main93319-15008
13 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota FORTUNER
This section contains 17 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota FORTUNER. Key components include: COMPRESSOR ASSY, COOLER, BOLT, COMPRESSOR, NO.1, GASKET KIT, OVERHAUL, CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1.
