Toyota FORTUNER (SUV) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0K070×2i202208

ANGLE 0

main85381-0K080×2i202208-202307

ANGLE -2

main85381-0K090×2i202208-202310

ANGLE +2

85301INLET SUB-ASSY, WASHER

main85301-0K031i202209-202309

main85301-0K100i202210-202309

main85301-0K111i202208-202403

main85301-0K140i202211-202310

main85301-0K160i202209-202308

main85301-0K190i202301-202401

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K052i202208-202308

85319EINLET WASHER

main85318-0K100i202210-202309

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K230i202209-202309

main85315-0K240i202210-202309

main85315-0K250i202208-202307

main85315-0K270i202301-202401

main85315-0K360i202211-202310

main85315-0K460i202209-202308

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202208-202307

85332CAP, WINDSHIELD WASHER JAR

main85316-0K100i202210-202309

main85316-16070i202209-202308

main85316-YE011i202208

main85386-0K140i202211-202310

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i202208-202401

85336JPROTECTOR, WASHER JAR

main85372-0K020i202208-202309

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-02330i202210-202309

main85375-06101i202208-202401

main85375-10260i202209-202308

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i202209-202308

main85377-0D040i202208-202401

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-02330i202210-202309

main85375-06101i202208-202307

main85375-10260i202209-202309

85355VALVE, WINDSHIELD WASHER HOSE

main85321-0A010i202301-202308

main85321-28020i202208-202309

main85348-14390i202208-202308

85369CLAMP

main82711-0K070×3i202208-202401

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33160i202208-202403

L=40

main90068-33261i202209-202309

L=40

main90069-46081i202210-202309

L=300

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59152i202208-202403

L=1445

main90068-59153i202209-202308

L=1445

main90069-46096i202210-202309

L=1445

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33295i202208-202308

L=685

main90068-33298i202209-202309

L=685

main90069-46078i202210-202309

L=40

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90068-33257i202208-202403

L=430

main90068-33264i202209-202308

L=430

main90069-46077i202210-202309

L=430

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33019×2i202208-202307

L=40

main90068-33251×2i202208-202308

L=235

main90068-33256×2i202209-202309

L=235

main90068-33394×2i202209-202308

L=40

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

9011906767

main90119-06767

90119T0144

main90119-T0144

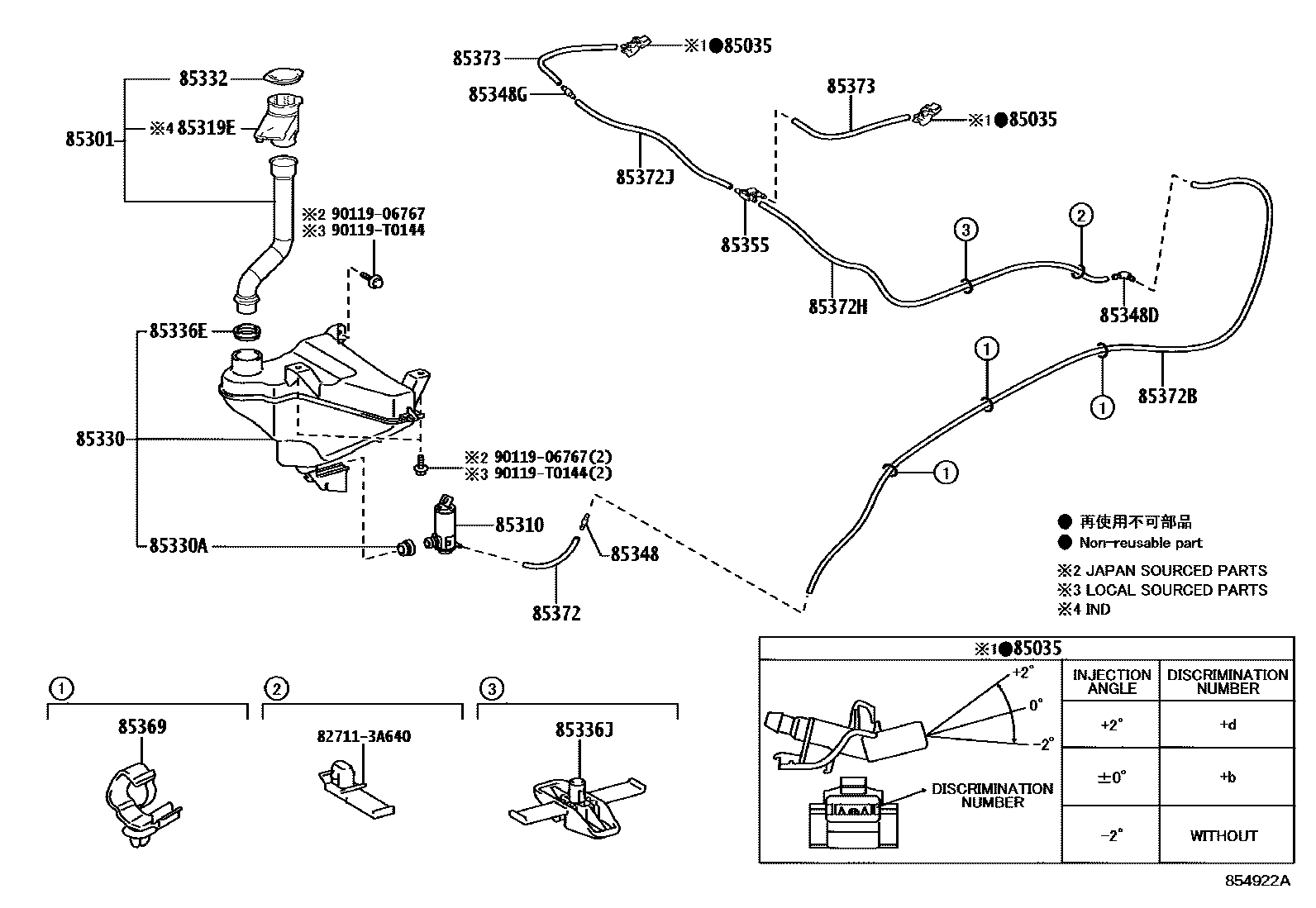

22 parts on this diagram · 4 diagrams in section

WINDSHIELD WASHER for Toyota FORTUNER (SUV)

This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota FORTUNER (SUV). Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, INLET WASHER, JAR ASSY, WINDSHIELD WASHER.
