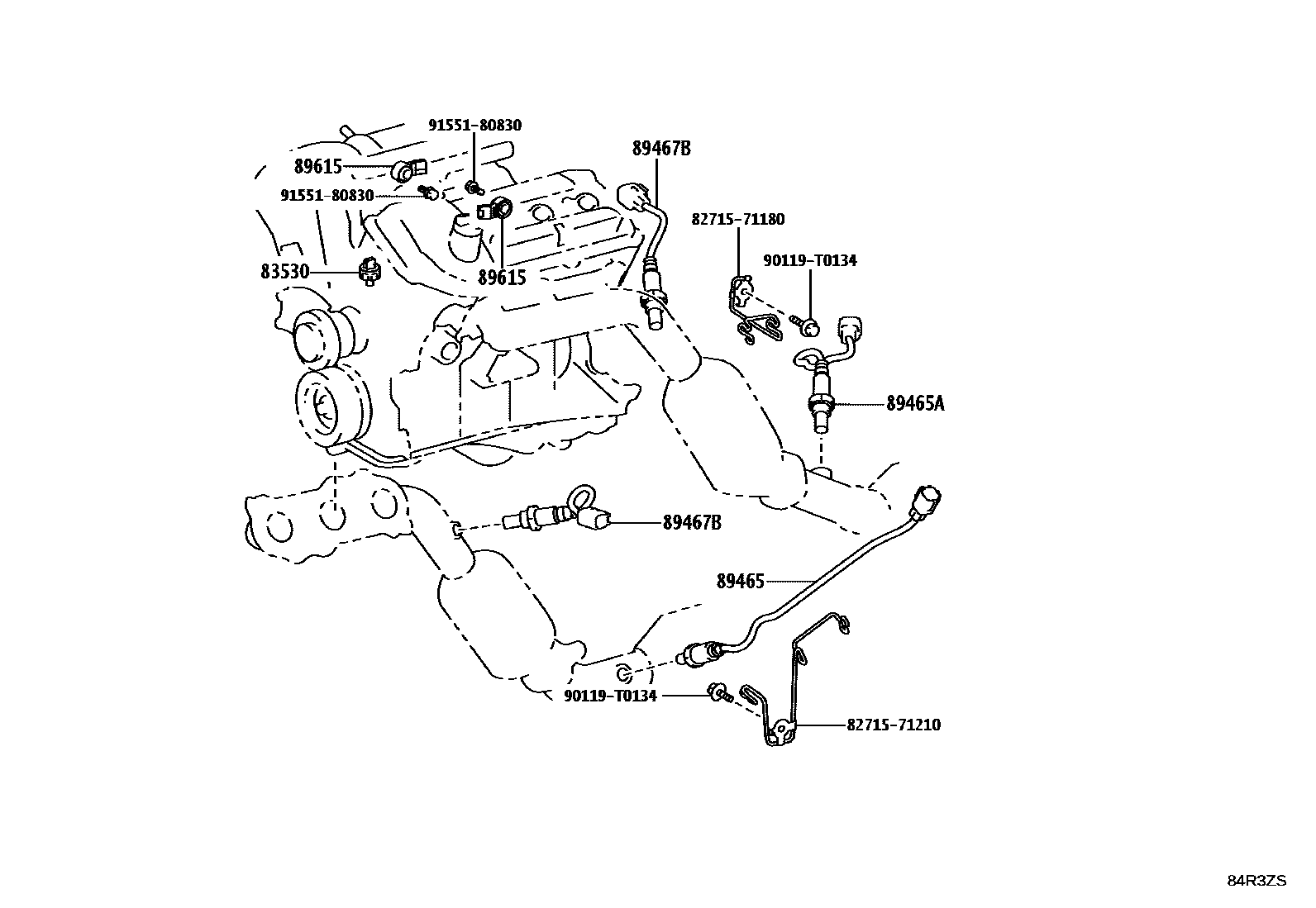

Toyota FORTUNER (SUV) — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1TRANSMISSION 2WD 0005 1TRANSMISSION 4WD 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 1/2 0012 1COWL 1/2 0013 1COWL 2/2 0014 1COWL 2/2 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1CONSOLE BOX 0018 1STEERING 0019 1SEAT 0020 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iGUN155,165..LHD..(LA,SA);GUN155,16#..RHD..(GEN,SA);GUN156..(IDNP,SAP,THP)..(GEN,SA)202408

DENSO,*369

main83530-28020iGGN155,TGN156,166..AGTP,IDNP,MAP,SAP,THP,VNP202408

DENSO,*369

main83530-60010iGUN155,165..LHD..(LA,SA);GUN155,16#..RHD..(GEN,SA);GUN156..(IDNP,SAP,THP)..(GEN,SA)202408

YAZAKI,*369

main83530-60020iGGN155,TGN156,166..AGTP,IDNP,MAP,SAP,THP,VNP202408

YAZAKI,*369

89465SENSOR, OXYGEN

main89465-0K180iGGN155202408

main89465-0K190iTGN166..AGTP,IDNP,THP,VNP202408

main89465-0K200iTGN156202408

89465ASENSOR, OXYGEN NO.2

main89465-0K170iGGN155202408

89467BSENSOR, AIR FUEL RATIO

main89467-71110iGGN155202408

main89467-71120iGUN155..(H,S)..GCC202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main89467-71130iTGN156,166..AGTP,IDNP,MAP,SAP,THP,VNP202408

89615SENSOR, KNOCK CONTROL

main89615-20090iGGN155202408

8271571180BRACKET,WIRING HARNESS CLAMP

main82715-71180

8271571210BRACKET,WIRING HARNESS CLAMP

main82715-71210

90119T0134

main90119-T0134

9155180830

main91551-80830

9 parts on this diagram · 20 diagrams in section
