Toyota FORTUNER (SUV) — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1TRANSMISSION 1/2 0005 1TRANSMISSION 2/2 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 1/2 0012 1COWL 1/2 0013 1COWL 2/2 0014 1COWL 2/2 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1CONSOLE BOX 0018 1STEERING 0019 1SEAT 0020 1DOOR,ROOF,FLOOR & BACK DOOR

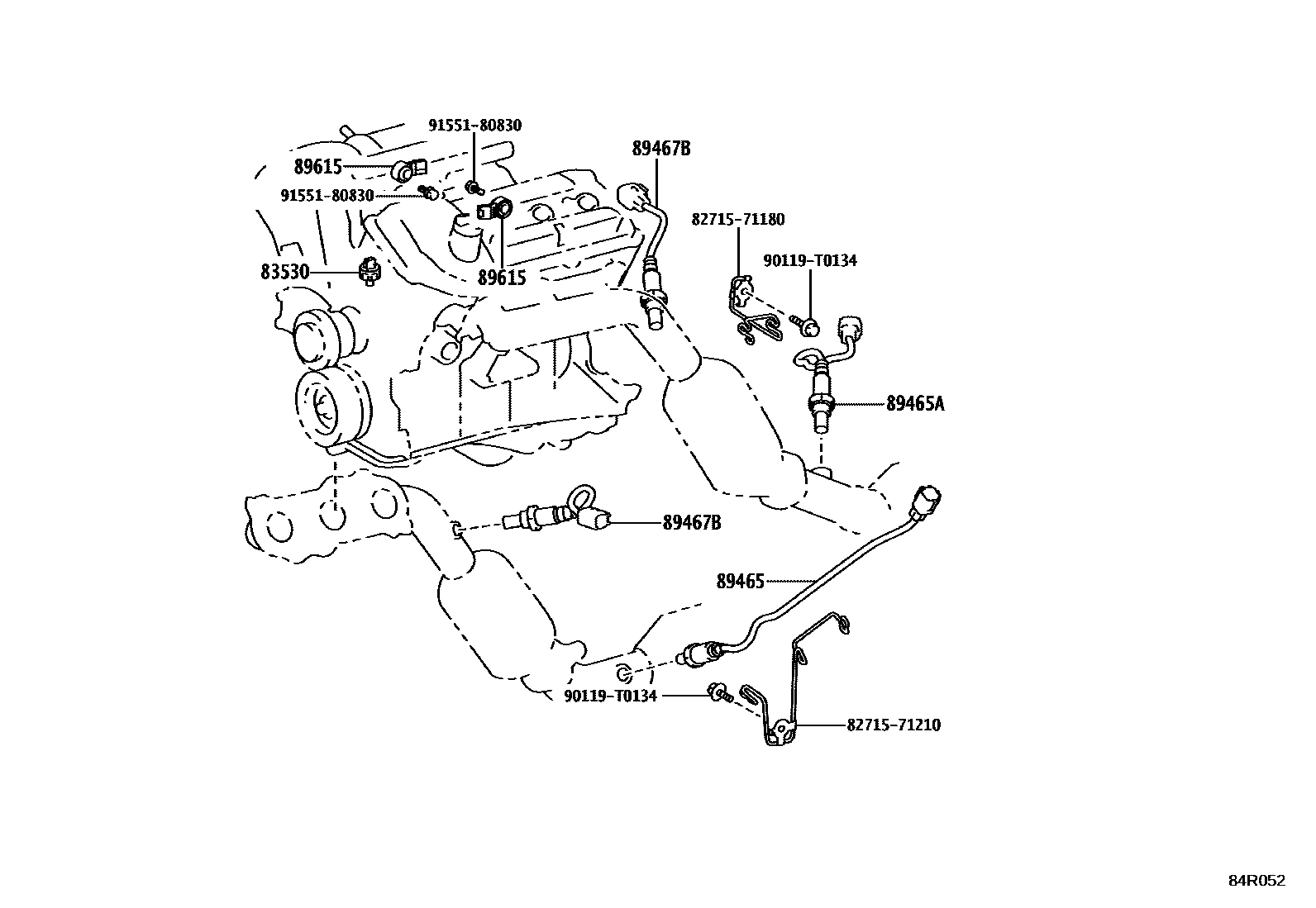

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010supersedes 83530-60010iGUN15#,16#..SAP202308-202410

DENSO,*369

main83530-28020iGGN155,TGN156,166..AGTP,SAP202308-202410

DENSO,*369

main83530-60010iGUN156..PKN202308

YAZAKI,*369

main83530-60020iTGN166..INDP,VNP202308-202409

YAZAKI,*369

89465SENSOR, OXYGEN

main89465-0K180iGGN155..EPT202308

main89465-0K190iTGN166..EPT,PKN202308

main89465-0K200iTGN156..LA202308-202411

89465ASENSOR, OXYGEN NO.2

main89465-0K170iGGN155..LA202308-202411

89467BSENSOR, AIR FUEL RATIO

main89467-71110iGGN155..EPT202308

main89467-71120iGUN155..IDNP..L..GCC;GUN156,165..IDNP..(ARL,GCC,VN)202308-202408

main89467-71130iTGN156,166..(IDNP,INDP,MAP,VNP)..(GCC,GEN,IDN,IND,MA,VN)202308-202409

89615SENSOR, KNOCK CONTROL

main89615-20090iTGN156,166..THP202308-202407

8271571180BRACKET,WIRING HARNESS CLAMP

main82715-71180

8271571210BRACKET,WIRING HARNESS CLAMP

main82715-71210

90119T0134

main90119-T0134

9155180830

main91551-80830

9 parts on this diagram · 20 diagrams in section
