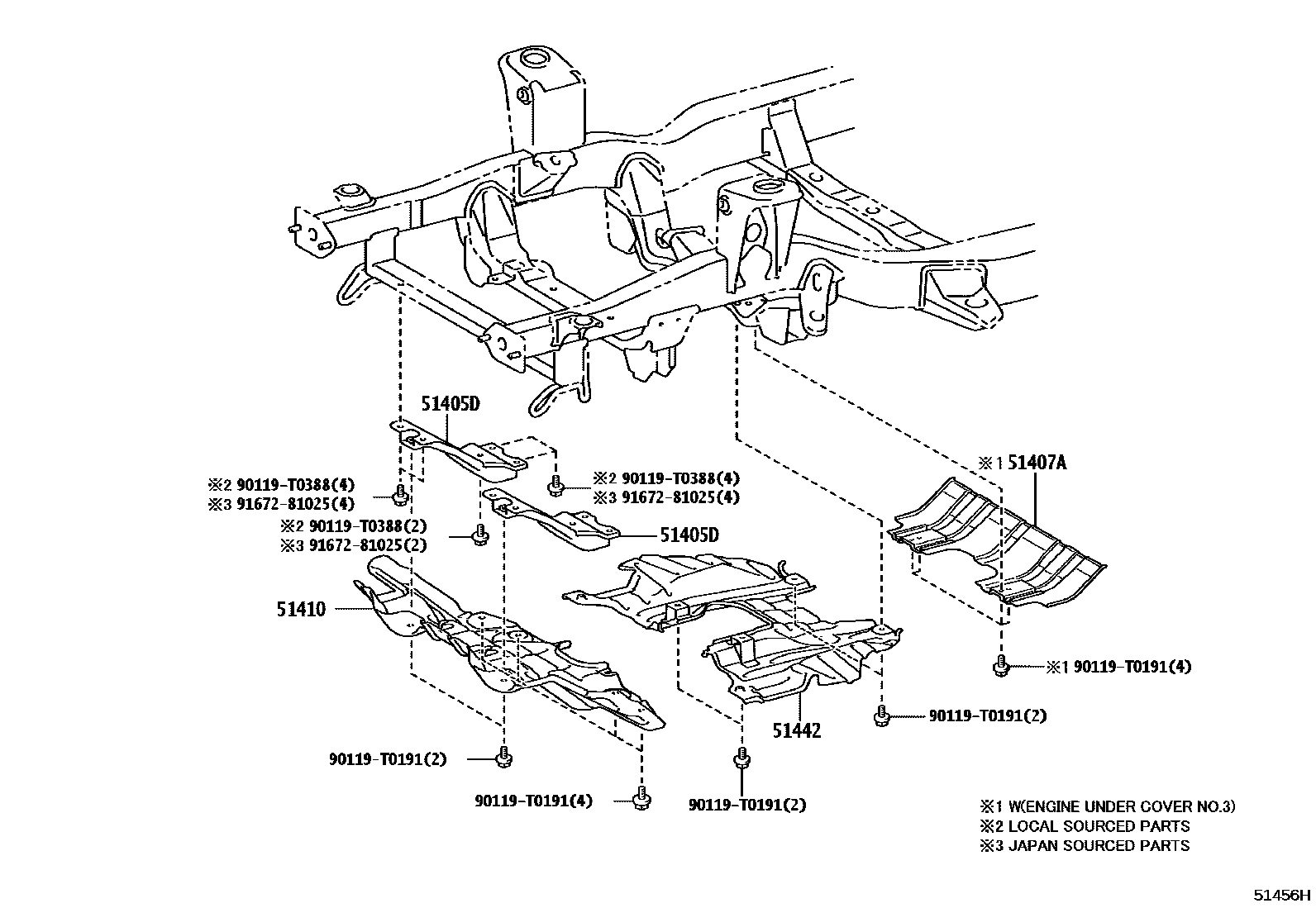

Toyota FORTUNER (SUV) — SUSPENSION CROSSMEMBER & UNDER COVER
51405DBRACE SUB-ASSY, ENGINE UNDER
51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3
51410COVER ASSY, ENGINE UNDER, NO.1
main51410-KK010iGUN165..PH,VN;TGN156,166..IDN,MA,VN;GUN155,165..RHD..(IDNP,MAP,THP);GUN156,166..GEN,IDN,MA,PH,TH,VN202408
main51410-KK020iGUN155..LHD..GEN;GUN165..LHD..IDNP..GEN;GUN15#..ARL,BZAGT,GCC,KEN,LA,SA;GUN165..(AGTP,SAP,THP)..(GEN,LA,SA);GGN155,GUN166,TGN156,166..GCC,GEN,LA,SA202408
51442COVER, ENGINE UNDER, NO.2
main51420-KK010iGUN165..PH,VN;TGN156,166..IDN,MA,VN;GUN155,165..RHD..(IDNP,MAP,THP);GUN156,166..GEN,IDN,MA,PH,TH,VN202408
main51420-KK020iGUN155..LHD..GEN;GUN165..LHD..IDNP..GEN;GUN15#..ARL,BZAGT,GCC,KEN,LA,SA;GUN165..(AGTP,SAP,THP)..(GEN,LA,SA);GGN155,GUN166,TGN156,166..GCC,GEN,LA,SA202408
90119T0191
main90119-T0191
90119T0388
main90119-T0388
9167281025
main91672-81025
7 parts on this diagram · 1 diagram in section
SUSPENSION CROSSMEMBER & UNDER COVER for Toyota FORTUNER (SUV)
This section contains 7 genuine Toyota parts for the SUSPENSION CROSSMEMBER & UNDER COVER system of the Toyota FORTUNER (SUV). Key components include: BRACE SUB-ASSY, ENGINE UNDER, COVER SUB-ASSY, ENGINE UNDER, NO.3, COVER ASSY, ENGINE UNDER, NO.1, COVER, ENGINE UNDER, NO.2.
