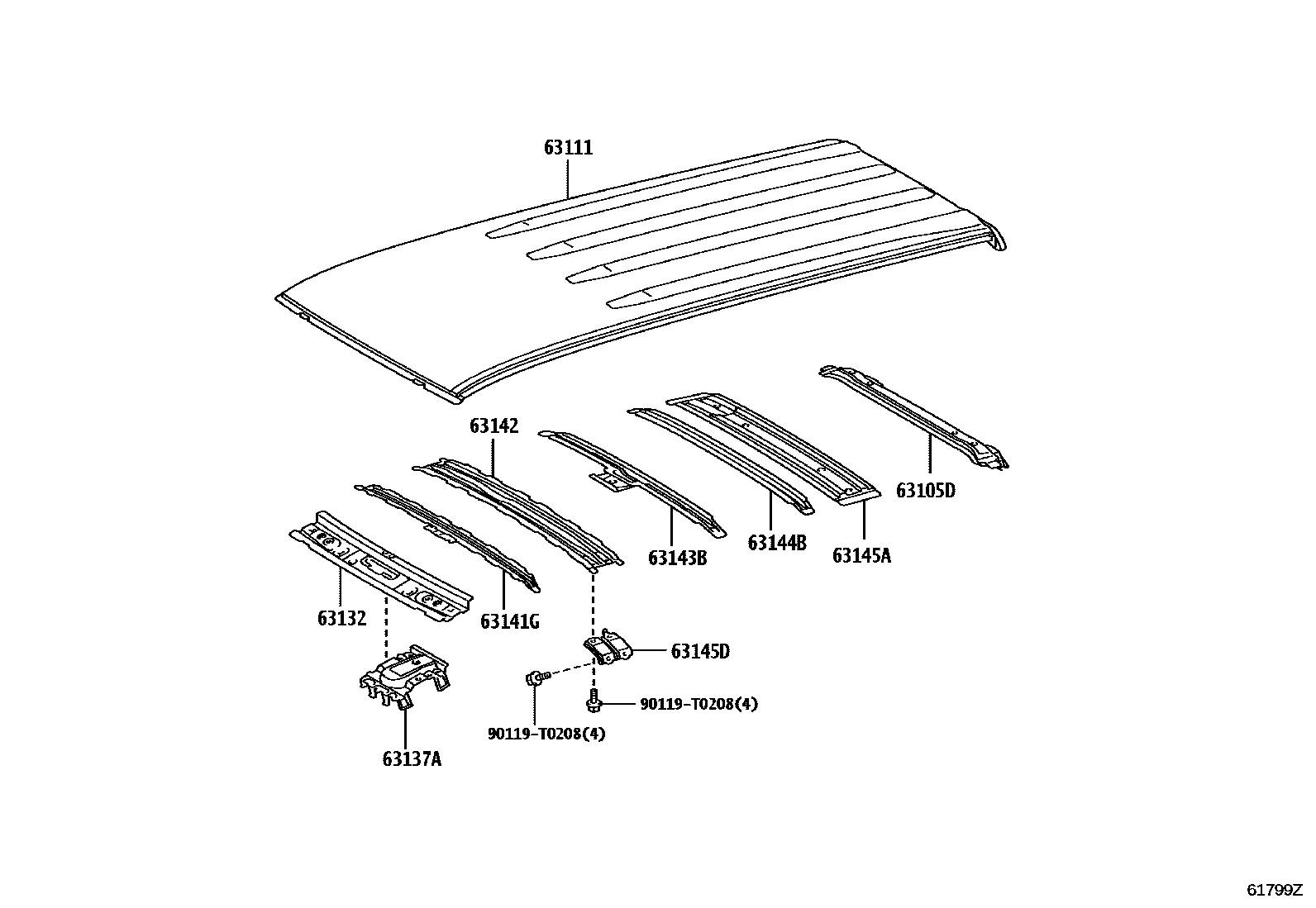

Toyota FORTUNER (SUV) — ROOF PANEL & BACK PANEL
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
main63105-KK020iGUN15#,TGN156..IDNP..GCC;GGN155,GUN166,TGN166..GCC,SA,TH;GUN15#,165,TGN156..CAMP,KENP,MAP,SAP,THP202408
main63105-KK080iGGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,VNP)..(ARL,BZAGT,GEN,IDN,LA,PH,SA,VN)202409
63111PANEL, ROOF
main63111-KK040iGGN155..GEN;GUN156,TGN166..6FC..(L,S)..(LA,VN);GUN155,16#,TGN156..(6F,6FC)..L..(GCC,GEN,LA); TGN156..SA;GUN156,165,TGN166..(IDNP,THP)..L;GUN15#,165..LHD..(SAP,VNP)..(L,S)202408
ROOF RAIL-WITHOUT
main63111-KK050iGUN155..L..SA;GUN165..H..VN;GUN165..GEN,IDN,LA,SA;TGN166..GEN,IDN,LA,VN;TGN156..GCC,GEN,LA,MA,VN;GUN155..IDNP,KENP,MAP,THP;GGN155,GUN166..AGTP,IDNP,SAP,THP;GUN165..(IDNP,THP)..(H,S)..(PH,TH,VN);GUN156..LHD..(AGTP,CAMP,IDNP,THP,VNP);GUN156..RHD..(IDNP,KENP,MAP,SAP,THP)..(H,S)202408
63132PANEL, WINDSHIELD HEADER, INNER
63137ABRACKET, DOME LAMP, NO.1
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144BREINFORCEMENT, ROOF PANEL, NO.4
63145AREINFORCEMENT, ROOF PANEL, NO.5
63145DBRACKET, ROOF REINFORCEMENT
90119T0208
main90119-T0208
11 parts on this diagram · 3 diagrams in section
ROOF PANEL & BACK PANEL for Toyota FORTUNER (SUV)
This section contains 30 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota FORTUNER (SUV). Key components include: FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, BRACKET, DOME LAMP, NO.1, REINFORCEMENT, ROOF PANEL, NO.1.
