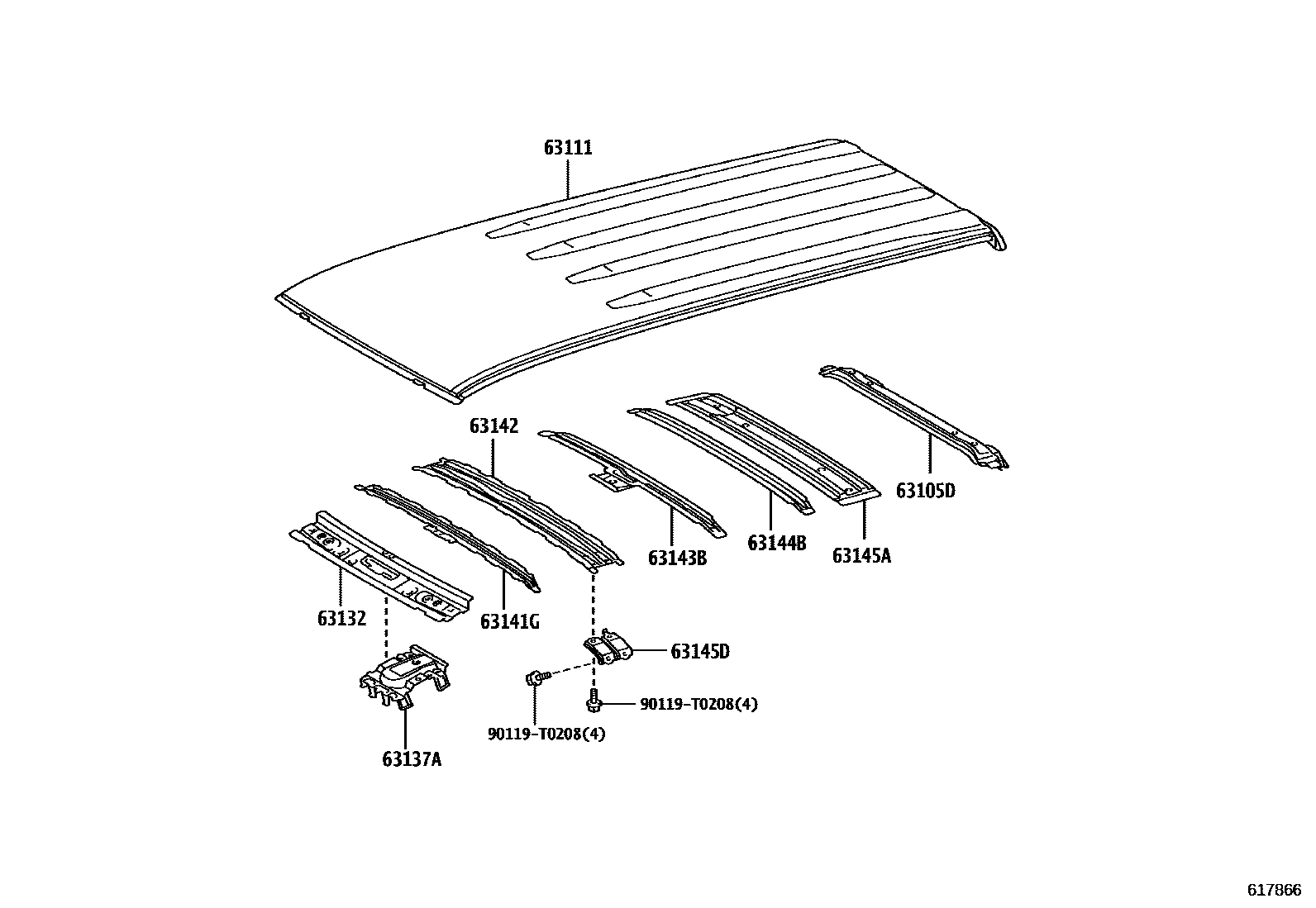

Toyota FORTUNER (SUV) — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF RAIL 0003 1ROOF RAIL

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-KK020iGGN155,GUN156,TGN156,166..EPT,PKN202308

main63105-KK080iGUN156,16#,TGN166..INDP,VNP202309-202409

63111PANEL, ROOF

main63111-KK040iGUN156,TGN166..THP..L202308-202407

ROOF RAIL-WITHOUT

main63111-KK050supersedes 63111-KK040iGUN156..RHD..(KEN,SA);GGN155,GUN16#,TGN166..LA,SA;GUN15#,TGN156..(AGTP,KENP,SAP)..(H,L)202308-202410

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK021iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

main63132-KK031iGUN156,166,TGN166..IND202310-202409

63137ABRACKET, DOME LAMP, NO.1

main63137-KK030iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63104-KK010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-KK050iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63103-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63106-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK030×2iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

90119T0208

main90119-T0208

11 parts on this diagram · 3 diagrams in section
