Toyota FORTUNER (SUV) — ROOF PANEL & BACK PANEL

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-KK020i202208-202308

main63105-KK080i202209-202308

63111PANEL, ROOF

main63111-KK040i202208-202307

ROOF RAIL-WITHOUT

main63111-KK050supersedes 63111-KK040i202208

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK021i202303-202310

main63132-KK031i202303-202403

main63132-KK900i202208-202303

main63132-KK902i202210-202303

63137ABRACKET, DOME LAMP, NO.1

main63137-KK030i202208-202307

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63104-KK010i202208-202307

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-KK050i202208-202403

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63103-KK010i202208-202310

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-KK010i202208-202307

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63106-KK010i202208-202307

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK030×2i202208-202307

90119T0208

main90119-T0208

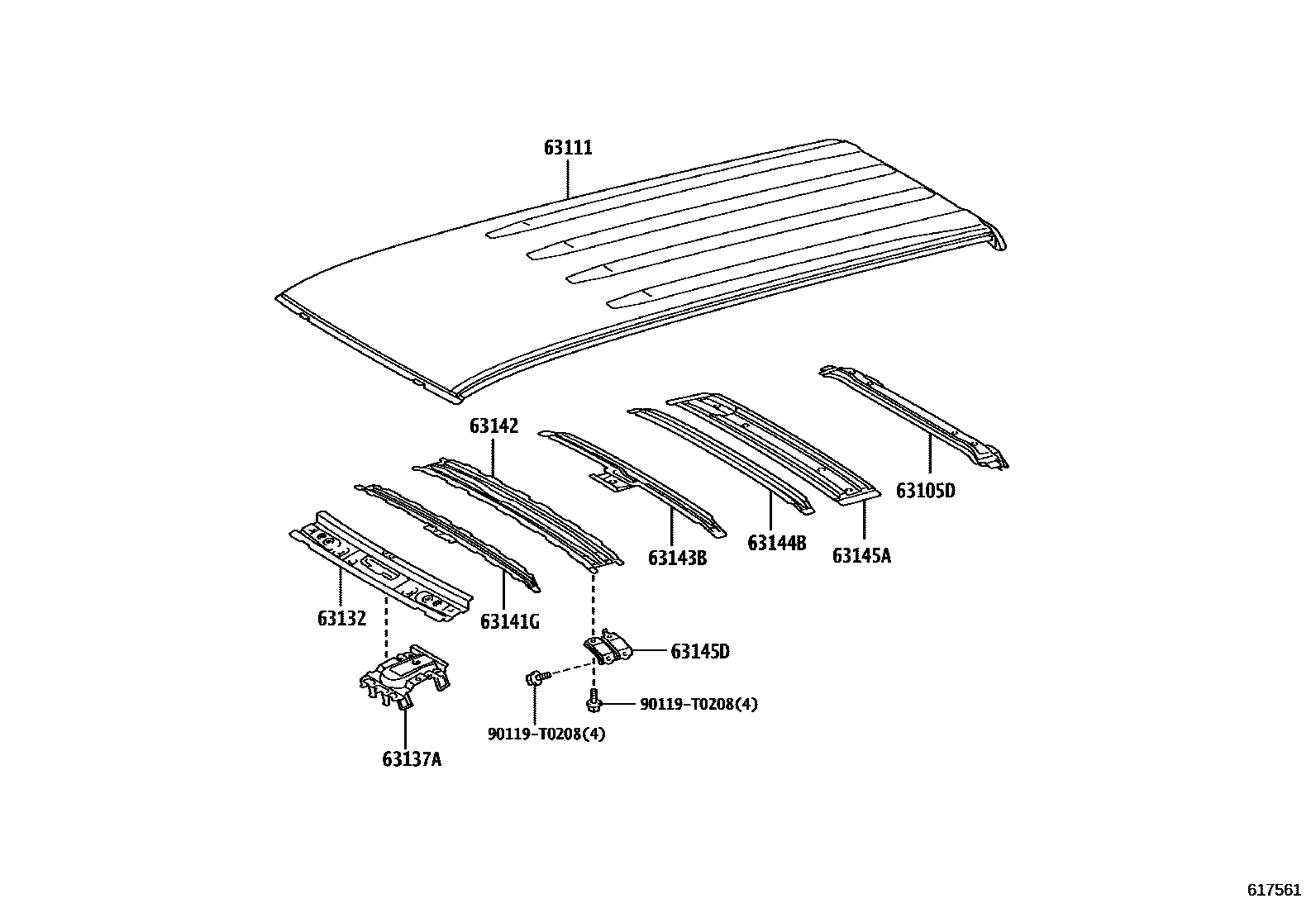

11 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK PANEL for Toyota FORTUNER (SUV)

This section contains 30 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota FORTUNER (SUV). Key components include: FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, BRACKET, DOME LAMP, NO.1, REINFORCEMENT, ROOF PANEL, NO.1.
