Toyota FORTUNER (SUV) — PACKAGE TRAY PANEL

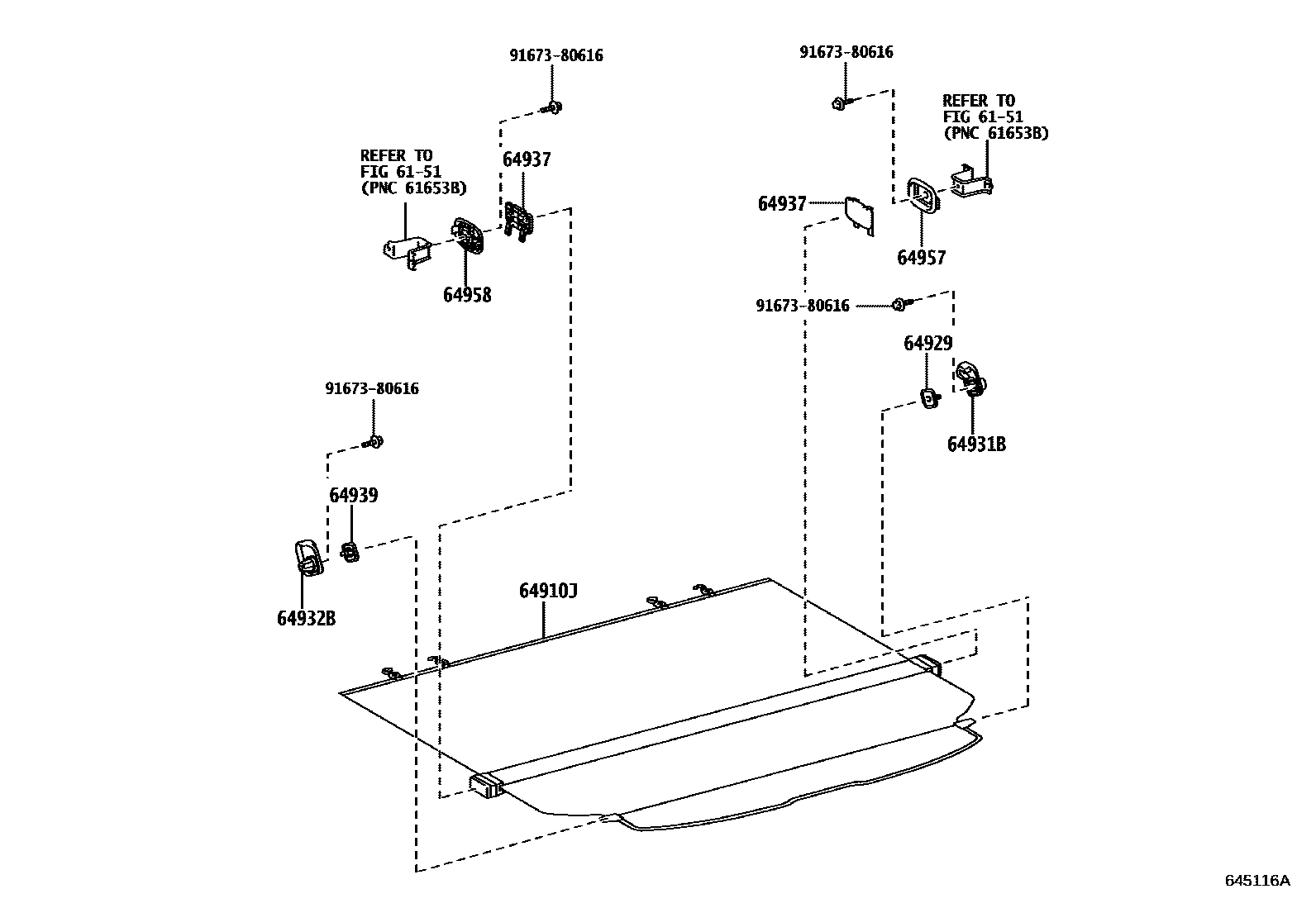

Parts diagram
6151SIDE MEMBER
→ Go to FIG 61-51
64910JCOVER ASSY, TONNEAU
main64910-71020-C0i202111-202210
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
64929COVER, TONNEAU COVER HOLDER, RH
main62538-71010-C0i202111-202210
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
64931BHANGER, TONNEAU COVER, RH
main64931-71020-C0i202111-202210
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
64932BHANGER, TONNEAU COVER, LH
main64932-71020-C0i202111-202210
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
64937CAP, TONNEAU COVER HOLDER, NO.1
main62538-0K080-C0×2i202111-202210
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
64939COVER, TONNEAU COVER HOLDER, LH
main62538-71010-C0i202111-202210
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
64957RETAINER, TONNEAU COVER, RH
main64957-71010-C0i202111-202210
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
64958RETAINER, TONNEAU COVER, LH
main64958-71010-C0i202111-202210
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
9167380616
main91673-80616

10 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL for Toyota FORTUNER (SUV)

This section contains 10 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota FORTUNER (SUV). Key components include: SIDE MEMBER, COVER ASSY, TONNEAU, COVER, TONNEAU COVER HOLDER, RH, HANGER, TONNEAU COVER, RH, HANGER, TONNEAU COVER, LH.
