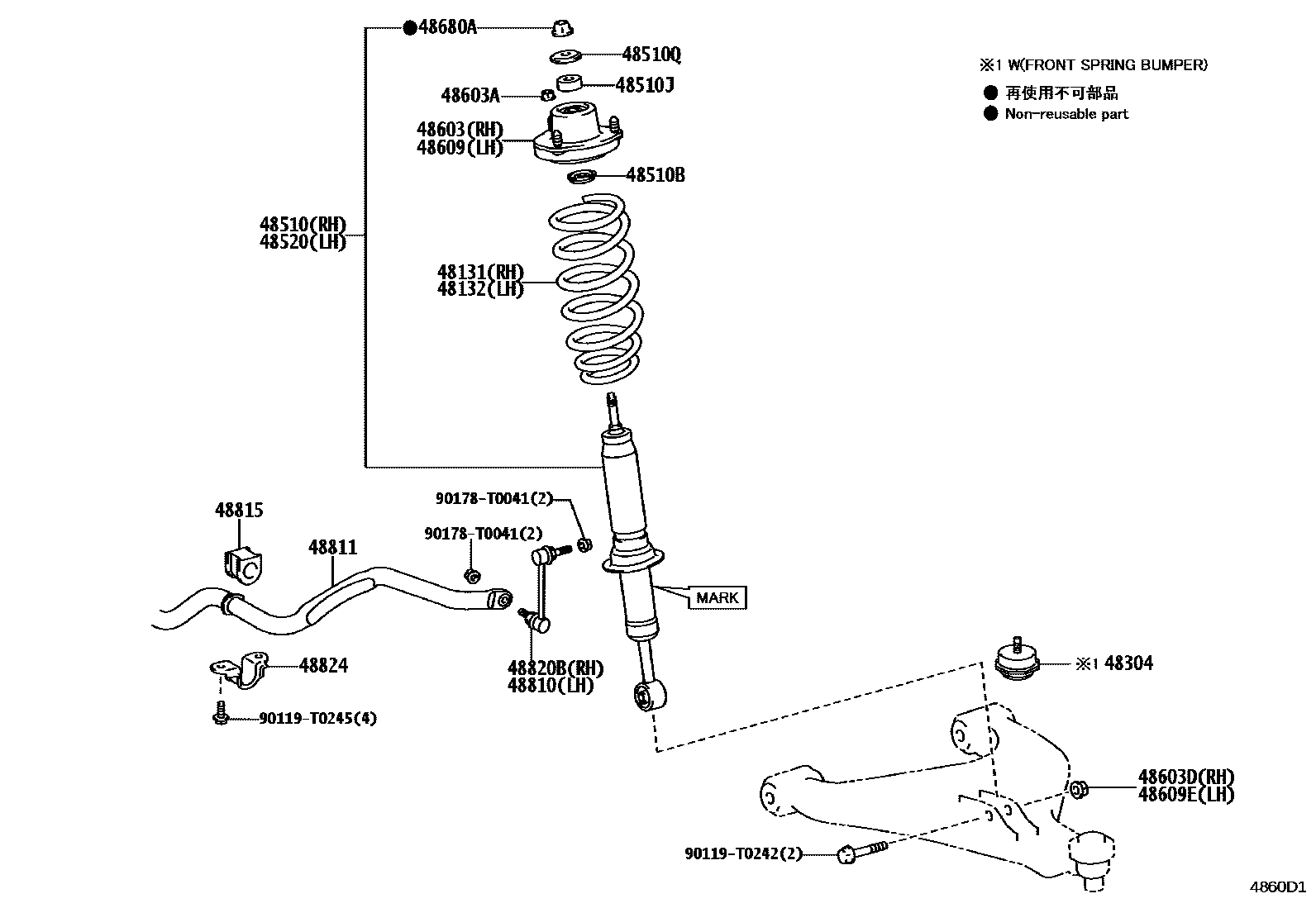

Toyota FORTUNER (SUV) — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
GR SPORT
GR SPORT
GR SPORT & ACCESSORY
GR SPORT
48132SPRING, FRONT COIL, LH
GR SPORT
GR SPORT & ACCESSORY
GR SPORT & ACCESSORY
GR SPORT
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
main48304-0K041×2iGUN156..THP..TH;GUN156..(KENP,MAP,PKNP,SAP,THP)..(ARL,GCC,GEN,KEN,MA,PKN,SA);GGN155,GUN155,16#,LAN155,TGN156,166..EPTP,KENP,MAP,PKNP,SAP,THP202208
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-71020; MARK 48510-71020,BRAZIL SPEC
MARK 48510-0KF50
MARK 48510-0KA10
MARK 48510-0KB40
main48510-8Z208iGGN155,GUN15#..(AGTP,EPTP,INDP,THP,VNP)..(ARL,BZAGT,EPT,GCC,GEN,IND,LA,VN)202208-202403
MARK 48510-0KA20
MARK 48510-0KG80
MARK 48510-0KC90
MARK 48510-0KD10
MARK 48510-0KD30
MARK 48510-0K480; MARK 48510-0K480,GR SPORT
MARK 48511-YY060,GR SPORT & ACCESSORY
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
MADE IN INDIA
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-71020; MARK 48510-71020,BRAZIL SPEC
MARK 48510-0KF50
MARK 48510-0KA10
MARK 48510-0KB40
main48510-8Z208iGGN155,GUN15#..(AGTP,EPTP,INDP,THP,VNP)..(ARL,BZAGT,EPT,GCC,GEN,IND,LA,VN)202208-202403
MARK 48510-0KA20
MARK 48510-0KG80
MARK 48510-0KC90
MARK 48510-0KD10
MARK 48510-0KD30
MARK 48510-0K480; MARK 48510-0K480,GR SPORT
MARK 48511-YY060,GR SPORT & ACCESSORY
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
main48810-0K010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,IDNP,KENP,MAP,PKNP,SAP,THP,VNP202208-202506
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-0K030iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,IDNP,KENP,MAP,PKNP,SAP,THP,VNP202208-202506
48824BRACKET, STABILIZER, FRONT
90119T0242
main90119-T0242
90119T0245
main90119-T0245
90178T0041
main90178-T0041
22 parts on this diagram · 1 diagram in section
FRONT SPRING & SHOCK ABSORBER for Toyota FORTUNER (SUV)
This section contains 22 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota FORTUNER (SUV). Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, BUMPER SUB-ASSY, FRONT SPRING, NO.1, ABSORBER ASSY, SHOCK, FRONT RH, RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER).
