Toyota FORTUNER (SUV) — ACCELERATOR LINK

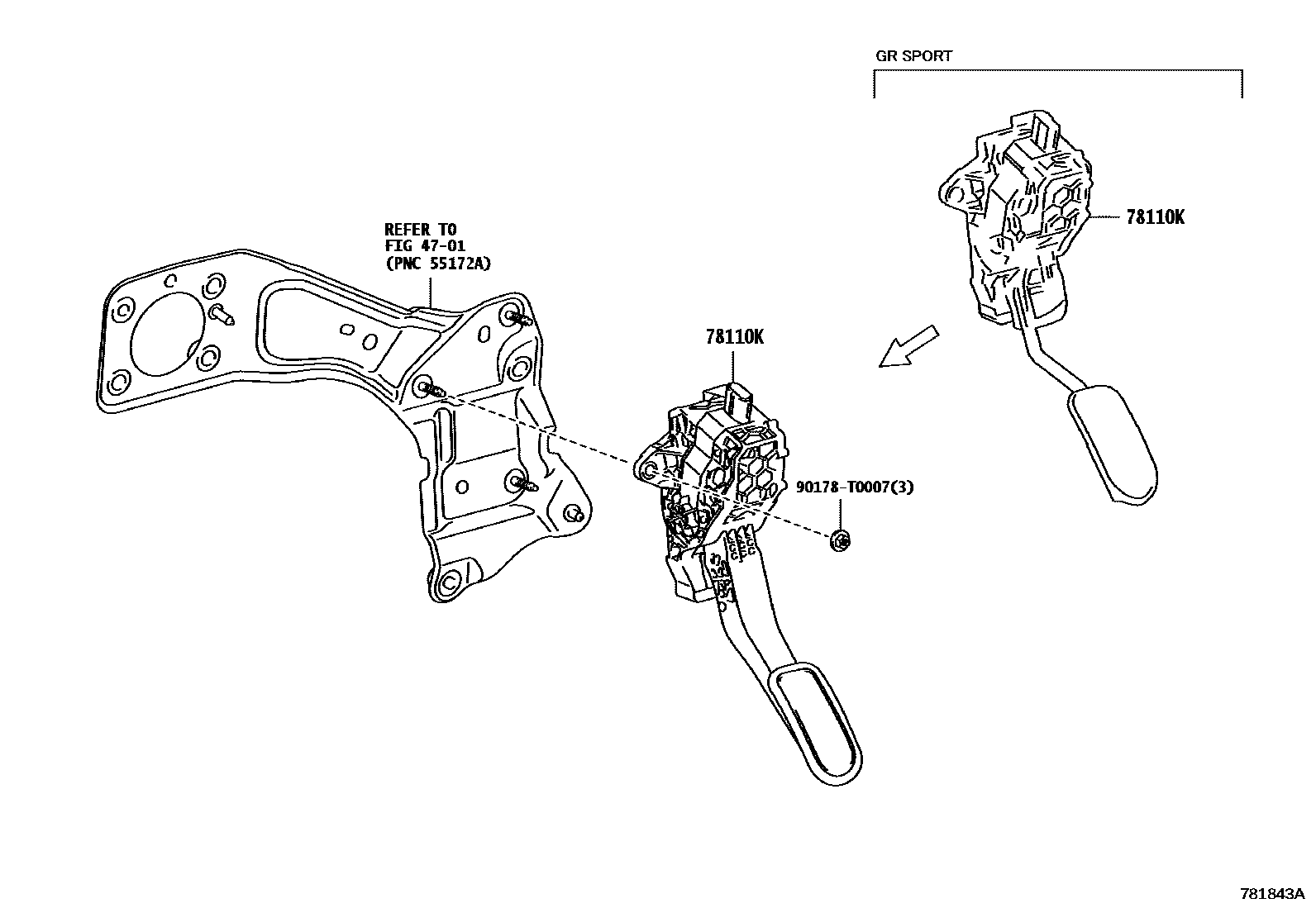

Parts diagram
4701BRAKE PEDAL & BRACKET
→ Go to FIG 47-01
78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
main78110-KK011i202308-202407
main78110-KK021i202308-202407
main78110-KK030i202309
GR SPORT
main78110-KK041i202311-202410
GR SPORT & ACCESSORY
90178T0007
main90178-T0007

3 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota FORTUNER (SUV)

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota FORTUNER (SUV). Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
