Toyota FORTUNER (SUV) — SWITCH & RELAY & COMPUTER

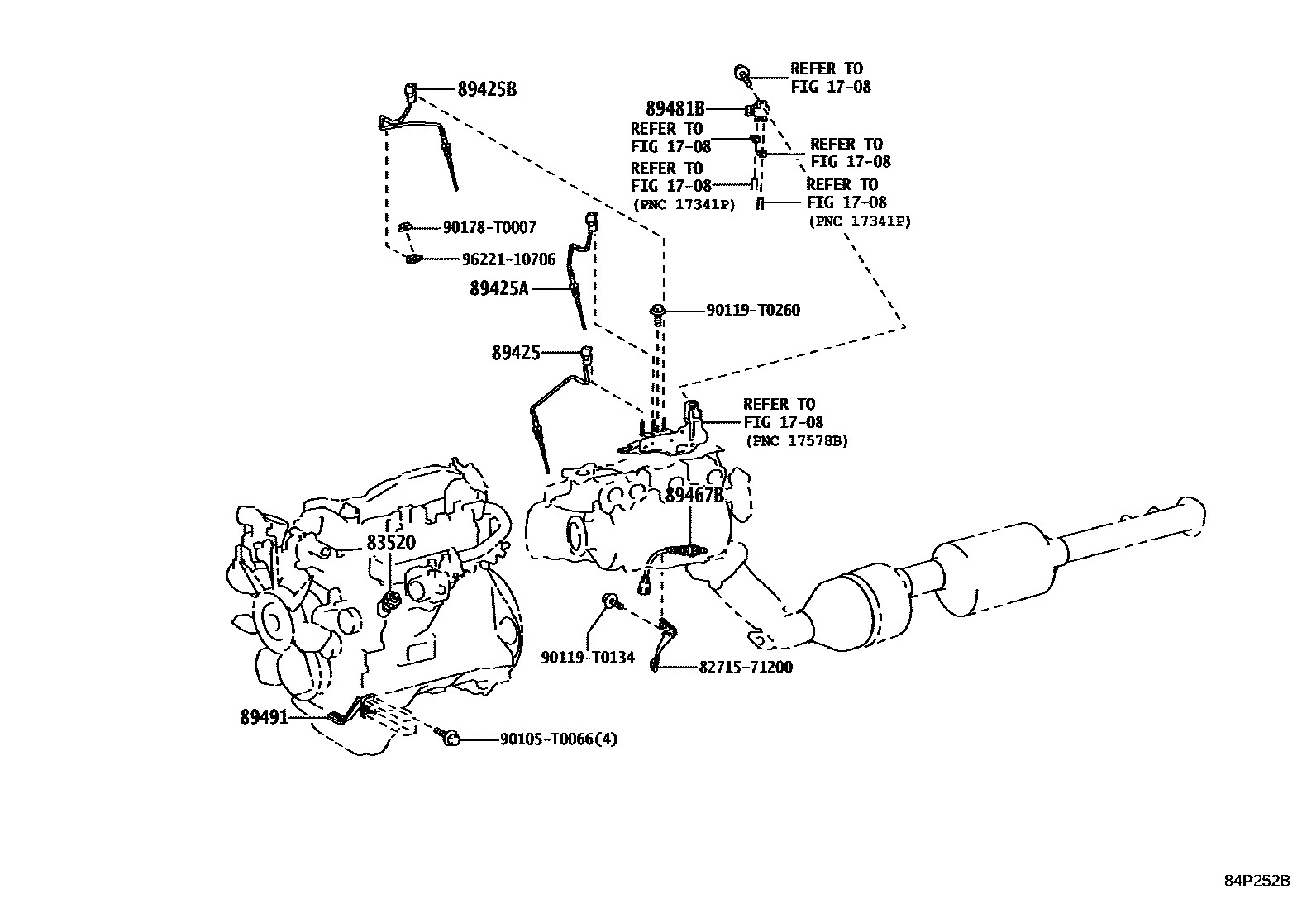

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060i202208-202307

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070i202208-202307

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080i202208-202307

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090i202208-202307

89467BSENSOR, AIR FUEL RATIO

main89467-71120i202208-202307

main89467-71130i202208-202307

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010i202208-202307

89491SENSOR, ENGINE OIL LEVEL

main89491-26190i202208-202307

8271571200BRACKET,WIRING HARNESS CLAMP

main82715-71200

90105T0066

main90105-T0066

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90178T0007

main90178-T0007

9622110706

main96221-10706

14 parts on this diagram · 13 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota FORTUNER (SUV)

This section contains 184 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota FORTUNER (SUV). Key components include: VACUUM PIPING, RELAY, AIR PUMP, RELAY ASSY, STARTER, RELAY ASSY, STARTER, NO.2, RELAY, IGNITION, NO.1.
