Toyota FJ CRUISER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-26210i200601-200709

main85110-60390i200710-201011

85150BLINK ASSY, WIPER

main85150-35210i200601-201011

main85150-35211i201311-201407

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×3i200601-201011

85211BARM, FRONT WIPER, RH

main85211-35140i200601-201011

85212ABLADE, FR WIPER, RH

main85212-35090i200601-200605

main85212-35091i200606-201011

85214ARUBBER, WIPER, RH

main85214-68010i200601-200605

main85214-68011i200606-201011

85214BRUBBER, WIPER, LH

main85214-50060i200601-200606

main85214-50061i200606-201011

85214CRUBBER, WIPER BLADE, CENTER

main85214-68010i200601-200605

main85214-68011i200606-201011

85221BARM, FRONT WIPER, LH

main85221-35140i200601-200705

main85221-35141i200705-201011

85221CARM, FRONT WIPER, CENTER

main85211-35140i200601-201011

85222ABLADE, FR WIPER, LH

main85212-13030i200601-200605

main85212-13031i200606-200702

85222BBLADE, FR WIPER, CENTER

main85212-35090i200601-200605

main85212-35091i200606-201011

9011906864

main90119-06864

9018210006

main90182-10006

9155380620

main91553-80620

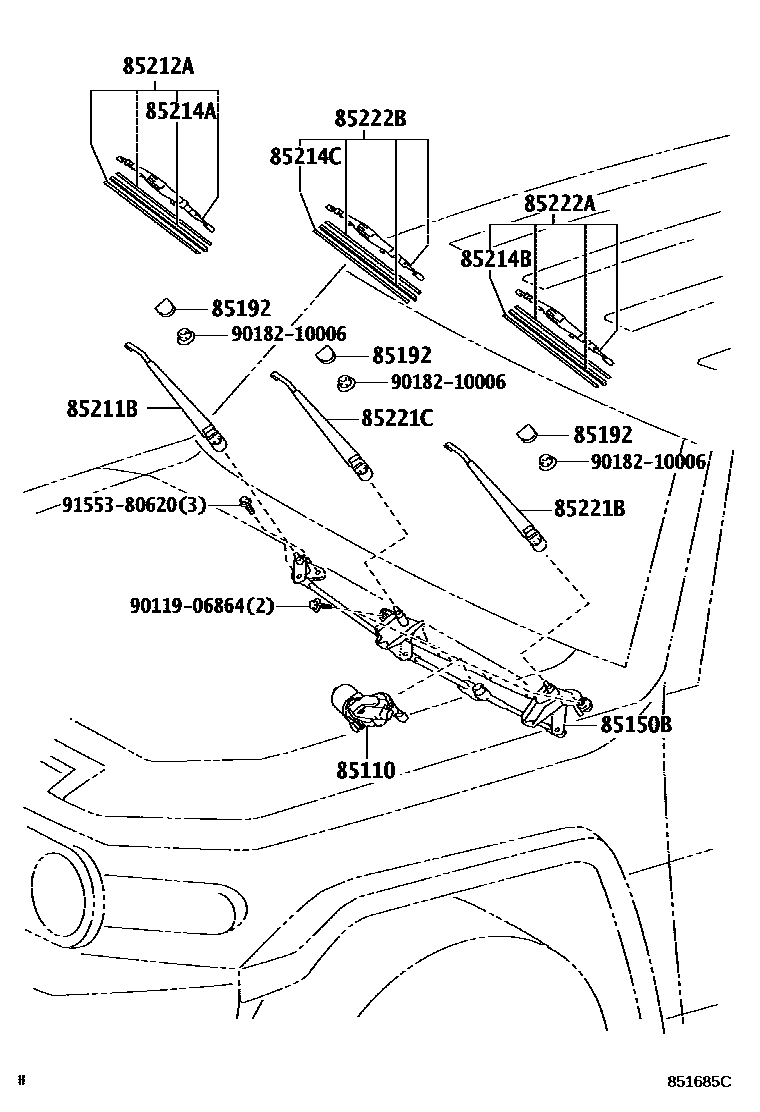

15 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota FJ CRUISER

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota FJ CRUISER. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
