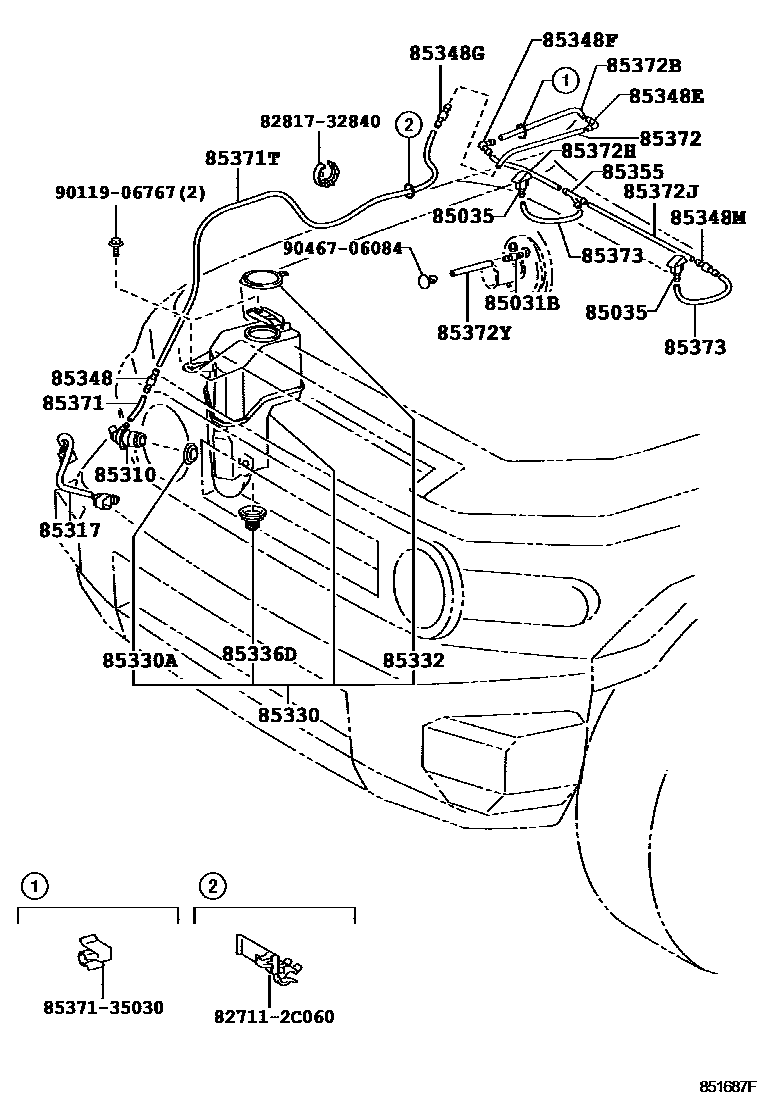

Toyota FJ CRUISER — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85375-12520i201011-201407

85035NOZZLE SUB-ASSY, WASHER

main85381-34030×2i201011-201407

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i201011-201407

85317WIRING ASSY, WASHER

main85317-35330i200707-200908

CANADA SPEC; CANADA SPEC&CONVENIENCE PACKAGE

main85317-35370supersedes 85317-35360i201011-201407

CONVENIENCE PACKAGE

main85317-35380i201011-201407

CANADA SPEC; CANADA SPEC&CONVENIENCE PACKAGE

85330JAR ASSY, WINDSHIELD WASHER

main85315-35330i200707-200908

CANADA SPEC; CANADA SPEC&CONVENIENCE PACKAGE

main85315-35370supersedes 85315-35360i201011-201407

CONVENIENCE PACKAGE

main85315-35380i200908-201011

CANADA SPEC; CANADA SPEC&CONVENIENCE PACKAGE

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201011-201407

85332CAP, WINDSHIELD WASHER JAR

main85316-12290i200601-200908

main85386-60050i201011-201407

85336DPACKING, WINDSHIELD WASHER JAR

main85336-20340i200601-200908

main85336-30160i200908-201011

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i201011-201407

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i201011-201407

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200i200908-201011

main85375-33070i200601-200908

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201011-201407

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260i201011-201407

85355VALVE, WINDSHIELD WASHER HOSE

main85348-12250i201011-201407

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85336-12230i200601-200908

L=15; L=15,CONVENIENCE PACKAGE

main90099-33080i200908-201011

L=1450(*H,L=160); L=1450(*H,L=160),CANADA SPEC; L=1450(*H,L=160),CANADA SPEC&CONVENIENCE PACKAGE; L=1450(*H,L=160),CONVENIENCE PACKAGE

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90099-33080i200707-200908

L=1450(*H,L=920),CANADA SPEC; L=1450(*H,L=920),CANADA SPEC&CONVENIENCE PACKAGE

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080supersedes 90099-62068i200601-200908

L=1450(*H,L=310)

main90099-62068i201102-201407

L=250; L=250,CANADA SPEC; L=250,CANADA SPEC&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=250,CANADA SPEC&CONVENIENCE PACKAGE; L=250,CANADA SPEC&CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=250,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE; L=250,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=250,CONVENIENCE PACKAGE; L=250,CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); L=250,IMAGE PACKAGE&CONVENIENCE PACKAGE; L=250,IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200601-200908

L=1450(*H,L=430)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i200601-200908

L=1450(*H,L=240)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i200601-200908

L=1450(*H,L=610)

85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8

main90446-07001i200601-201011

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200601-201011

L=1450(*H,L=210)

827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C060

8281732840PROTECTOR, WIRING HARNESS, NO.1

main82817-32840

8537135030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-35030

9011906767

main90119-06767

9046706084

main90467-06084

27 parts on this diagram · 4 diagrams in section

WINDSHIELD WASHER for Toyota FJ CRUISER

This section contains 40 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota FJ CRUISER. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
