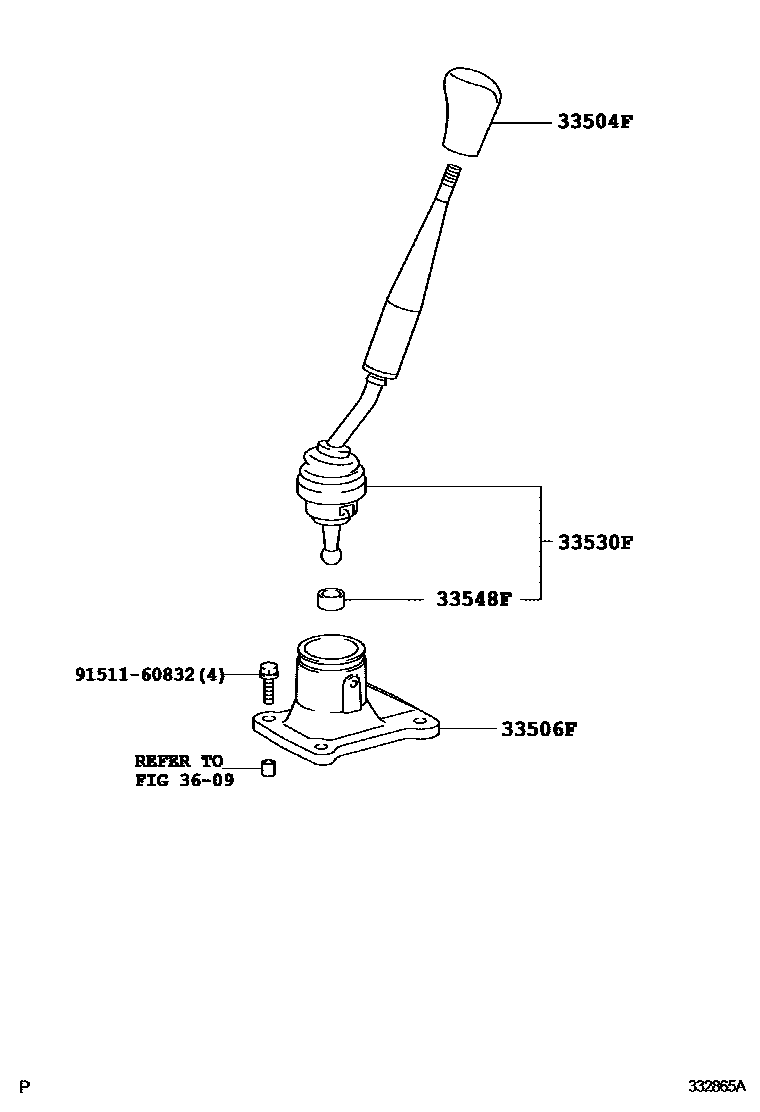

Toyota FJ CRUISER — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35080-B1i201011-201407

DK.GRAY,TRIM1#

main33504-35100-B0supersedes 33504-35093-B0i200601-200711

IMAGE PACKAGE,DK.GRAY,TRIM1#

main33504-35101-B0supersedes 33504-35093-B0i201011-201102

IMAGE PACKAGE,DK.GRAY,TRIM1#

main33504-35103-B0supersedes 33504-35093-B0i201102-201407

IMAGE PACKAGE,DK.GRAY,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-60120i200601-201011

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-35650i200601-200701

main33530-35651i200702-201011

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-60040i200601-200701

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

9151160832

main91511-60832

6 parts on this diagram · 3 diagrams in section

SHIFT LEVER & RETAINER for Toyota FJ CRUISER

This section contains 26 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota FJ CRUISER. Key components include: KNOB SUB-ASSY, SHIFT LEVER, RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT), LEVER ASSY, SHIFT (FOR FLOOR SHIFT), BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT), BULB, POSITION INDICATOR LAMP.
