Toyota FJ CRUISER — REAR SPRING & SHOCK ABSORBER

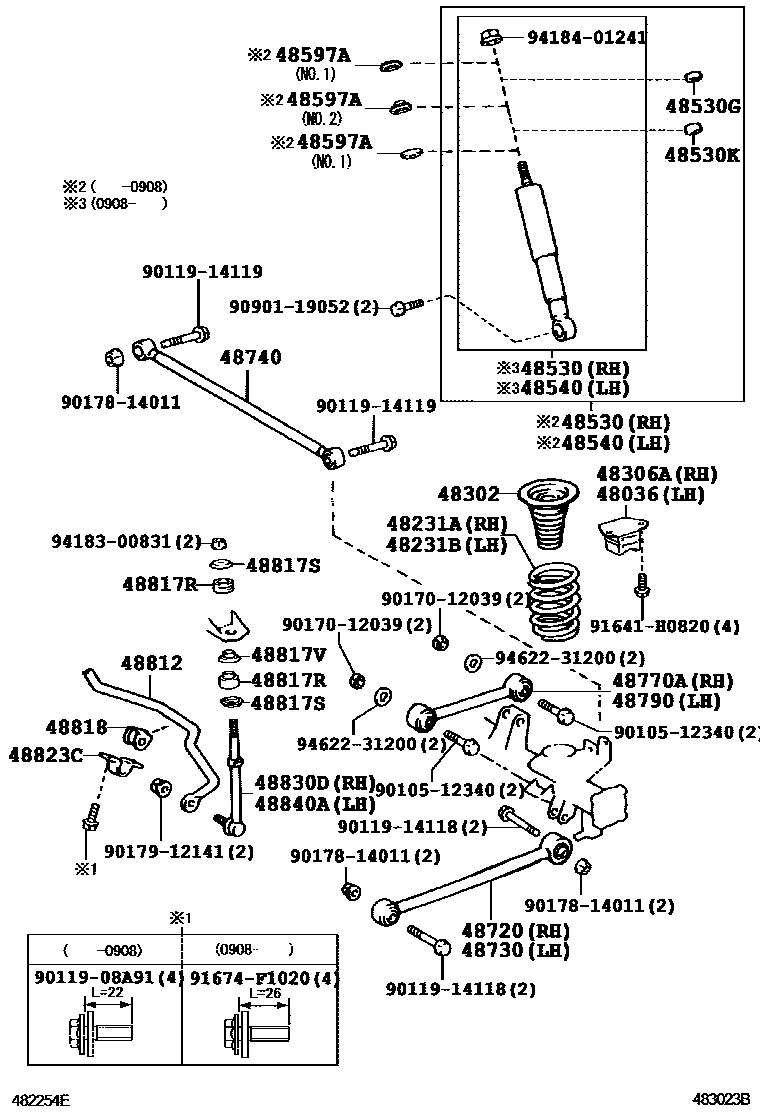

Parts diagram
48036BUMPER SUB-ASSY, REAR SPRING, LH
main48306-60180i200601-201011
48231ASPRING, COIL, REAR RH
main48231-35320i200601-200704
main48231-35321i200705-200908
main48231-35330i200601-200704
main48231-35331i200705-200908
main48231-35420i200908-201011
main48231-35430i201011-201407
48231BSPRING, COIL, REAR LH
main48231-35320i200601-200704
main48231-35321i200705-200908
main48231-35330i200601-200704
main48231-35331i200705-200908
main48231-35420i200908-201011
main48231-35430i200908-201011
48302SPRING SUB-ASSY, HOLLOW
main48302-35040×2i200601-201011
48306ABUMPER SUB-ASSY, REAR SPRING, RH
main48306-60180i200601-201011
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-80354i200601-200705
MARK 48530-35120
main48530-80460i200705-200908
MARK 48530-35121
main48530-80461i200705-200908
MARK 48530-35111
main48530-80538i200908-201011
MARK 48530-35220
main48530-80607i201203-201308
MARK 48530-35211
main48530-80608i201203-201407
MARK 48530-35221
main48530-80687i201308-201407
MARK 48530-35212
main48530-09P20i200707-200908
MARK 48530-04030,OFF ROAD PACKAGE
main48530-09S20supersedes 48530-80537i200908-201011
MARK 48530-04090,OFF ROAD PACKAGE
main48530-09U20supersedes 48530-80537i201011-201407
MARK 48530-0W040,OFF ROAD PACKAGE
main48530-80459i200707-200908
MARK 48530-35140,MEXICO SPEC
main48530-80539i201011-201101
MARK 48530-35230,MEXICO SPEC
main48530-80591i201101-201203
MARK 48530-35280,MEXICO SPEC
main48530-80610i201203-201308
MARK 48530-35281,MEXICO SPEC
main48530-80680i201308-201407
MARK 48530-35282,MEXICO SPEC
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
main48505-60090×2i201011-201407
main90948-01087×2i200601-200908
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
main48505-60100×2i200908-201011
main90948-01088×2i200601-200908
48540ABSORBER ASSY, SHOCK, REAR LH
main48530-80354i200601-200705
MARK 48530-35120
main48530-80460i200705-200908
MARK 48530-35121
main48530-80461i200705-200908
MARK 48530-35111
main48530-80538i201011-201203
MARK 48530-35220
main48530-80607i201203-201308
MARK 48530-35211
main48530-80608i201203-201407
MARK 48530-35221
main48530-80687i201308-201407
MARK 48530-35212
main48530-09P20i200707-200908
MARK 48530-04030,OFF ROAD PACKAGE
main48530-09S20supersedes 48530-80537i200908-201011
MARK 48530-04090,OFF ROAD PACKAGE
main48530-09U20supersedes 48530-80537i201011-201407
MARK 48530-0W040,OFF ROAD PACKAGE
main48530-80459i200707-200908
MARK 48530-35140,MEXICO SPEC
main48530-80539i201011-201101
MARK 48530-35230,MEXICO SPEC
main48530-80591i201101-201203
MARK 48530-35280,MEXICO SPEC
main48530-80610i201203-201308
MARK 48530-35281,MEXICO SPEC
main48530-80680i201308-201407
MARK 48530-35282,MEXICO SPEC
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
main48597-60070×4i200601-200908
NO.1
main48597-60080×2i200601-200908
NO.2
48720ARM ASSY, LOWER CONTROL, RH
main48720-35060i200601-200608
main48720-35061i200608-201011
48730ARM ASSY, LOWER CONTROL, LH
main48720-35060i200601-200608
main48720-35061i200608-201011
48740ROD ASSY, REAR LATERAL CONTROL
main48740-35040i200601-200908
main48740-60160i200908-201011
48770AARM ASSY, UPPER CONTROL, REAR RH
main48710-35050i200601-201011
48790ARM ASSY, UPPER CONTROL, REAR LH
main48710-35050i200601-201011
48812BAR, STABILIZER, REAR
main48812-35120i200601-200908
main48812-60220i200601-200908
main48812-60240i201011-201407
main48812-60300i200908-201011
48817RCUSHION, STABILIZER(FOR REAR)
main48817-30020×4i200601-200907
main48817-36011×4i200908-201011
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
main90948-02126×4i200601-201011
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
main90948-02127×2i201011-201407
48818BUSH, STABILIZER, REAR
main48815-14130×2i200601-200908
main48815-16160×2i200601-200908
main48818-60030×2i200908-201011
main48818-60050×2i200908-201011
48823CCOVER, REAR STABILIZER BRACKET
main48823-35060×2i200601-200908
main48823-60050×2i200908-201011
48830DLINK ASSY, REAR STABILIZER, RH
main48830-60030i200601-201011
48840ALINK ASSY, REAR STABILIZER, LH
main48830-60030i200601-201011
9010512340
main90105-12340
9011908A91
main90119-08A91
9011914118
main90119-14118
9011914119
main90119-14119
9017012039
main90170-12039
9017814011
main90178-14011
9017912141
main90179-12141
9090119052
main90901-19052
91641H0820
main91641-H0820
91674F1020
main91674-F1020
9418300831
main94183-00831
9418401241
main94184-01241
9462231200
main94622-31200

36 parts on this diagram · 1 diagram in section

REAR SPRING & SHOCK ABSORBER for Toyota FJ CRUISER

This section contains 36 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota FJ CRUISER. Key components include: BUMPER SUB-ASSY, REAR SPRING, LH, SPRING, COIL, REAR RH, SPRING, COIL, REAR LH, SPRING SUB-ASSY, HOLLOW, BUMPER SUB-ASSY, REAR SPRING, RH.
