Toyota FJ CRUISER — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
12371AINSULATOR, ENGINE MOUNTING, REAR
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
9011910740
main90119-10740
9011910811
main90119-10811
9017912127
main90179-12127
9091003001
main90910-03001
9155281030
main91552-81030
9162140814
main91621-40814
9167180814
main91671-80814
9415121001
main94151-21001

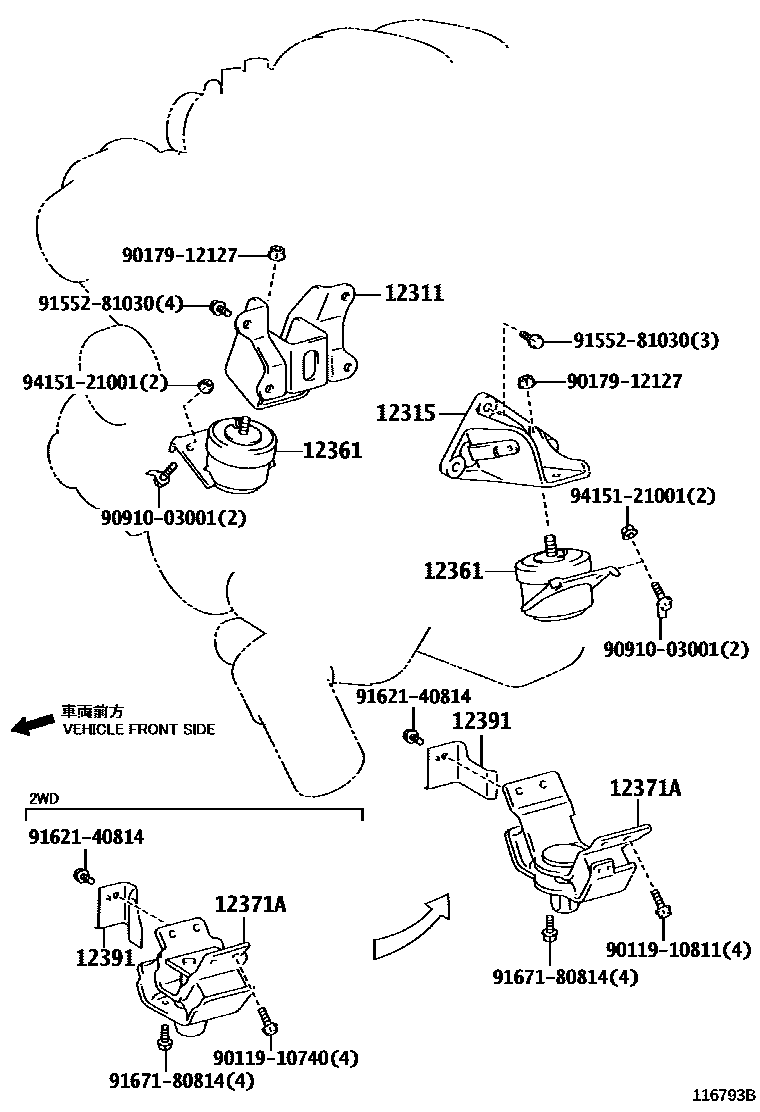

13 parts on this diagram · 1 diagram in section
MOUNTING for Toyota FJ CRUISER
This section contains 13 genuine Toyota parts for the MOUNTING system of the Toyota FJ CRUISER. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR, INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH.
