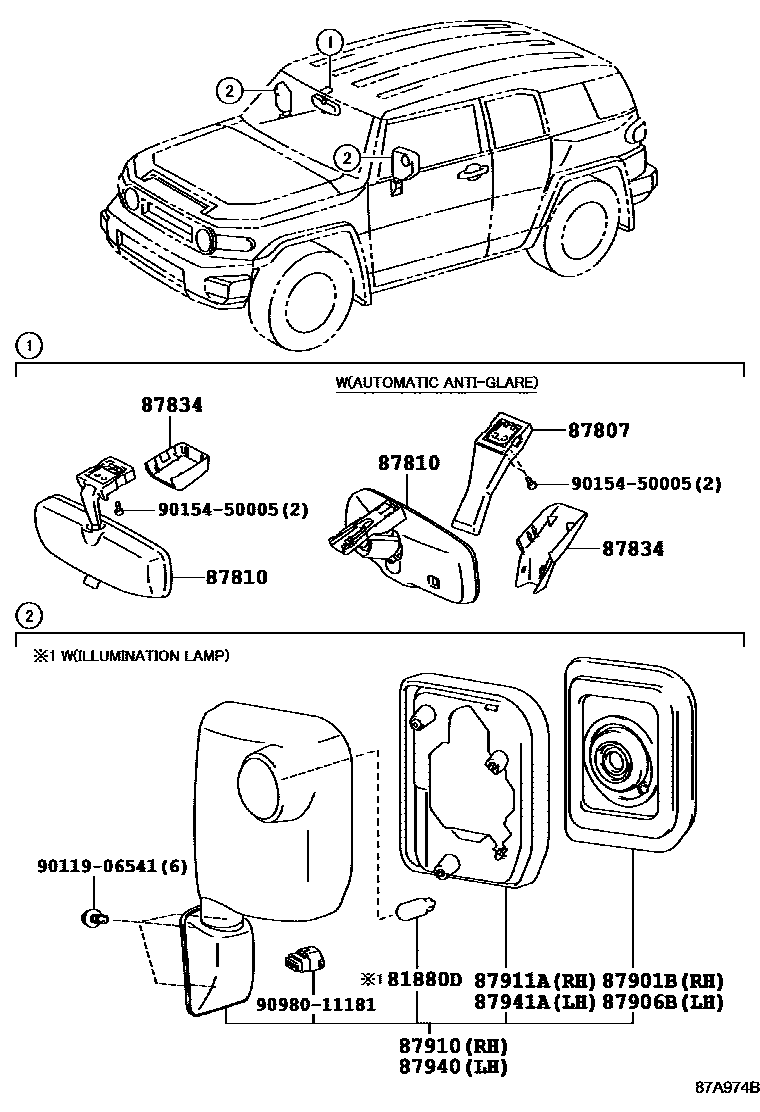

Toyota FJ CRUISER — MIRROR
81880DBULB, OUTER MIRROR LAMP ASSY
12V 5W
87807STAY SUB-ASSY, INNER REAR VIEW MIRROR
BACK MONITOR-WITH
87810MIRROR ASSY, INNER REAR VIEW
DK.GRAY,TRIM1#
BACK MONITOR-WITH
BACK MONITOR-WITH
GARAGE OPENER-WITH
GARAGE OPENER-WITH
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
DK.GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-REMORT CONTROL&ILUMINATION LAMP
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-REMORT CONTROL&ILUMINATION LAMP
NO PAINT REQ.,SPECIAL EDITION,BLACK
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-REMOTE CONTROL & ILLUMINATION LAMP,SILVER
87911AVISOR, OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-REMORT CONTROL&ILUMINATION LAMP
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-REMORT CONTROL&ILUMINATION LAMP
NO PAINT REQ.,SPECIAL EDITION,BLACK
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-REMOTE CONTROL & ILLUMINATION LAMP,SILVER
87941AVISOR, OUTER MIRROR, LH
9011906541
main90119-06541
9015450005
main90154-50005
9098011181
main90980-11181
13 parts on this diagram · 1 diagram in section
MIRROR for Toyota FJ CRUISER
This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota FJ CRUISER. Key components include: BULB, OUTER MIRROR LAMP ASSY, STAY SUB-ASSY, INNER REAR VIEW MIRROR, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
