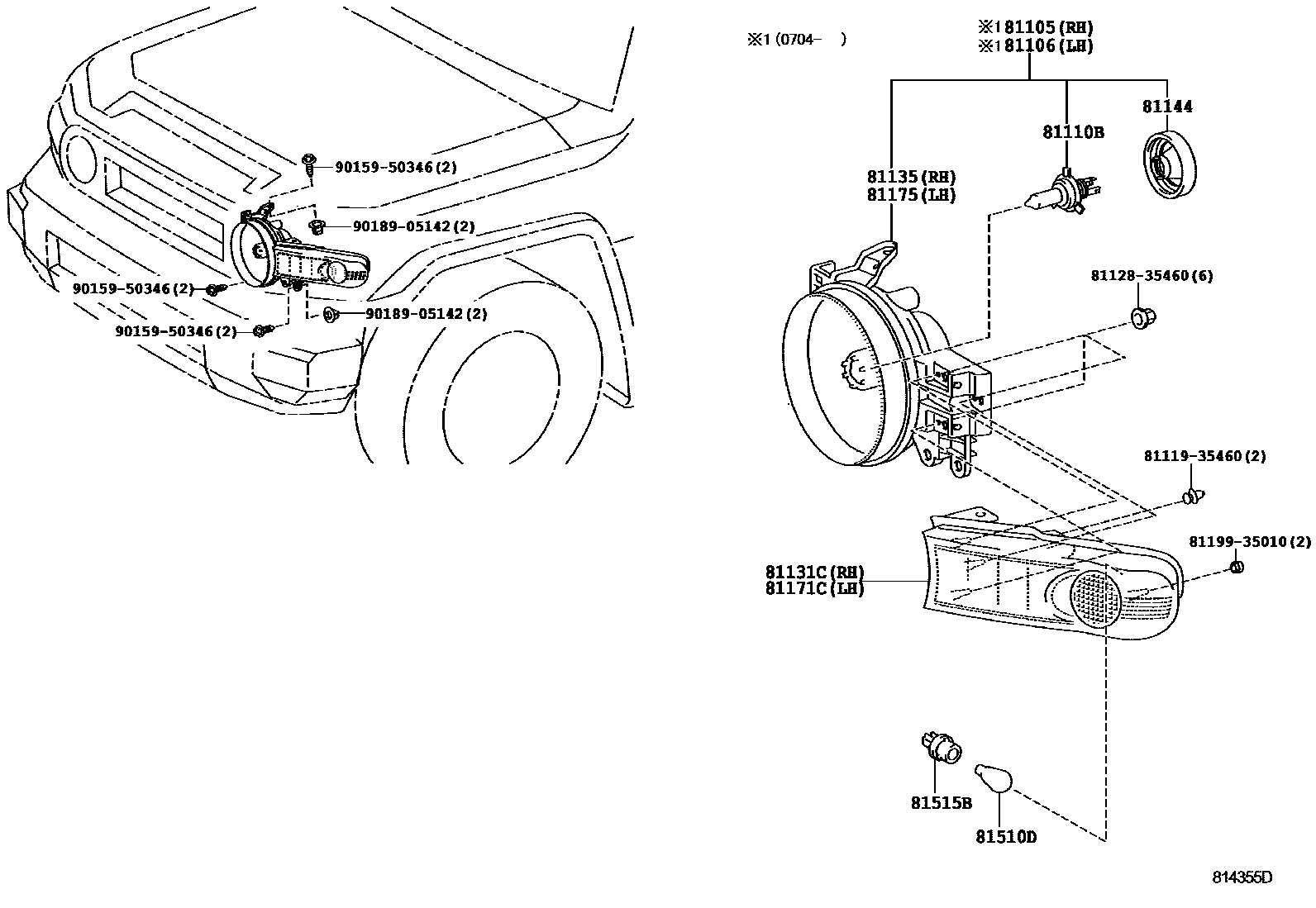

Toyota FJ CRUISER — HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-35464i200704-200909

main81105-35465i200909-201011

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-35444i200704-200909

main81106-35445i200909-201011

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2i200601-201011

12V 60/55W,HALOGEN

81131CLENS, FRONT TURN SIGNAL LAMP, RH

main81131-35460i200601-201011

main81131-35560i201108-201407

81135UNIT ASSY, HEADLAMP, RH

main81140-35460i200601-200607

main81140-35461i200608-200704

main81140-35464i200704-200909

main81140-35465i200909-201011

81144COVER, HEADLAMP, NO.1

main81139-52010×2i200601-201011

81171CLENS, FRONT TURN SIGNAL LAMP, LH

main81171-35440i200601-201011

main81171-35550i201108-201407

81175UNIT ASSY, HEADLAMP, LH

main81070-35440i200601-200607

main81070-35441i200608-200704

main81070-35444i200704-200909

main81070-35445i200909-201011

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-21210×2i200601-201011

12V 21/5W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81555-97223×2i200601-201011

8111935460SCREW, HEADLAMP

main81119-35460

8112835460NUT, HEADLAMP

main81128-35460

8119935010JOINT, HEADLAMP HOSE

main81199-35010

9015950346

main90159-50346

9018905142

main90189-05142

15 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota FJ CRUISER

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota FJ CRUISER. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, BULB(FOR HEADLAMP, NO.1), LENS, FRONT TURN SIGNAL LAMP, RH, UNIT ASSY, HEADLAMP, RH.
