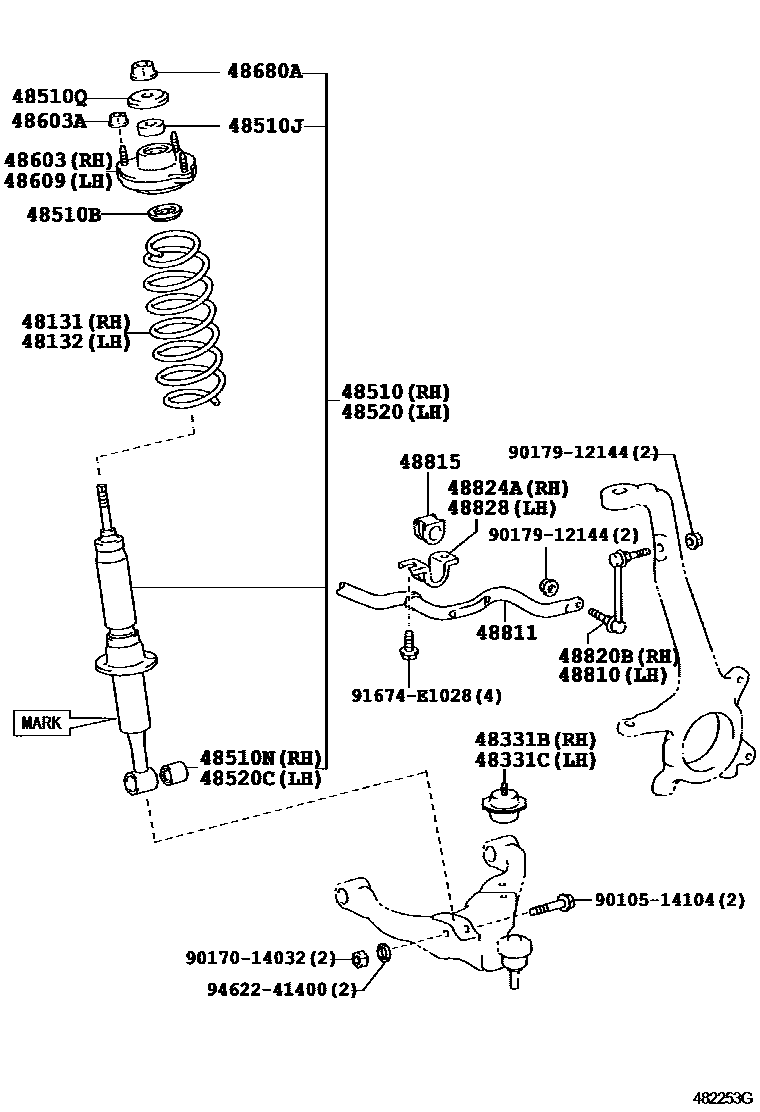

Toyota FJ CRUISER — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-35280
MARK 48510-35281
MARK 48510-35271
MARK 48510-35410
MARK 48510-04100,OFF ROAD PACKAGE
MARK 48510-04180,OFF ROAD PACKAGE
MARK 48510-35330,MEXICO SPEC
MARK 48510-35400,SPECIAL EDITION
MARK 48510-35420,MEXICO SPEC
MARK 48510-35510,MEXICO SPEC
MARK 48510-35511,MEXICO SPEC
MARK 48510-0W060,OFF ROAD PACKAGE
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
OFF ROAD PACKAGE
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-35280
MARK 48510-35281
MARK 48510-35271
MARK 48510-35410
MARK 48510-04100,OFF ROAD PACKAGE
MARK 48510-04180,OFF ROAD PACKAGE
MARK 48510-35330,MEXICO SPEC
MARK 48510-35400,SPECIAL EDITION
MARK 48510-35420,MEXICO SPEC
MARK 48510-35510,MEXICO SPEC
MARK 48510-35511,MEXICO SPEC
MARK 48510-0W060,OFF ROAD PACKAGE
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
OFF ROAD PACKAGE
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
9010514104
main90105-14104
9017014032
main90170-14032
9017912144
main90179-12144
91674E1028
main91674-E1028
9462241400
main94622-41400
26 parts on this diagram · 2 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota FJ CRUISER
This section contains 27 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota FJ CRUISER. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, BUMPER, FRONT SPRING, RH, BUMPER, FRONT SPRING, LH, ABSORBER ASSY, SHOCK, FRONT RH.
