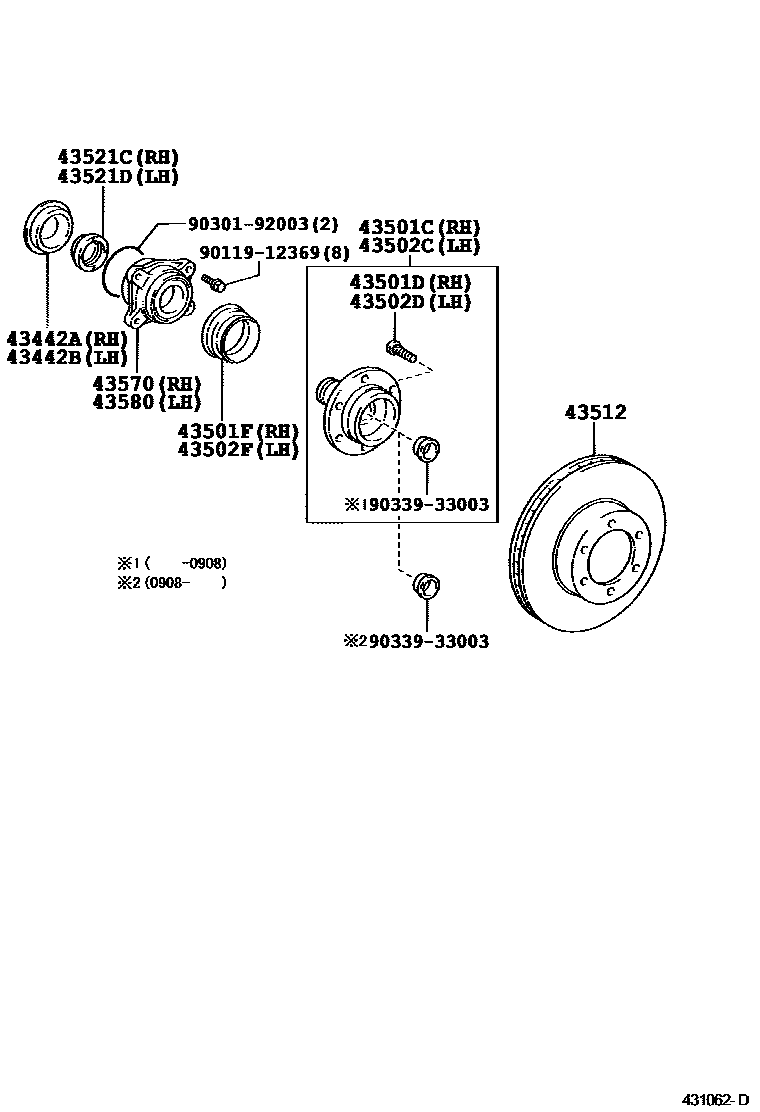

Toyota FJ CRUISER — FRONT AXLE HUB

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-35060i201011-201407

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-35060i201011-201407

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-35210i200601-200908

main43502-35250i200908-201011

main43502-60180i200601-200908

main43502-60200i200908-201006

main43502-60201i201007-201011

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6i201011-201407

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-96001i200601-201011

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-35210i200601-200908

main43502-35250i201011-201407

main43502-60180i200601-200908

main43502-60200i200908-201006

main43502-60201i201007-201011

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6i201011-201407

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-96001i201011-201407

43512DISC, FRONT

main43512-35321×2i200601-200708

main43512-35322×2i200709-201011

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-35010i201011-201407

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-35010i200601-201011

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-60010i200601-201011

main43570-60011i201109-201407

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-60010i200601-201011

main43570-60011i201109-201407

9011912369

main90119-12369

9030192003

main90301-92003

9033933003

main90339-33003

16 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota FJ CRUISER

This section contains 23 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota FJ CRUISER. Key components include: CAP, KNUCKLE GREASE RETAINER, INNER, RH, CAP, KNUCKLE GREASE RETAINER, INNER, LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), SEAL, OIL (FOR FRONT AXLE HUB RH).
