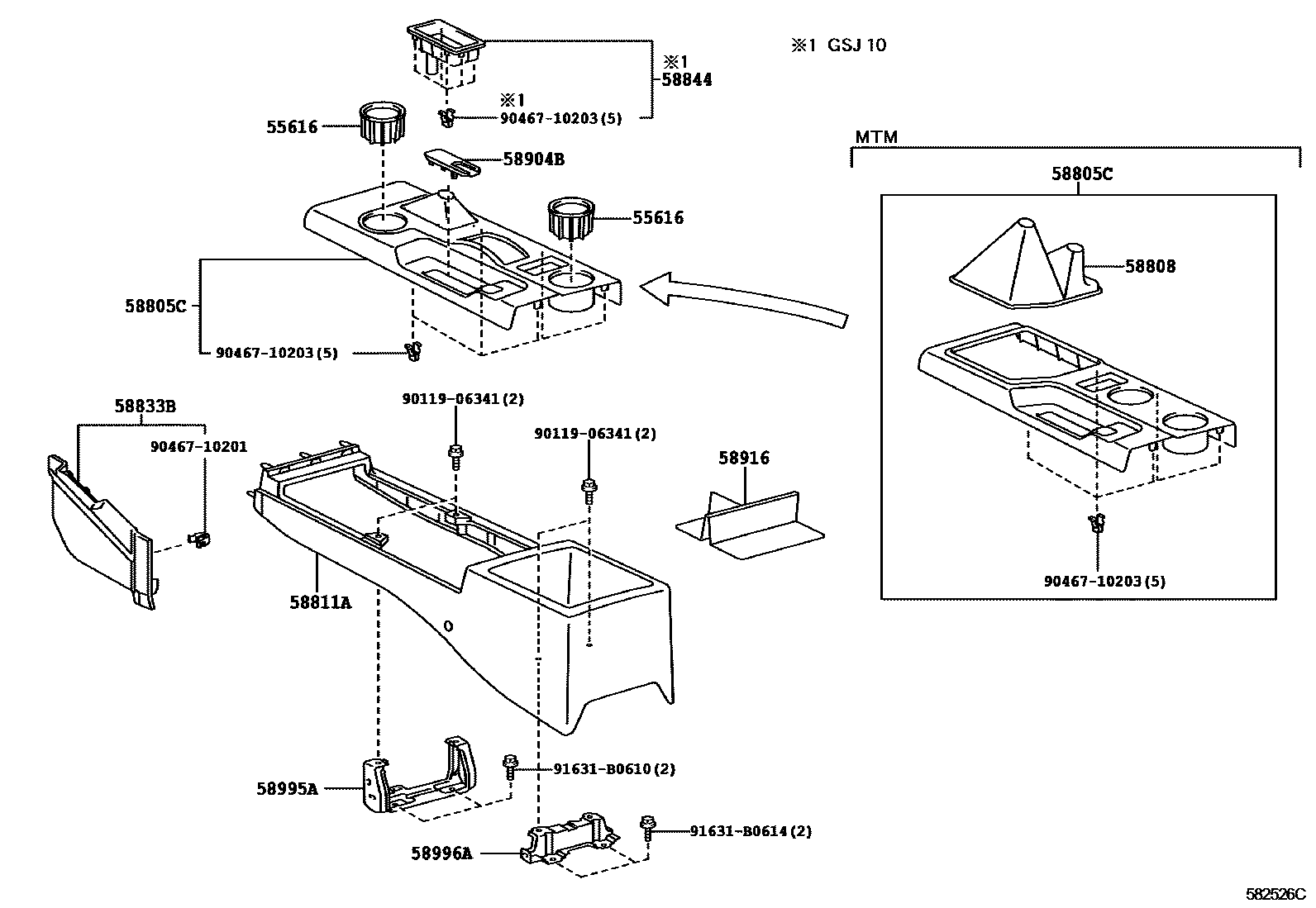

Toyota FJ CRUISER — CONSOLE BOX & BRACKET

55616DAMPER, INSTRUMENT PANEL CUP HOLDER

main55616-35010×2i201011-201407

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-35080-B0i200601-200611

DK.GRAY,TRIM1#

main58805-35081-B0i201011-201407

DK.GRAY,TRIM1#

main58805-35090-B0i200601-200704

DK.GRAY,TRIM1#

main58805-35091-B0i200705-201011

DK.GRAY,TRIM1#

main58805-35100-B0i201011-201407

DK.GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-35300-B0i201011-201407

DK.GRAY,TRIM1#

58811ABOX, CONSOLE, FRONT

main58802-35230-B0i201011-201407

DK.GRAY,TRIM1#

main58802-35240-B0i200601-201011

DK.GRAY,TRIM1#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-35060-B0i200601-201011

DK.GRAY,TRIM1#

58844BEZEL, CONSOLE BOX

main58844-35010i200601-201011

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-35050i200601-201011

58916MAT, BOX BOTTOM

main58916-35050i200601-201011

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-60060i200601-201011

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-60061i200601-201011

9011906341

main90119-06341

9046710201

main90467-10201

9046710203

main90467-10203

91631B0610

main91631-B0610

91631B0614

main91631-B0614

15 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota FJ CRUISER

This section contains 15 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota FJ CRUISER. Key components include: DAMPER, INSTRUMENT PANEL CUP HOLDER, PANEL SUB-ASSY, CONSOLE, UPPER REAR, COVER SUB-ASSY, SHIFTING HOLE, BOX, CONSOLE, FRONT, GARNISH, CONSOLE UPPER PANEL, NO.1.
