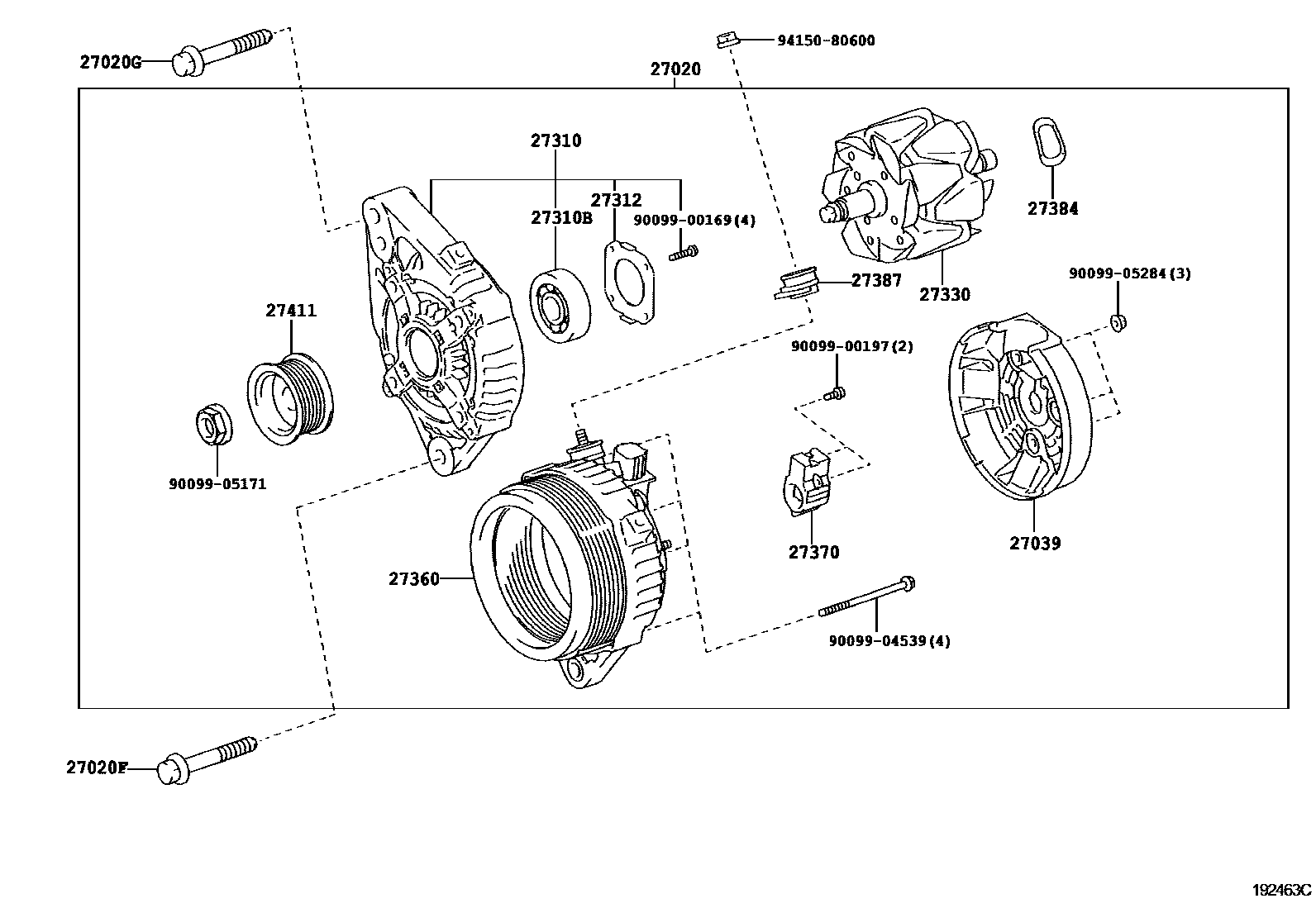

Toyota FJ CRUISER — ALTERNATOR

27020ALTERNATOR ASSY

main27060-31120i200601-200908

12V 100A

main27060-31180i200908-201011

12V 100A

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i201011-201407

main91642-81065i200601-200908

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81070i200908-201011

main91642-81065i200601-200908

27039COVER, ALTERNATOR REAR END

main27039-26170i200612-200908

main27039-27060i200601-200611

main27039-31390i200908-201011

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31210i200601-200908

main27310-31430i200908-201011

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i200601-200611

main90099-10223i200612-201011

27312PLATE, RETAINER

main27312-72100i201011-201407

27330ROTOR ASSY, ALTERNATOR

main27330-30070i200601-201011

27360COIL ASSY, ALTERNATOR

main27360-31320i200601-200908

main27360-31390i200908-201011

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i200601-201011

27384WASHER

main27384-50030i200601-201011

27387INSULATOR, TERMINAL

main27387-20130i200601-201011

27411PULLEY, ALTERNATOR

main27411-31210i200601-200908

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9415080600

main94150-80600

19 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota FJ CRUISER

This section contains 25 genuine Toyota parts for the ALTERNATOR system of the Toyota FJ CRUISER. Key components include: ALTERNATOR ASSY, BOLT, NO.1(FOR ALTERNATOR), BOLT, NO.2(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR.
