Toyota FJ CRUISER — SIDE WINDOW

62730BWINDOW ASSY, QUARTER, REAR RH

main62730-35152supersedes 62730-35163i201011-201307

main62730-35153i201308-201801

62740BWINDOW ASSY, QUARTER, REAR LH

main62740-35152supersedes 62740-35163i201011-201307

main62740-35153i201308-201801

62761JRETAINER, QUARTER WINDOW GLASS, FRONT RH

main62761-35010i201011-201801

62762JRETAINER, QUARTER WINDOW GLASS, FRONT LH

main62761-35010i201011-201801

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-35010i201011-201801

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-35010i201011-201801

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-35010i201011-201801

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-35010i201011-201801

62786DSPACER, QUARTER WINDOW GLASS, NO.2

main62786-35020×2i201011-201801

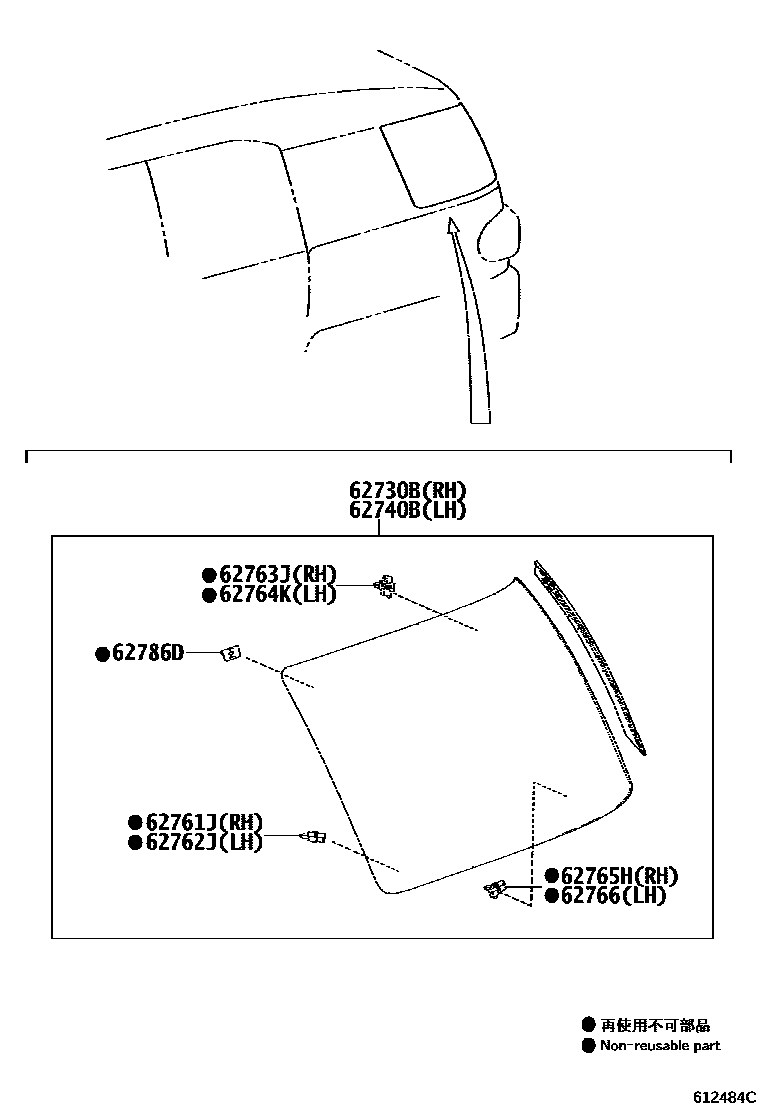

9 parts on this diagram · 1 diagram in section

SIDE WINDOW for Toyota FJ CRUISER

This section contains 9 genuine Toyota parts for the SIDE WINDOW system of the Toyota FJ CRUISER. Key components include: WINDOW ASSY, QUARTER, REAR RH, WINDOW ASSY, QUARTER, REAR LH, RETAINER, QUARTER WINDOW GLASS, FRONT RH, RETAINER, QUARTER WINDOW GLASS, FRONT LH, RETAINER, QUARTER WINDOW GLASS, UPPER.
