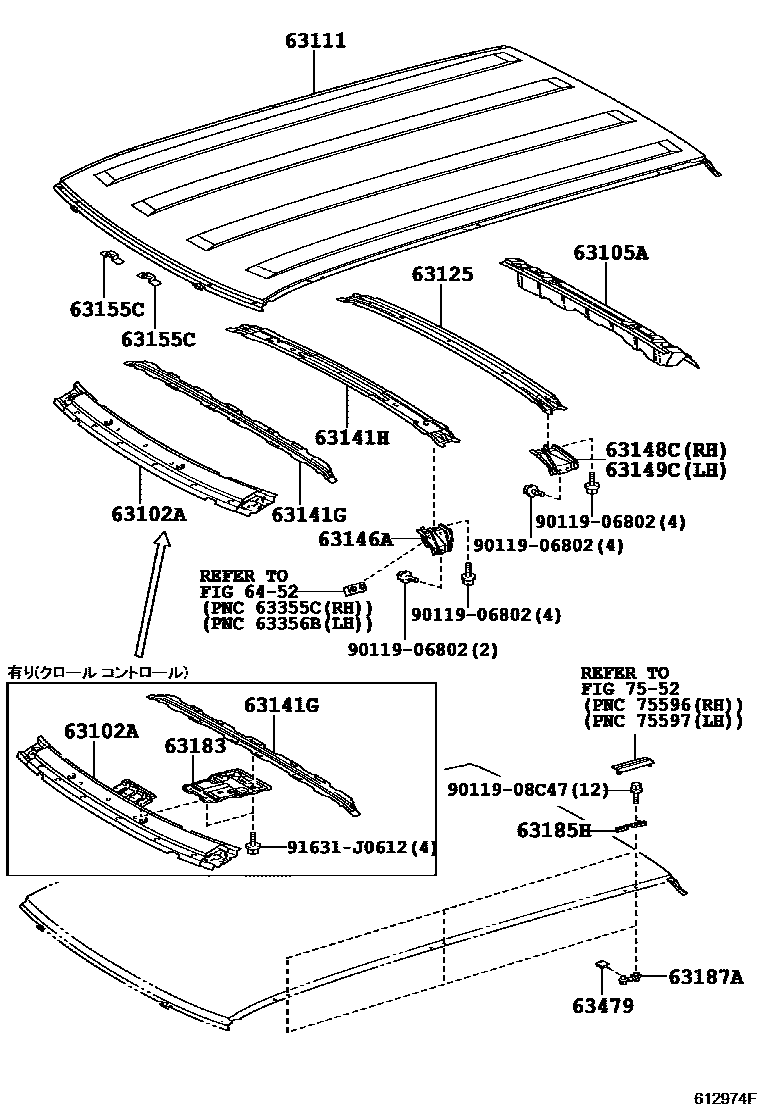

Toyota FJ CRUISER — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-35050i201011-201801

main63102-35080i201208-201801

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-35082i201011-201801

63111PANEL, ROOF

main63111-35280i201011-201801

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-35030i201011-201801

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-35050i201011-201801

main63104-35020i201208-201801

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-35020i201011-201801

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-35010×2i201011-201801

63148CREINFORCEMENT, ROOF PANEL SIDE, RH

main63148-35010i201011-201801

63149CREINFORCEMENT, ROOF PANEL SIDE, LH

main63149-35010i201011-201801

63155CRETAINER, ROOF PANEL SUPPORT

main63155-35010×2i201011-201801

63183BRACKET, ROOF CONSOLE, FRONT

main63183-35010i201208-201801

63185HBRACKET, ROOF RACK

main63185-42020×6i201011-201801

63187ABRACKET, ROOF RACK, REAR

main63187-35020×6i201011-201801

63479RETAINER, ROOF INNER RACK

main63479-42010×6i201011-201801

6452ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-52

7552MOULDING

→ Go to FIG 75-52

9011906802

main90119-06802

9011908C47

main90119-08C47

91631J0612

main91631-J0612

19 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK PANEL for Toyota FJ CRUISER

This section contains 19 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota FJ CRUISER. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, REINFORCEMENT, ROOF PANEL, NO.2, REINFORCEMENT, ROOF PANEL, NO.1.
