Toyota FJ CRUISER — MOUNTING

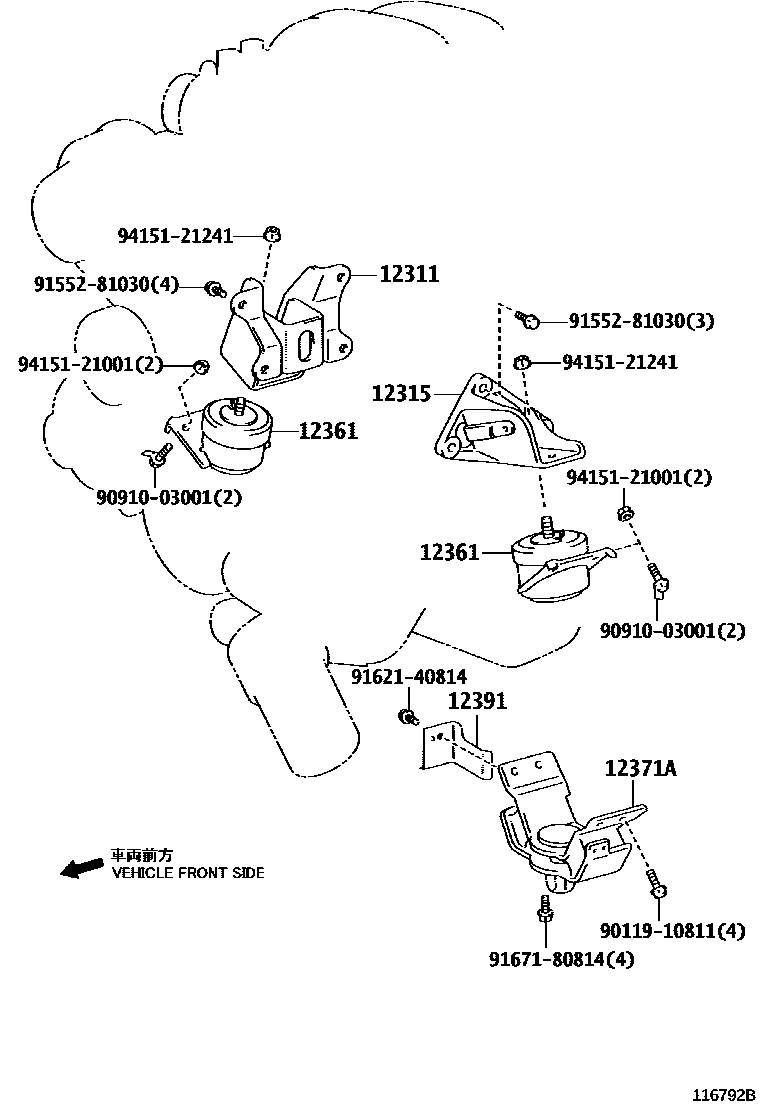

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31021i201011-201801

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31051i201011-201801

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31290×2i201011-201801

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31050i201011-201111

main12371-31051i201111-201801

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-31020i201011-201801

9011910811

main90119-10811

9091003001

main90910-03001

9155281030

main91552-81030

9162140814

main91621-40814

9167180814

main91671-80814

9415121001

main94151-21001

9415121241

main94151-21241

12 parts on this diagram · 1 diagram in section

MOUNTING for Toyota FJ CRUISER

This section contains 12 genuine Toyota parts for the MOUNTING system of the Toyota FJ CRUISER. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR, INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH.
