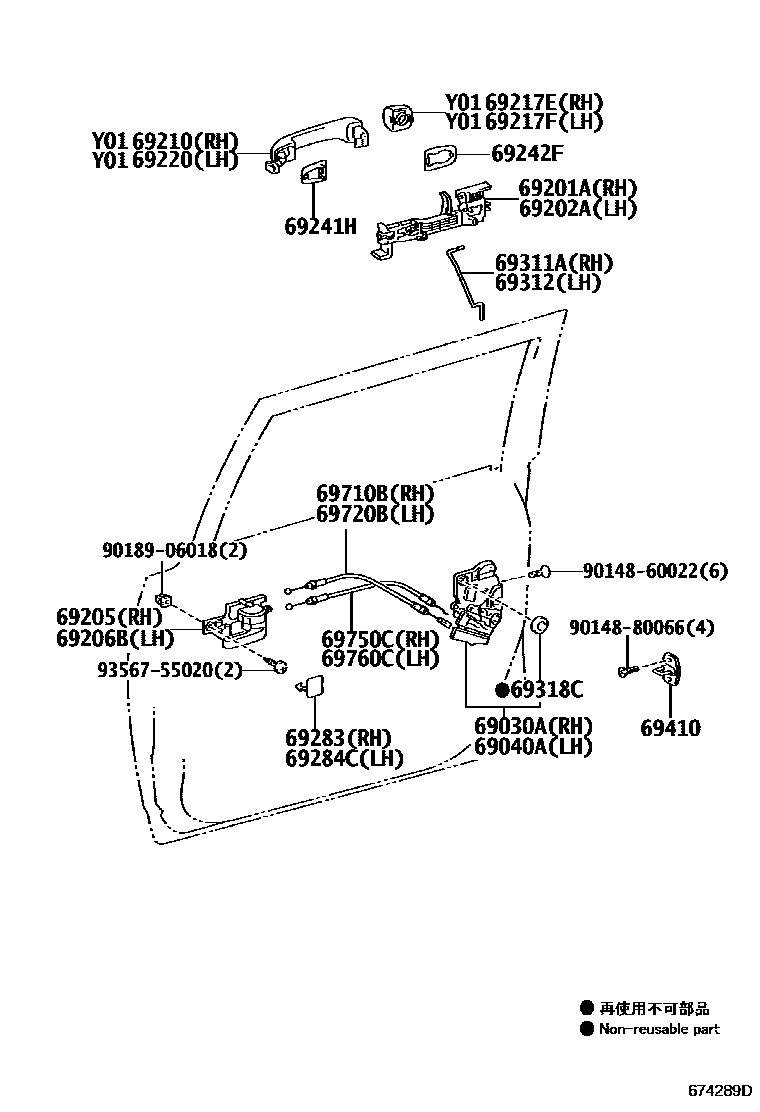

Toyota FJ CRUISER — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SILVER ME.,058 ,2JU ,2JV ,2JX ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS ,3L5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SILVER ME.,058 ,2JU ,2JV ,2JX ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS ,3L5
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SILVER ME.,058 ,2JU ,2JV ,2JX ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS ,3L5
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SILVER ME.,058 ,2JU ,2JV ,2JX ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS ,3L5
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014860022
main90148-60022
9014880066
main90148-80066
9018906018
main90189-06018
9356755020
main93567-55020
26 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota FJ CRUISER
This section contains 26 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota FJ CRUISER. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
