Toyota FJ CRUISER — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 1/2 0007 1INSTRUMENT PANEL 1/2 0008 1INSTRUMENT PANEL 2/2 0009 1INSTRUMENT PANEL 2/2 0010 1STEERING 0011 1STEERING 0012 1STEERING 0013 1DOOR & ROOF 0014 1FLOOR & BACK DOOR

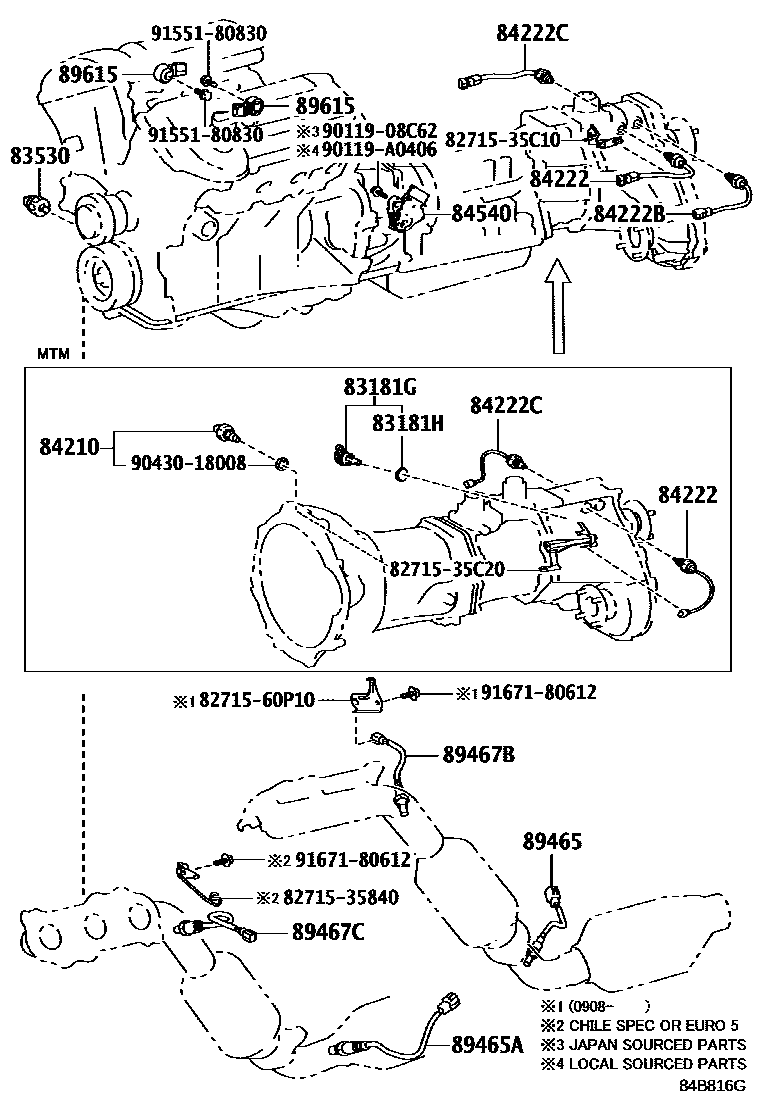

83181GSENSOR, SPEEDOMETER

main83181-12020iGSJ15..MTM200707-201011

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iGSJ15..MTM200707-201011

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iGSJ15201011

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iGSJ15..MTM201011-201206

main84210-52050iGSJ15..MTM201206-201712

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35080iGSJ15200707-201011

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35090iGSJ15..ATM200707-201011

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35110iGSJ15..ATM200707-201011

main84222-60100iGSJ15..MTM200707-201011

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGSJ15..ATM201604

(L)

main84540-71010iGSJ15..ATM201508-201604

89465SENSOR, OXYGEN

main89465-60320iGSJ15201011

main89465-35770iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

main89465-35790iGSJ15..GCC202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS, AI)

89465ASENSOR, OXYGEN NO.2

main89465-60330iGSJ15200707-200908

MARK=89465-60330

main89465-60430iGSJ15201011

main89465-35780iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

main89465-35800iGSJ15..GCC202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS, AI)

89467BSENSOR, AIR FUEL RATIO

main89467-35110iGSJ15200707-200908

MARK=89467-35110

main89467-60060iGSJ15201011

main89467-35120iGSJ15..GCC202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS, AI)

main89467-52110iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-35110iGSJ15200707-200908

MARK=89467-35110

main89467-60060iGSJ15200908-201011

MARK=89467-60060

main89467-35130iGSJ15..GCC202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS, AI)

main89467-60100iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGSJ15..ATM201011

8271535840BRACKET,WIRING HARNESS CLAMP

main82715-35840

8271535C10BRACKET,WIRING HARNESS CLAMP

main82715-35C10

8271535C20BRACKET,WIRING HARNESS CLAMP

main82715-35C20

8271560P10BRACKET,WIRING HARNESS CLAMP

main82715-60P10

9011908C62

main90119-08C62

90119A0406

main90119-A0406

9043018008

main90430-18008

9155180830

main91551-80830

9167180612

main91671-80612

22 parts on this diagram · 14 diagrams in section
